Sub Throttle Position Sensor Signal

(Sub-)Throttle Position Sensor Circuit

CIRCUIT DESCRIPTION
The throttle position sensor detects the throttle valve opening angle and sends signals to the ECU.

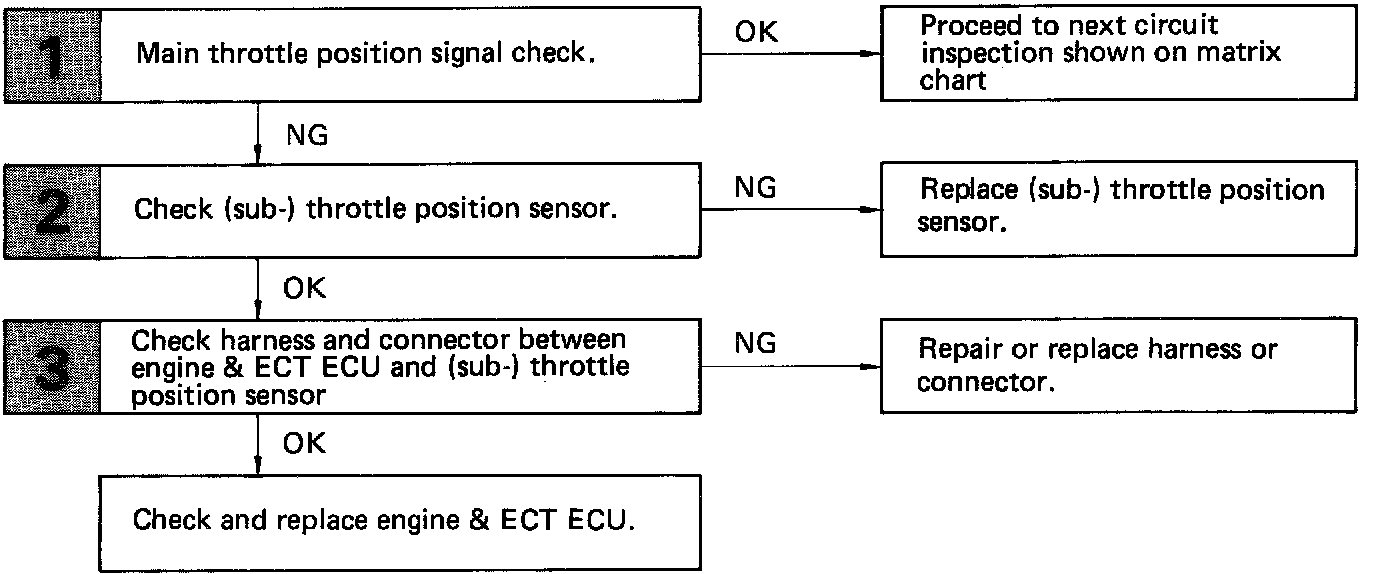

DIAGNOSTIC CHART





WIRING DIAGRAM

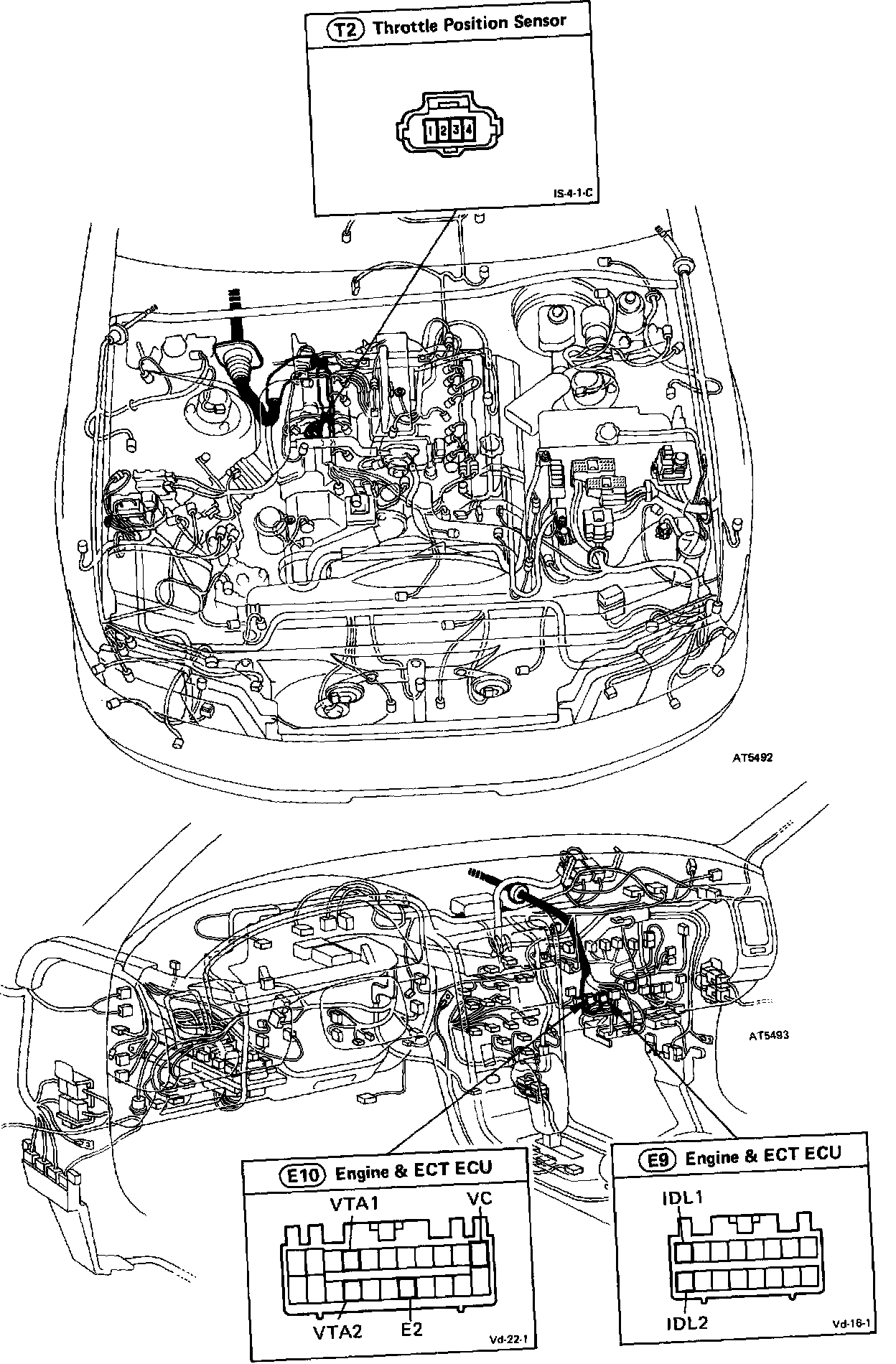

WIRING ROUTING

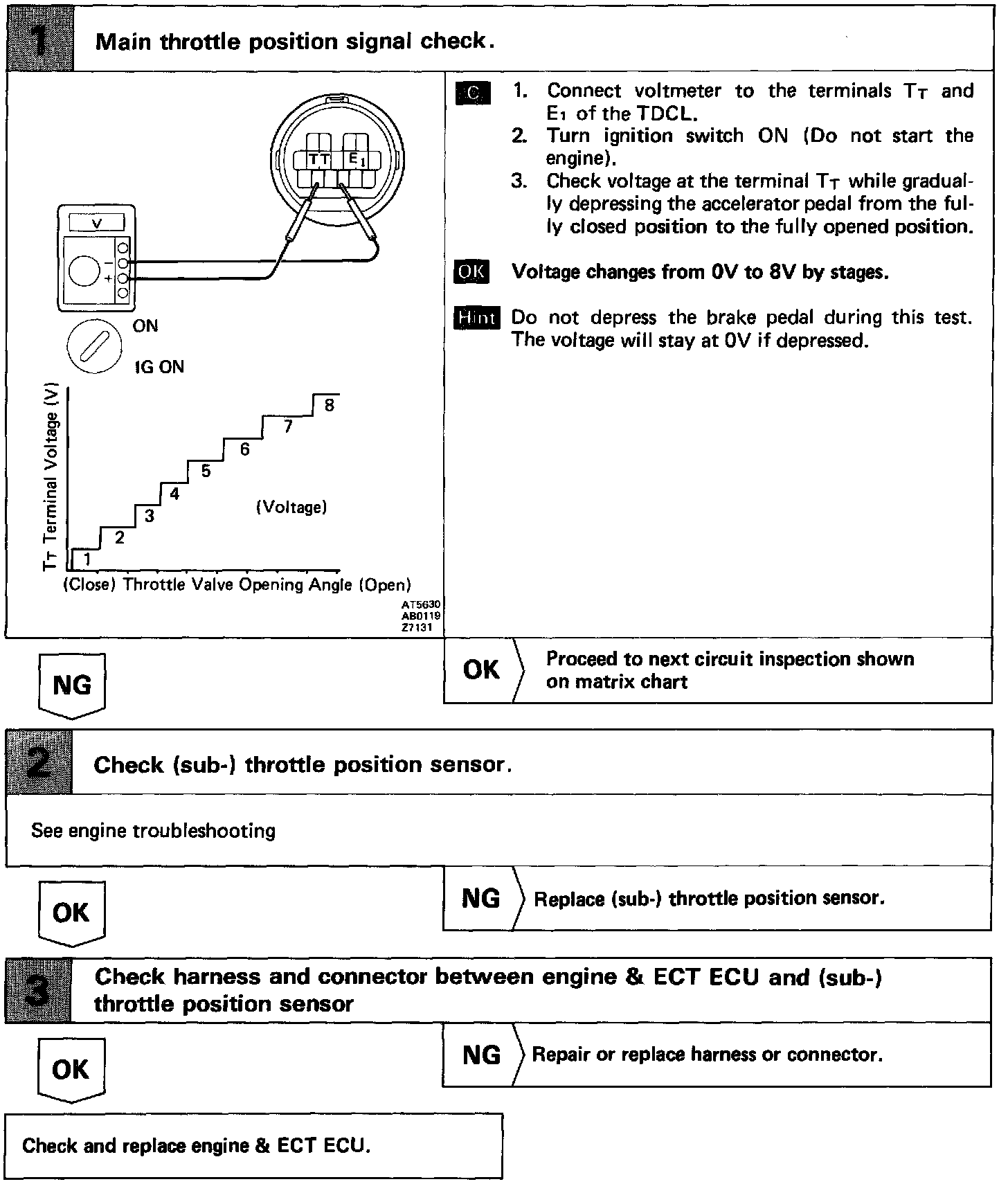

INSPECTION PROCEDURE
