Left Side

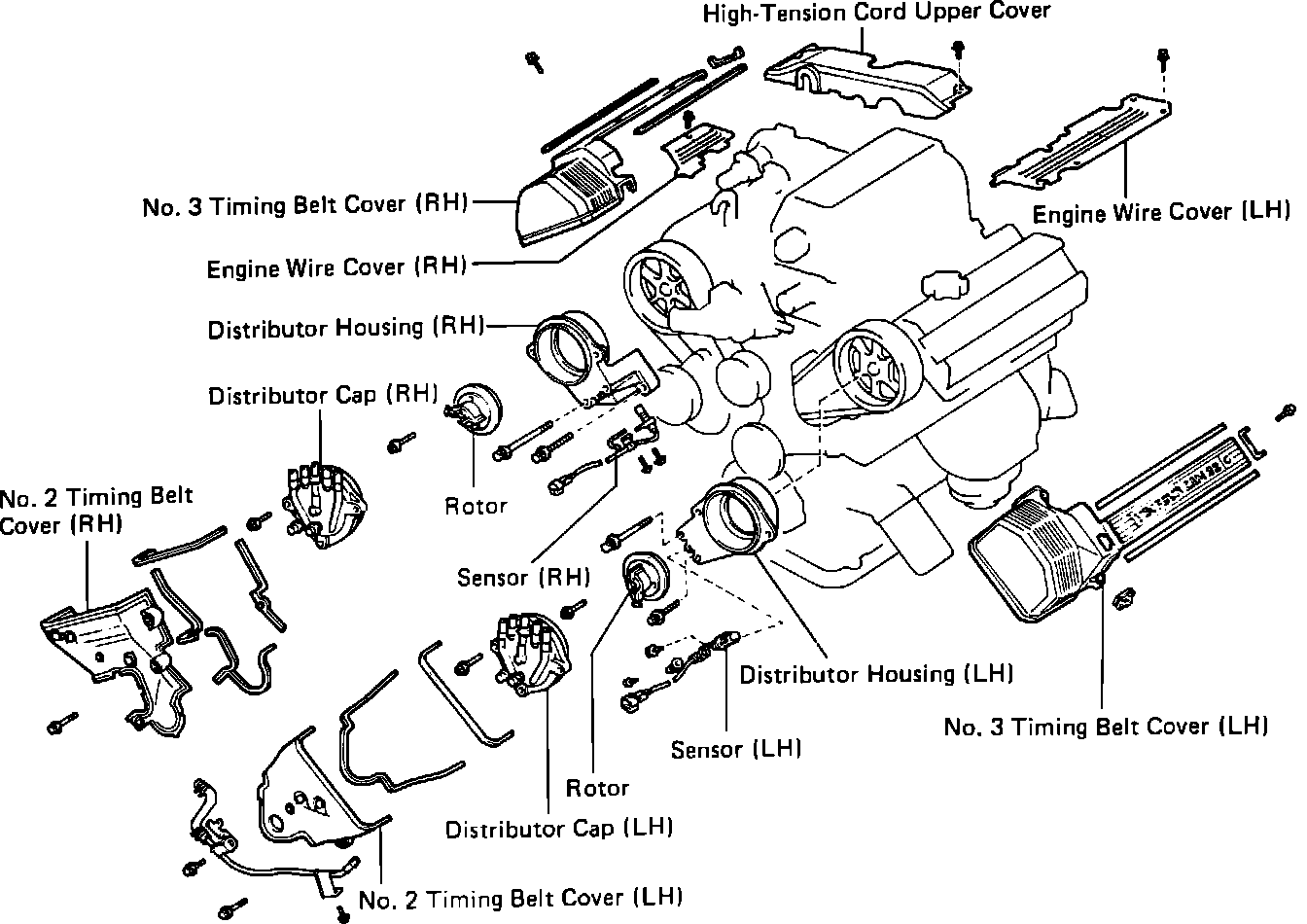

Distributor Replacement:

Left Side Ignition Wire Cover:

Removal
- Remove left side wire cover.

No. 3 Timing Belt Cover:

- Remove junction box cover.
- Remove No. 3 timing belt cover.
- Disconnect ignition wires from spark plugs.
- Remove spark plugs.



Installation
- Gap new spark plugs to 0.043 in. (1.1 mm).
- Install spark plugs.

Torque value - 13 ft.lb (18 Nm)

- Reattach ignition wires.
- Reinstall covers.
