Ground Circuit Continuity

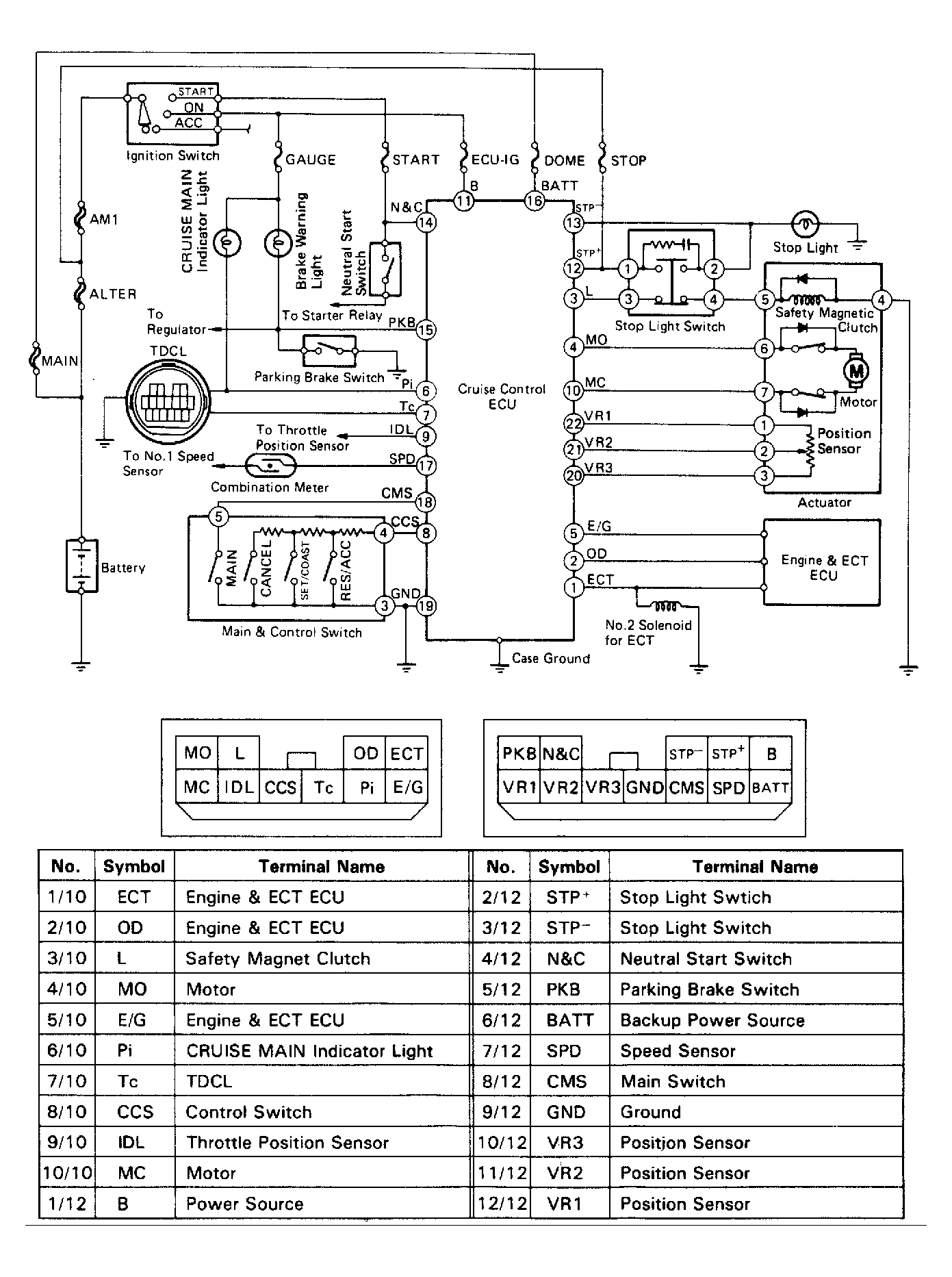

Check resistance between GND (ground) terminal of cruise control ECU wiring harness connector and ground. See Figure. Resistance should be zero ohms. If continuity is correct, go to ECU-IG FUSE. If continuity is not correct, repair or replace wiring harness or connector(s).
