Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |
|---|---|---|

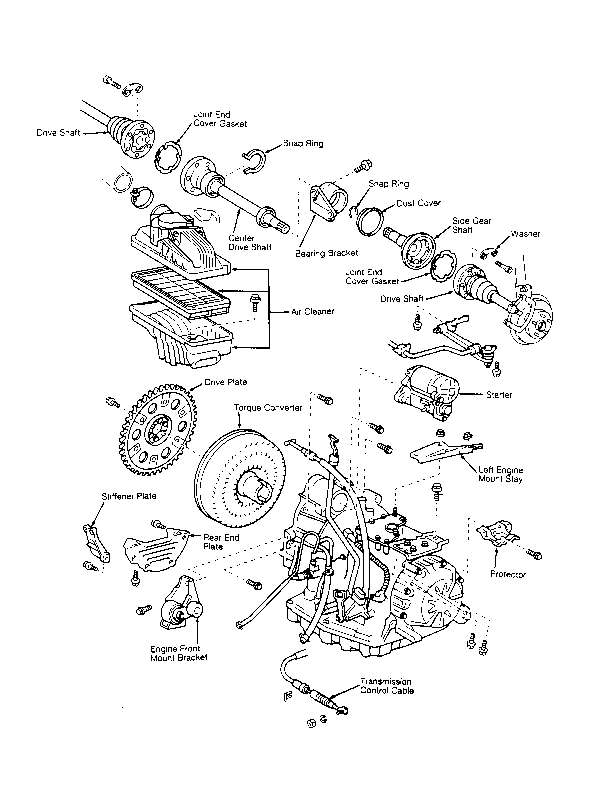

| ES250 | ||
| Ball Joint Bolt | 83 (113) | |
| Bearing Bracket Bolt | 47 (64) | |
| Drive Plate Bolt | 20 (27) | |
| Drive Shaft-to-Center Drive Shaft Bolt | 48 (65) | |
| Engine Stiffener Bolt | 27 (37) | |
| Front Engine Mount Bolt | 57 (77) | |
| Front Exhaust Pipe Nut | 46 (62) | |
| Left Mount Stay-to-Mount Nut | 38 (52) | |
| Left Mount Stay-to-Transaxle Nut | 15 (21) | |
| Left Mount-to-Transaxle Bolt | 38 (52) | |
| Throttle Cable Nut | 11 (15) | |

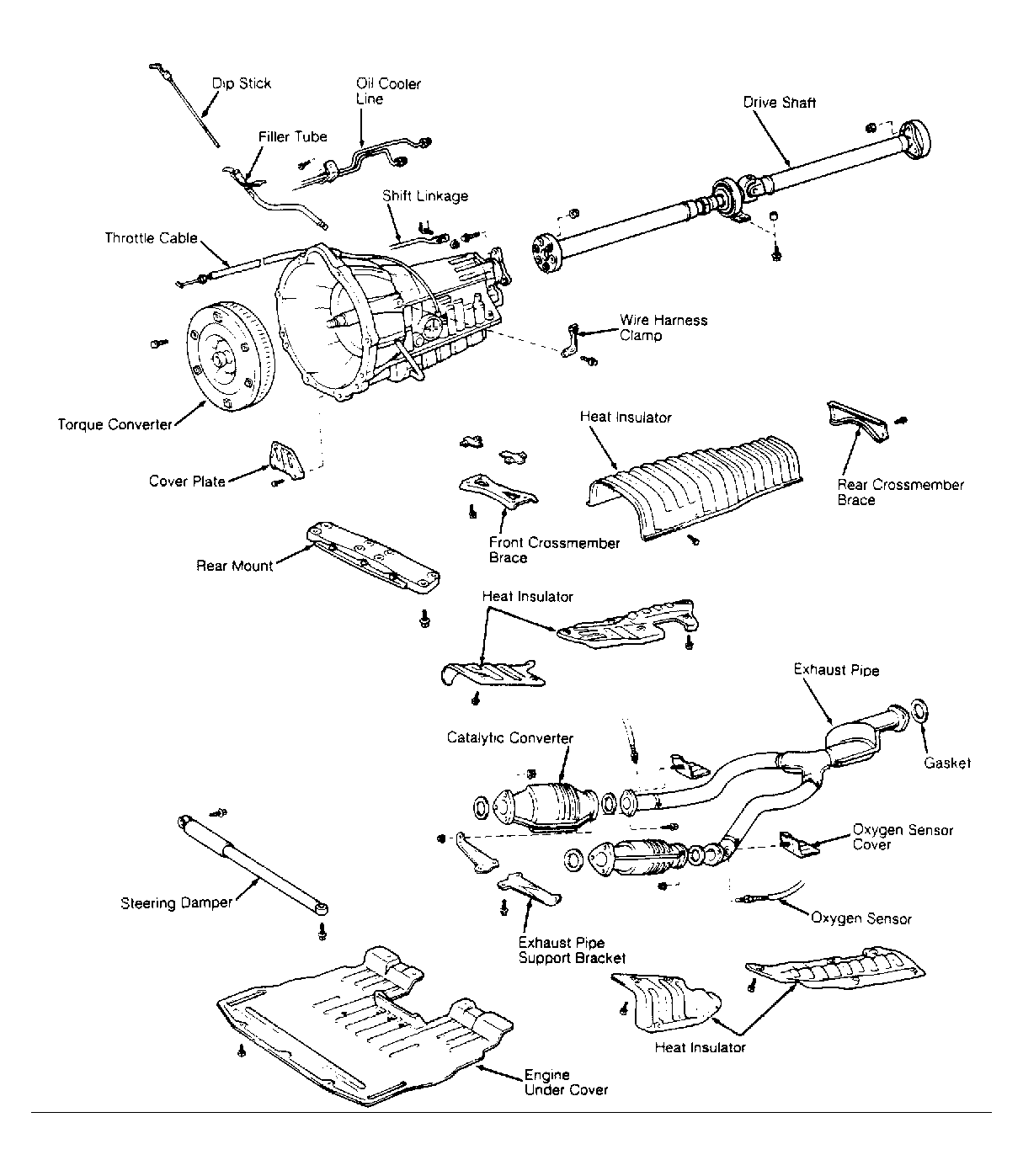

| LS400 | ||
| Drive Plate Bolt | 25 (33) | |
| Drive Shaft Center Bearing Bolt | 27 (37) | |
| Drive Shaft-to-Transmission Nut | 58 (79) | |
| Oil Cooler Line Flare Nut | 25 (34) | |
| Rear Mount | 18 (25) | |
| Steering Damper | 19 (26) | |
