Mechanical Components

For mechanical component locations, refer to Fig 1.

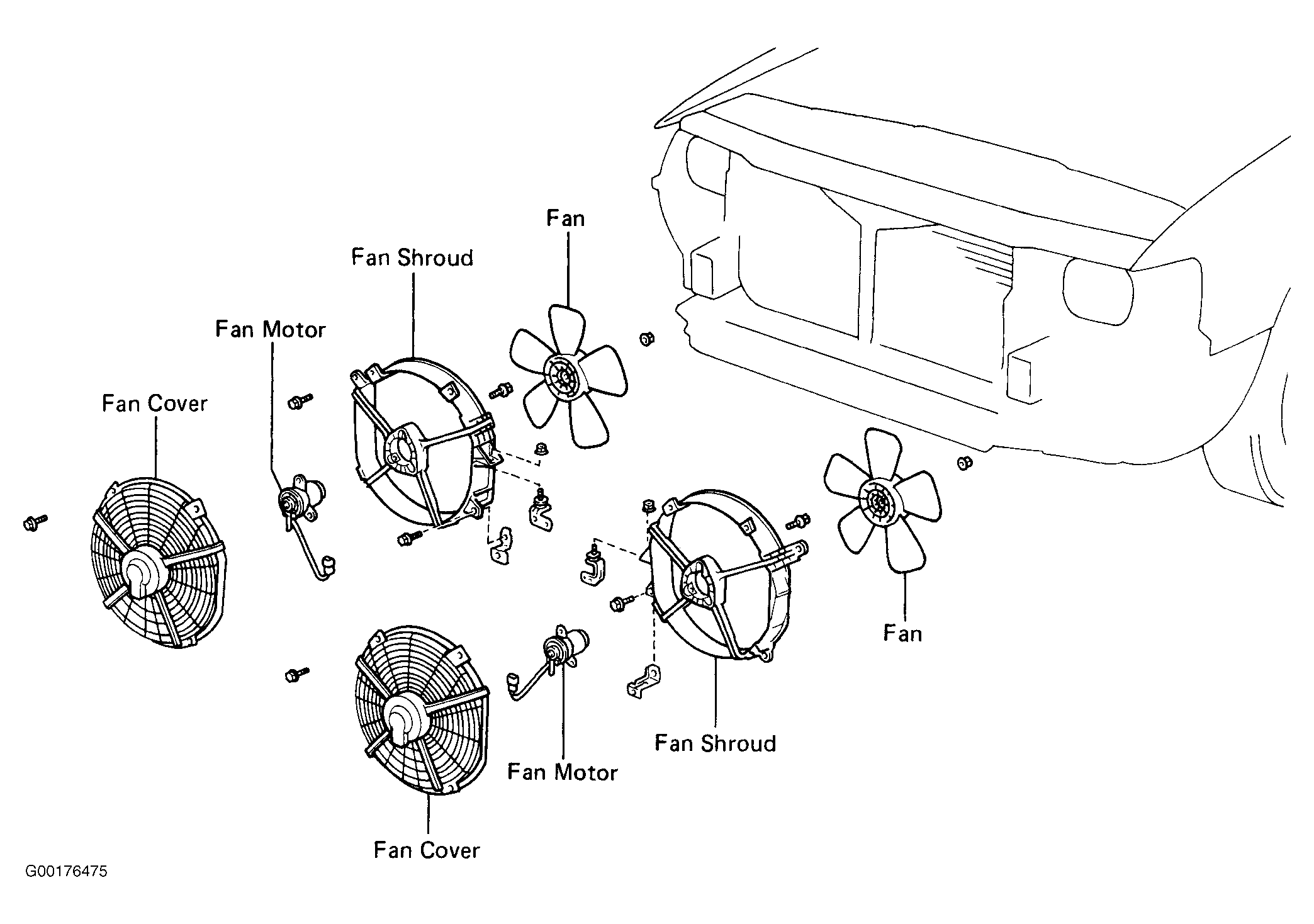

Fig 1: Identifying Cooling Fan System Mechanical Components
G00176475Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
