Connector Identification

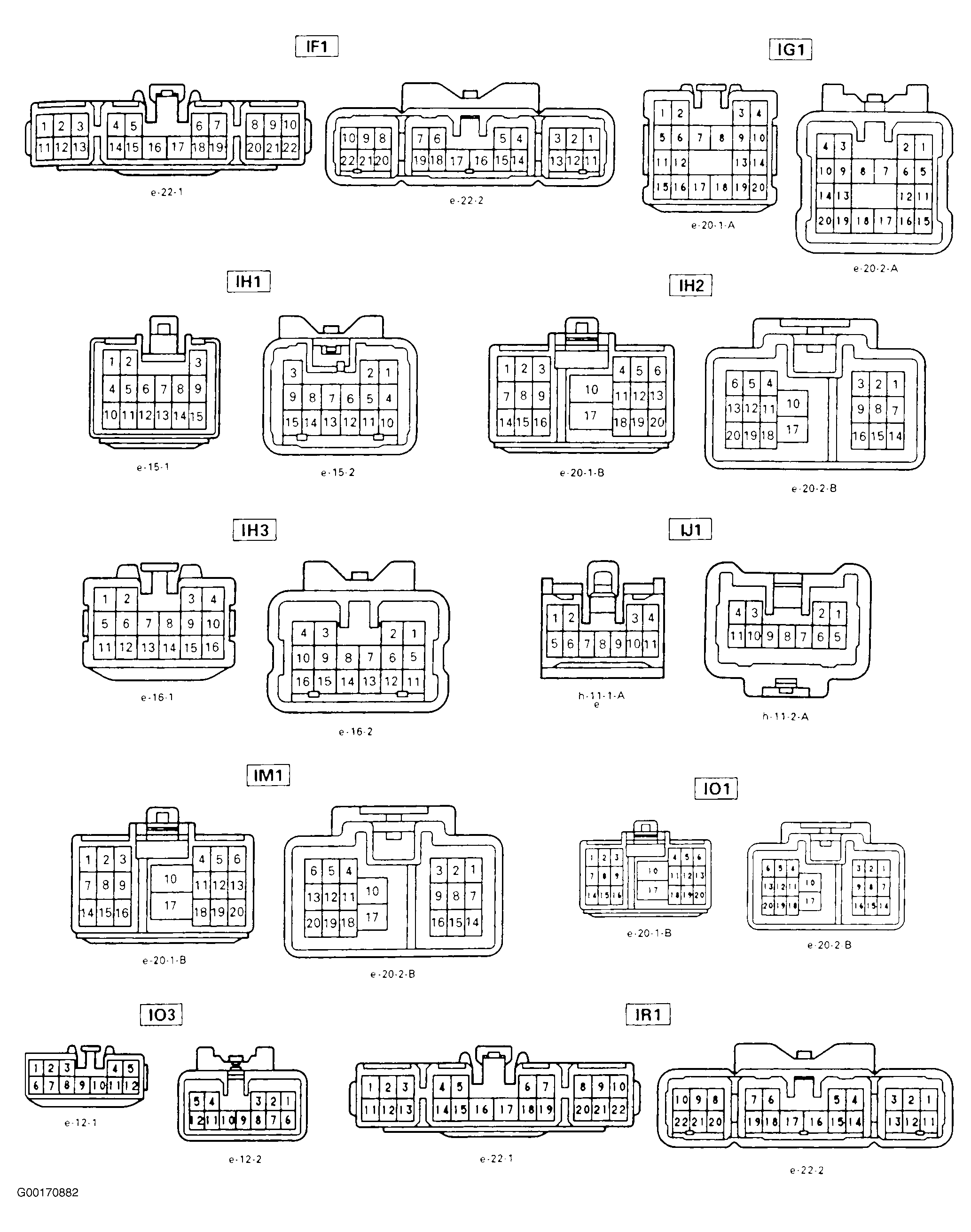

Fig 1: Connector Views Of Theft Deterrent System
G00170882Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 2: Connector Location Theft Deterrent System (1 Of 5)
G00170883Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

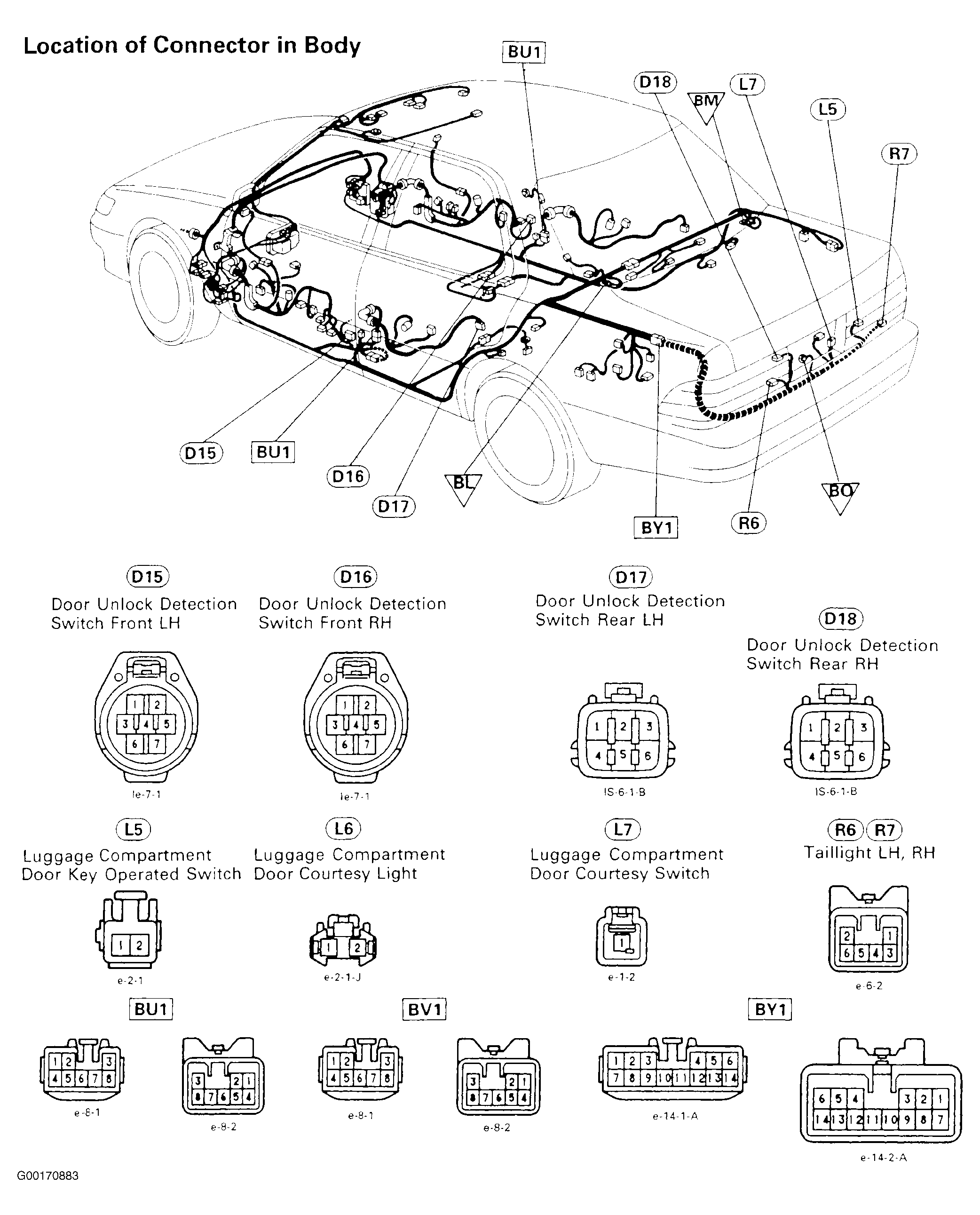

Fig 3: Connector Location Theft Deterrent System (2 Of 5)
G00170884Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

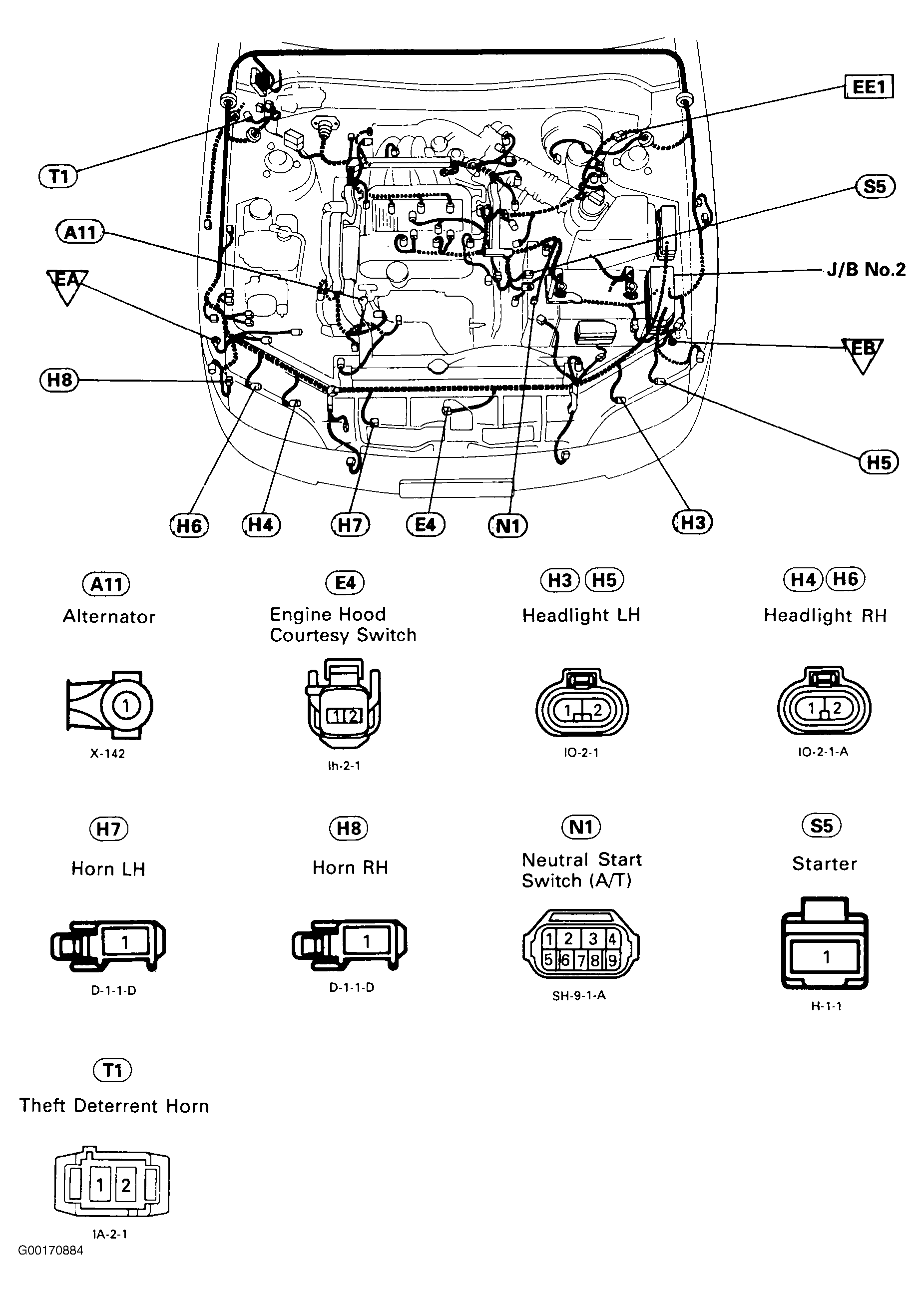

Fig 4: Connector Location Theft Deterrent System (3 Of 5)
G00170885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

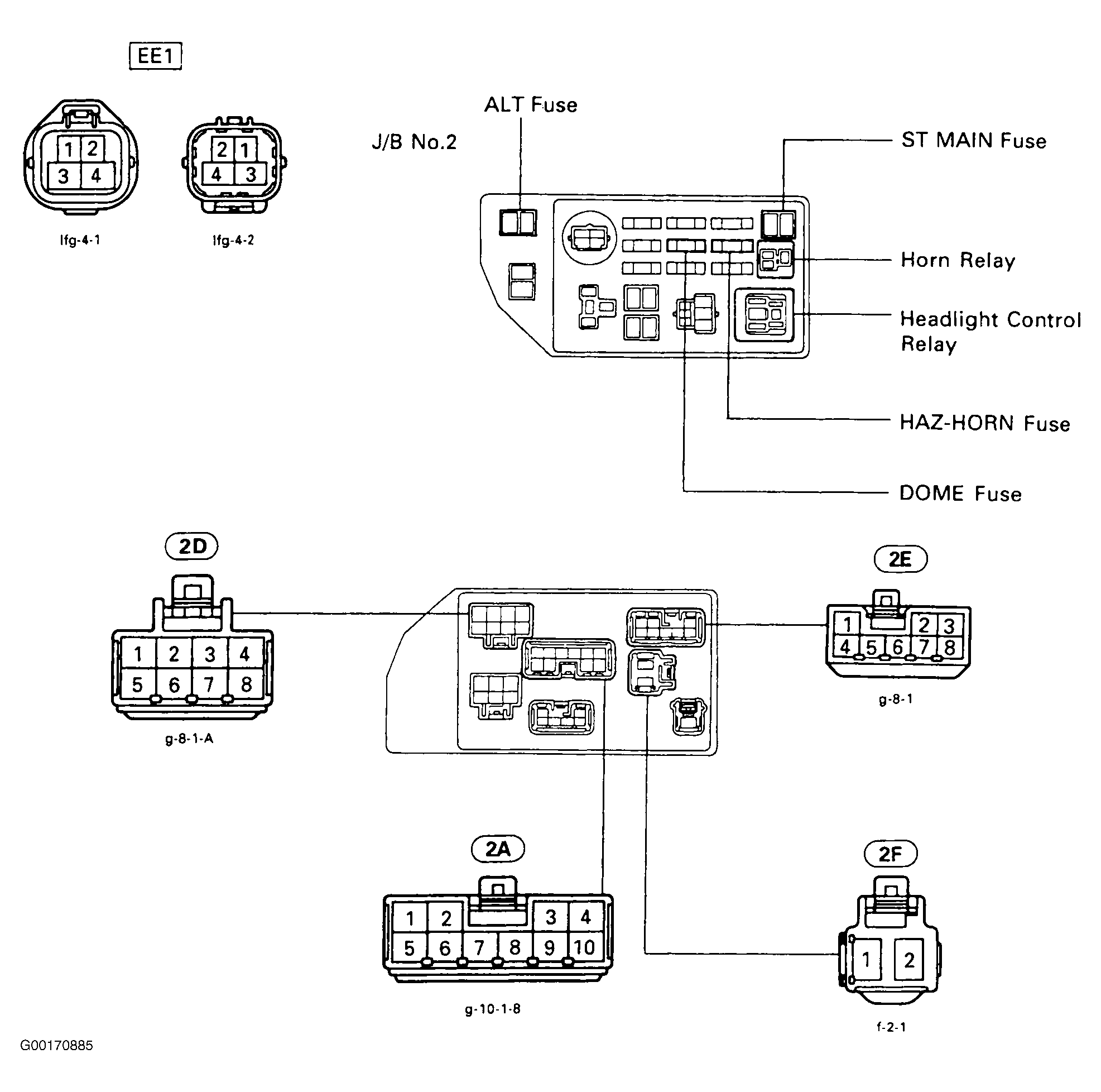

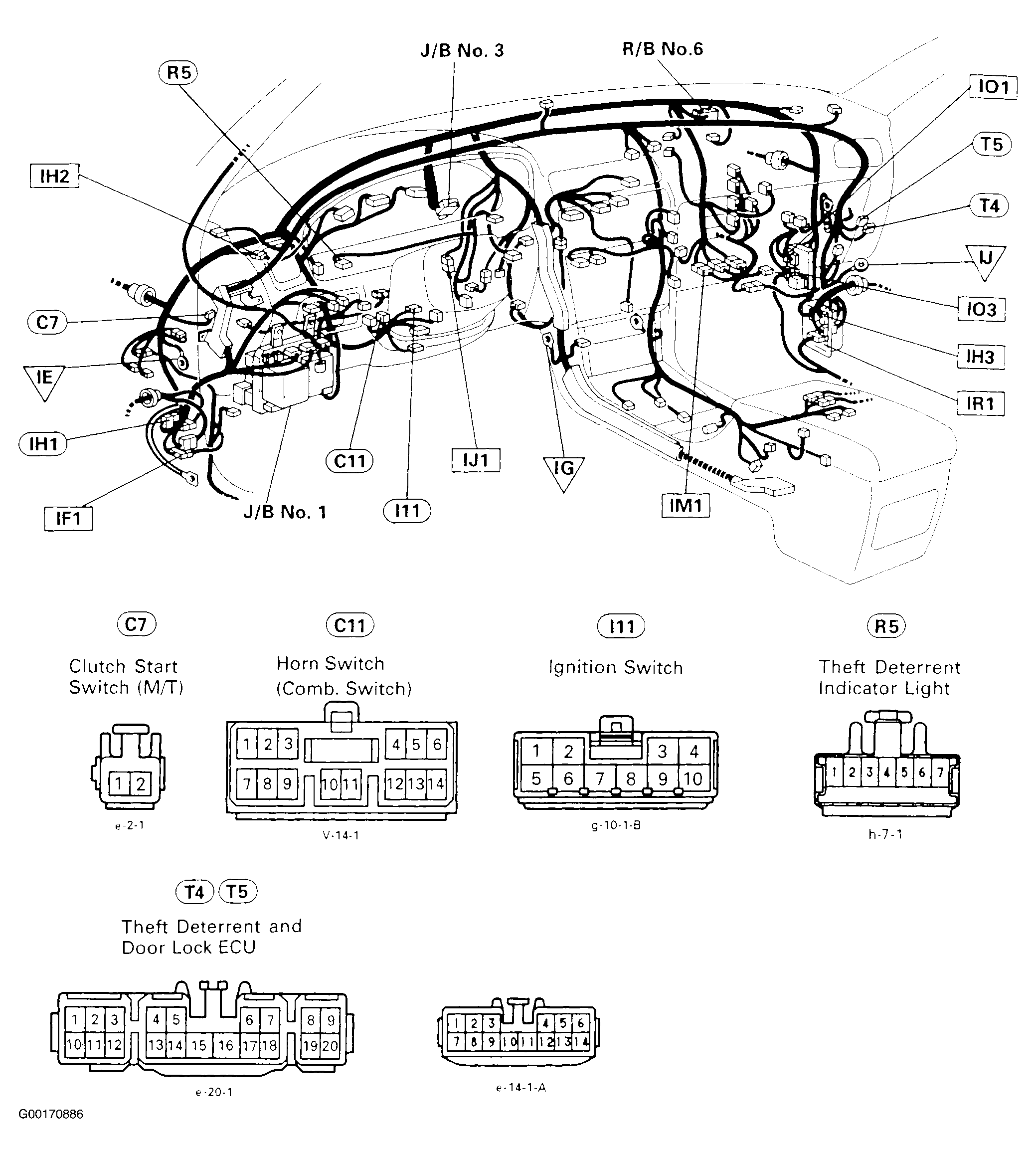

Fig 5: Connector Location Theft Deterrent System (4 Of 5)
G00170886Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

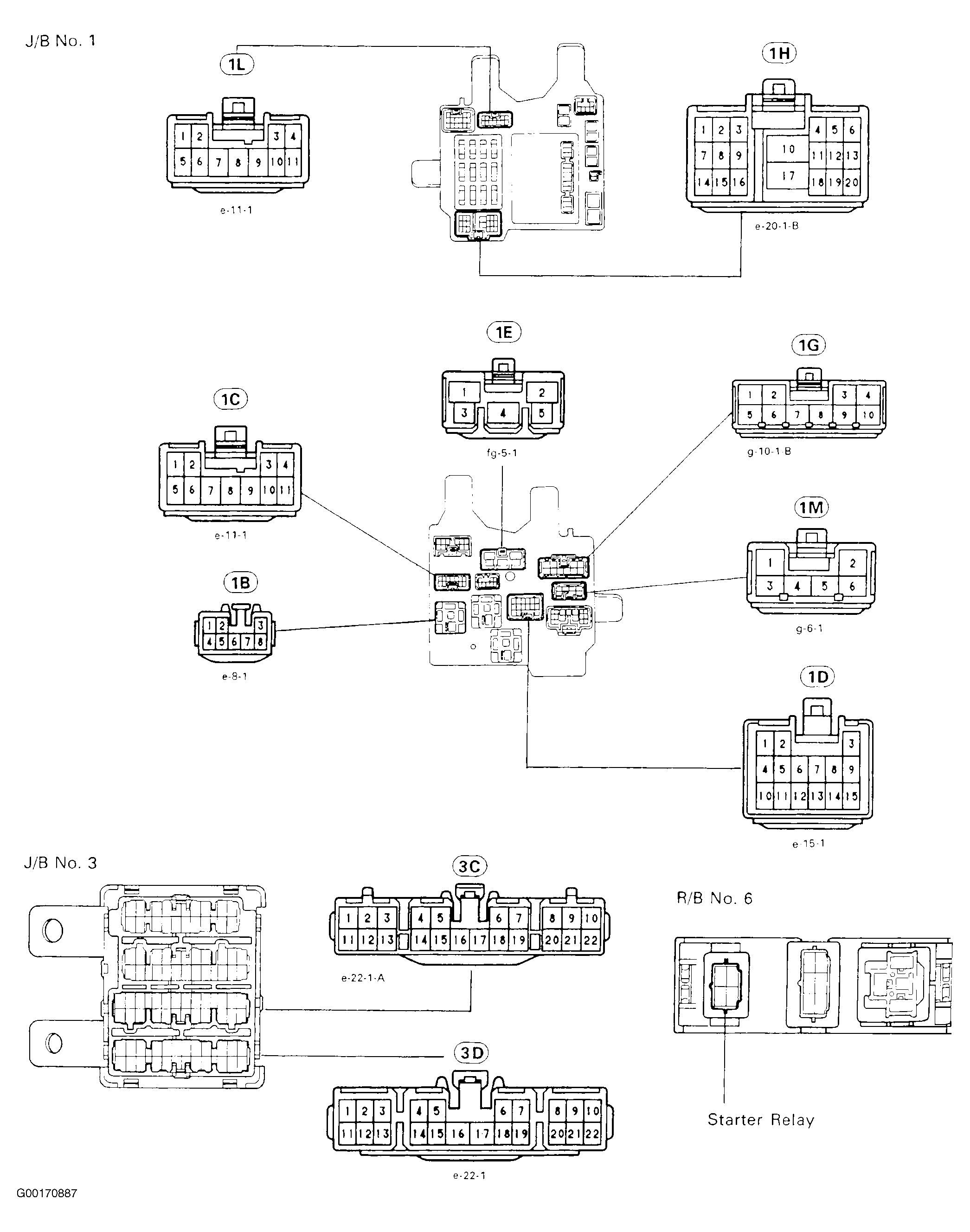

Fig 6: Connector Location Theft Deterrent System (5 Of 5)
G00170887Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
