TE1 Terminal Circuit

TE1 Terminal Circuit

CIRCUIT DESCRIPTION
The ECU displays diagnostic codes using the O/D OFF indicator light when terminals TE1 and E1 of the TDCL or check connector are connected.

DIAGNOSTIC CHART





WIRING DIAGRAM

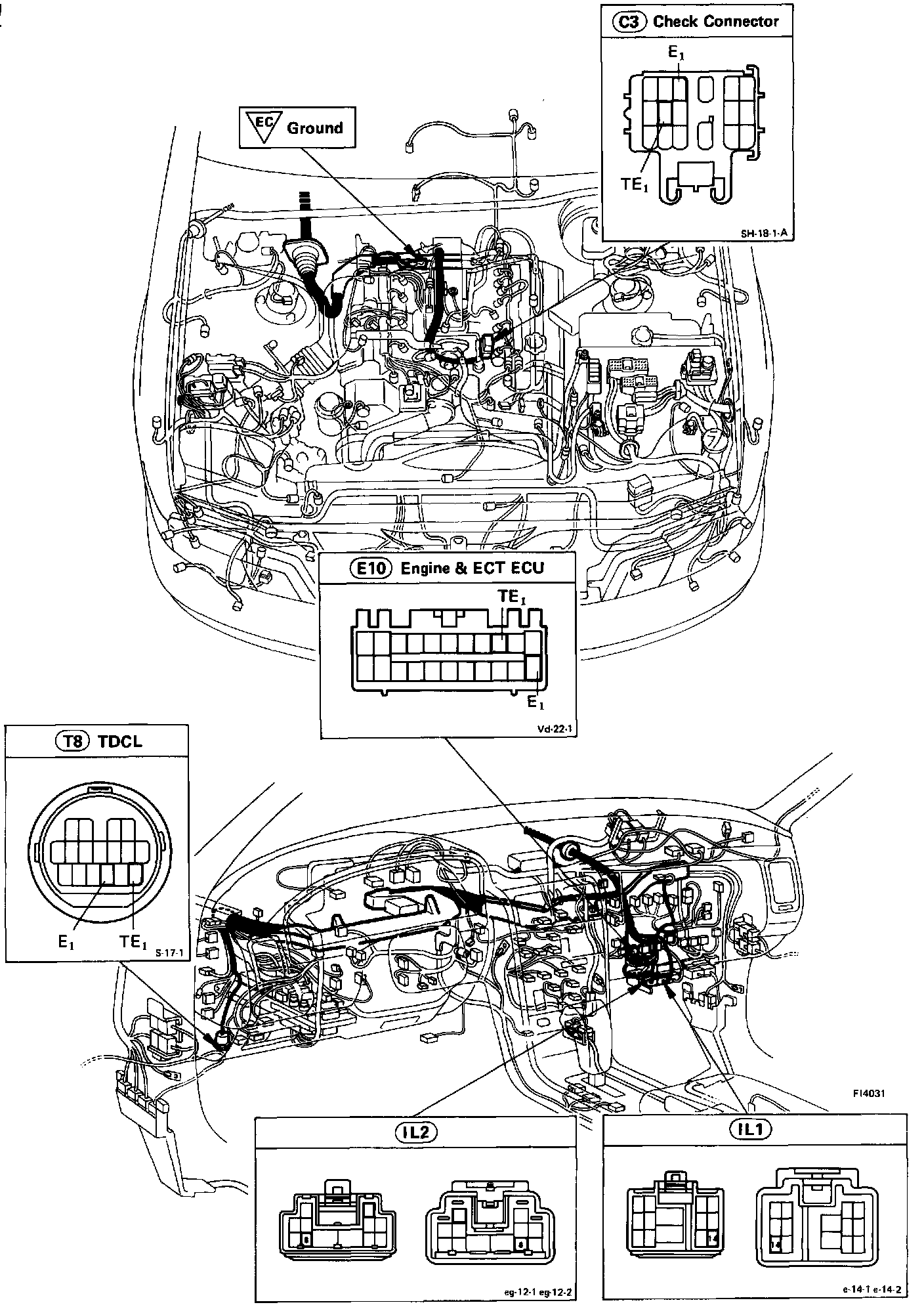

WIRING ROUTING

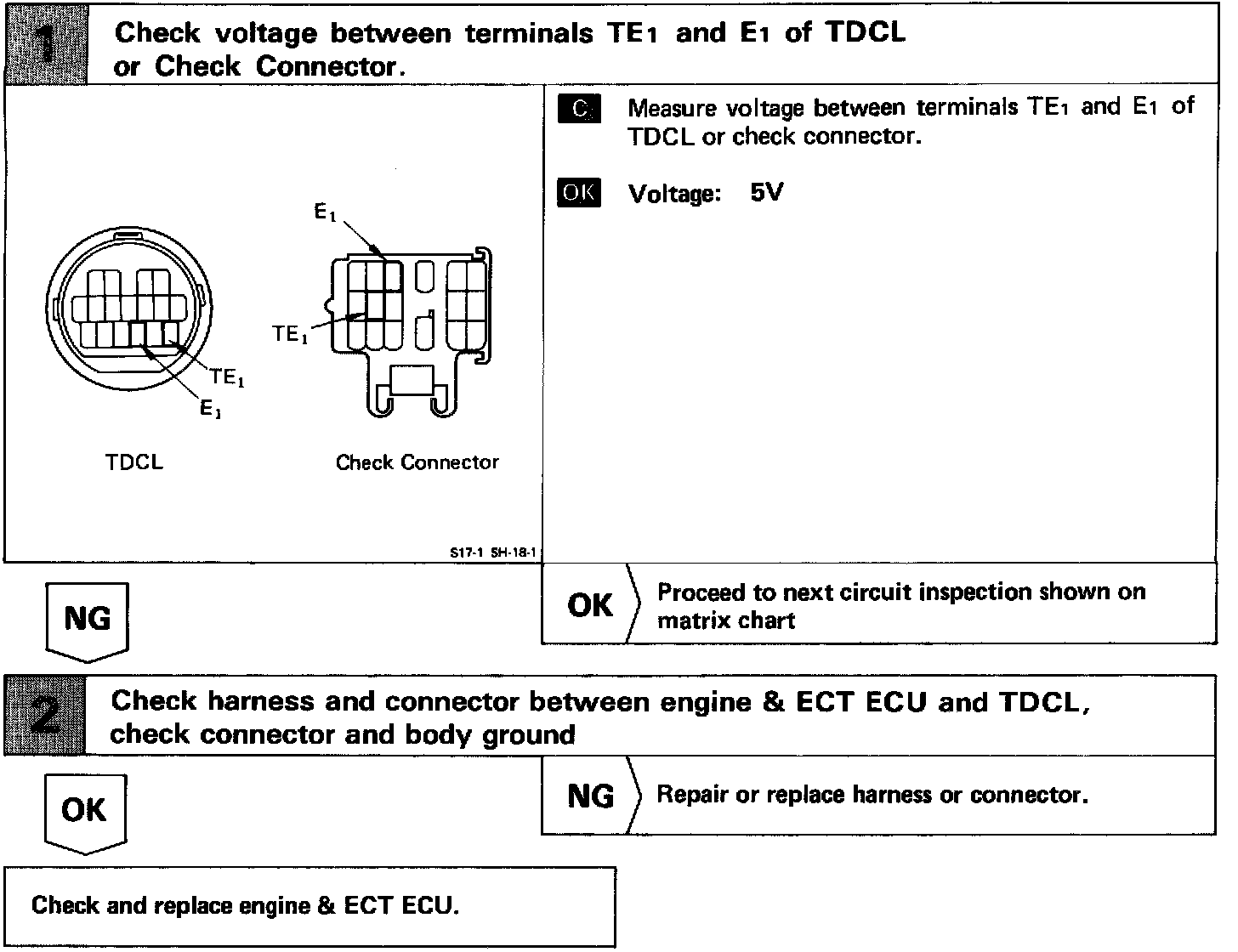

INSPECTION PROCEDURE
