Connector Views

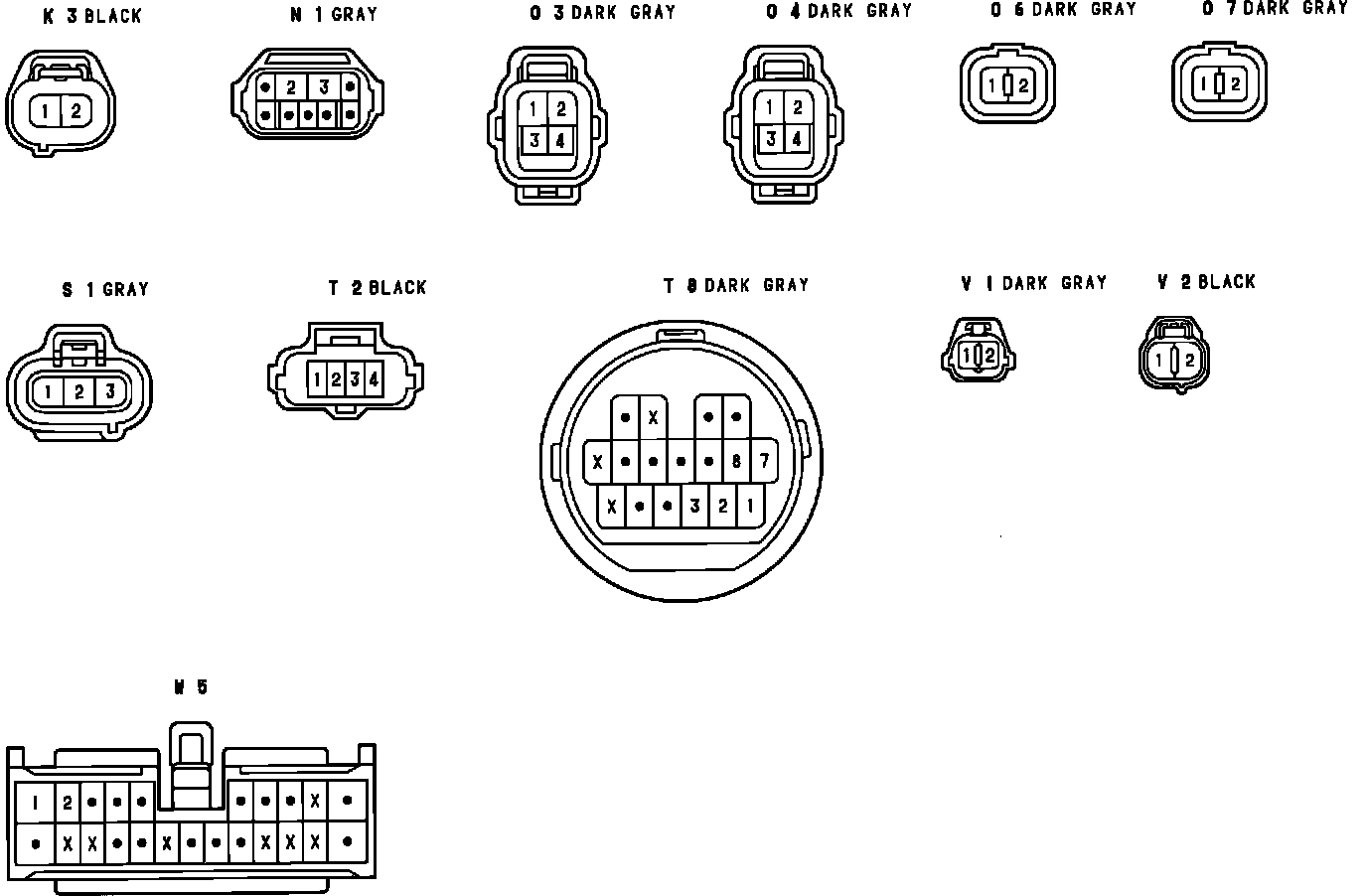

Engine Control Connector ID And Pin Locations (1 Of 2):

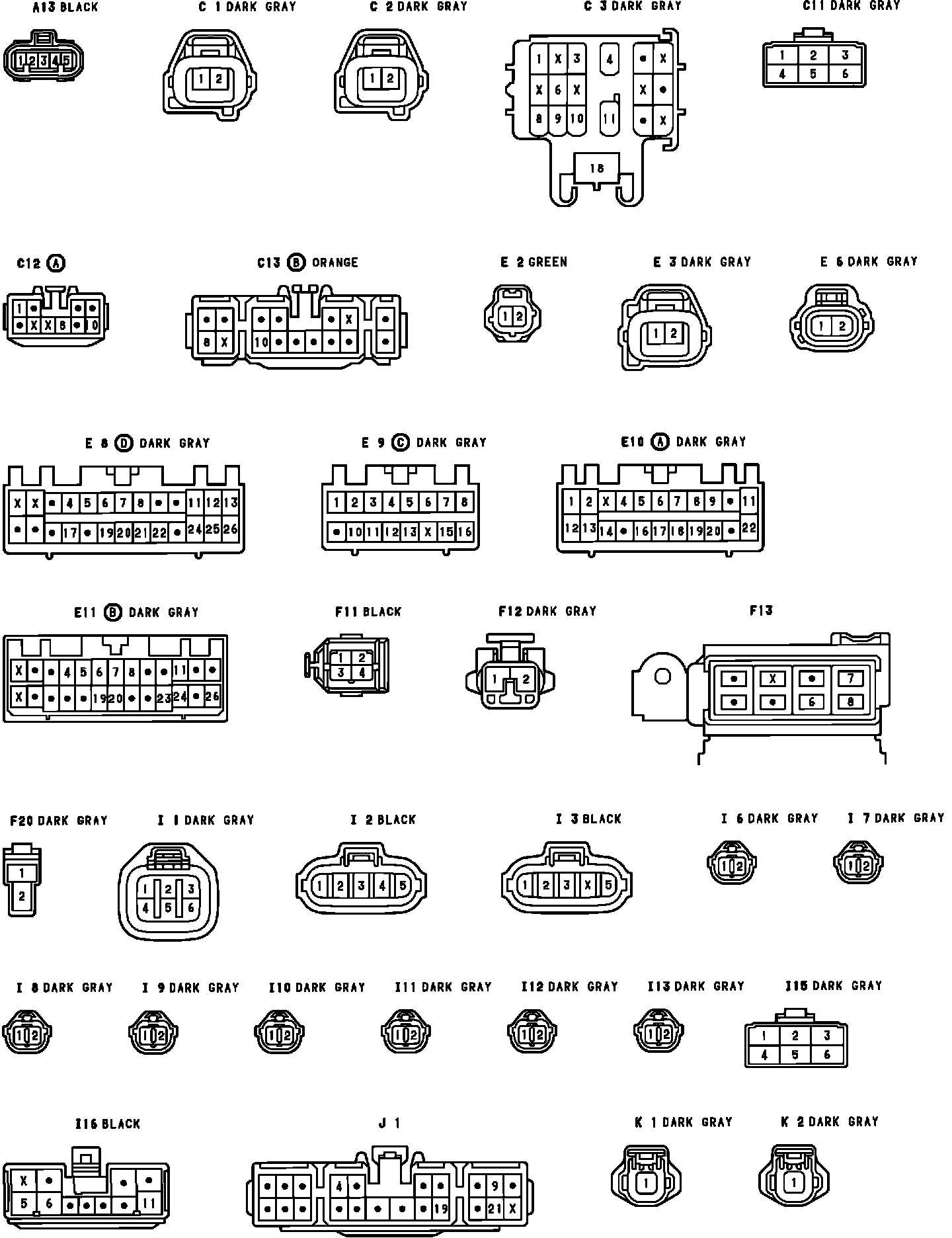

Engine Control Connector ID And Pin Locations (2 Of 2):
