Continuity Test

  1. Inspect the switch continuity between terminals. See Fig 1.
  2. If continuity is not as specified, replace the switch. See FRONT SEAT  under REMOVAL & INSTALLATION.

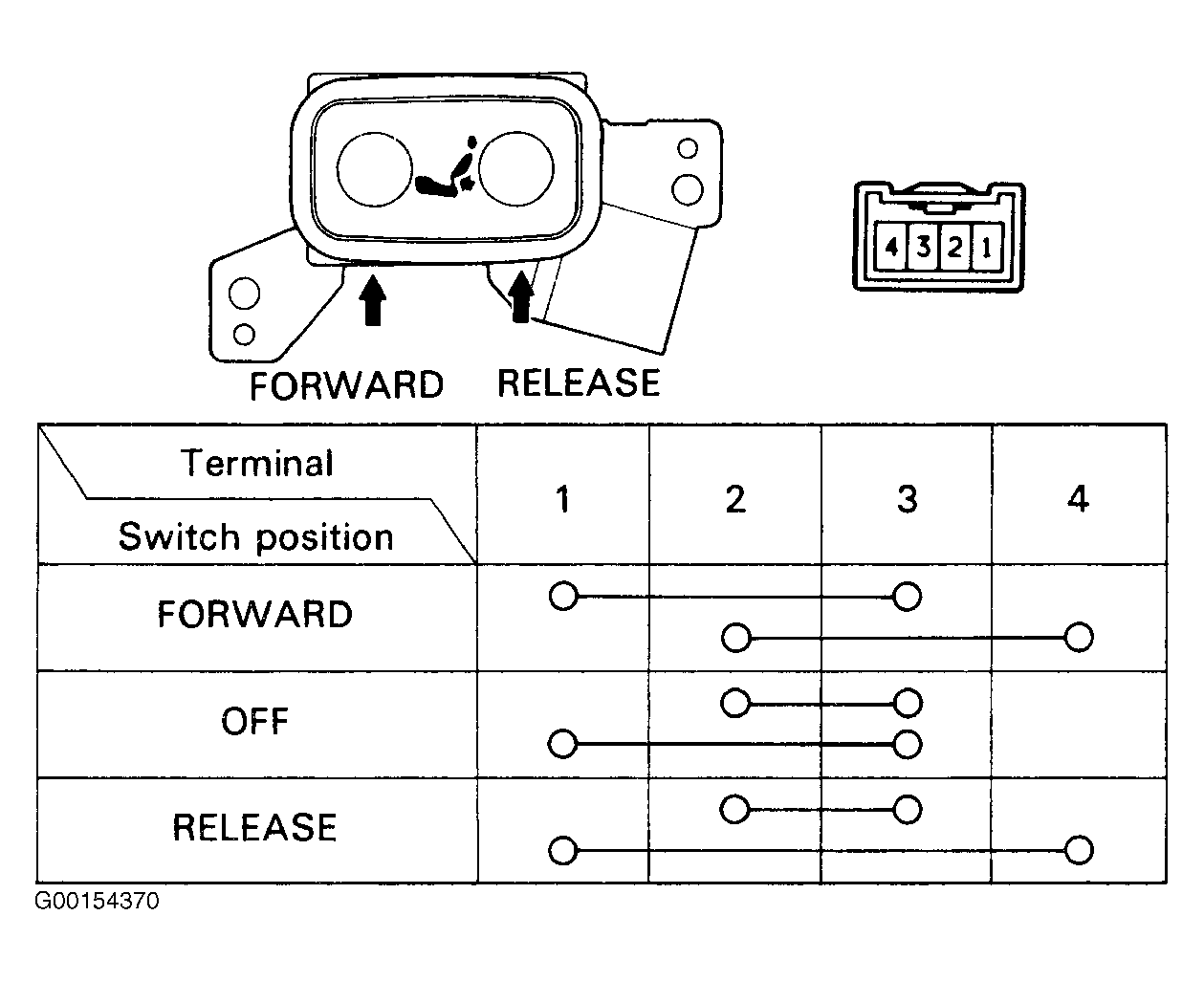

Fig 1: Testing Lumbar Support Switch Continuity
G00154370Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
