Connector Identification

To identify power seat switches and motor connectors, see Fig 1.

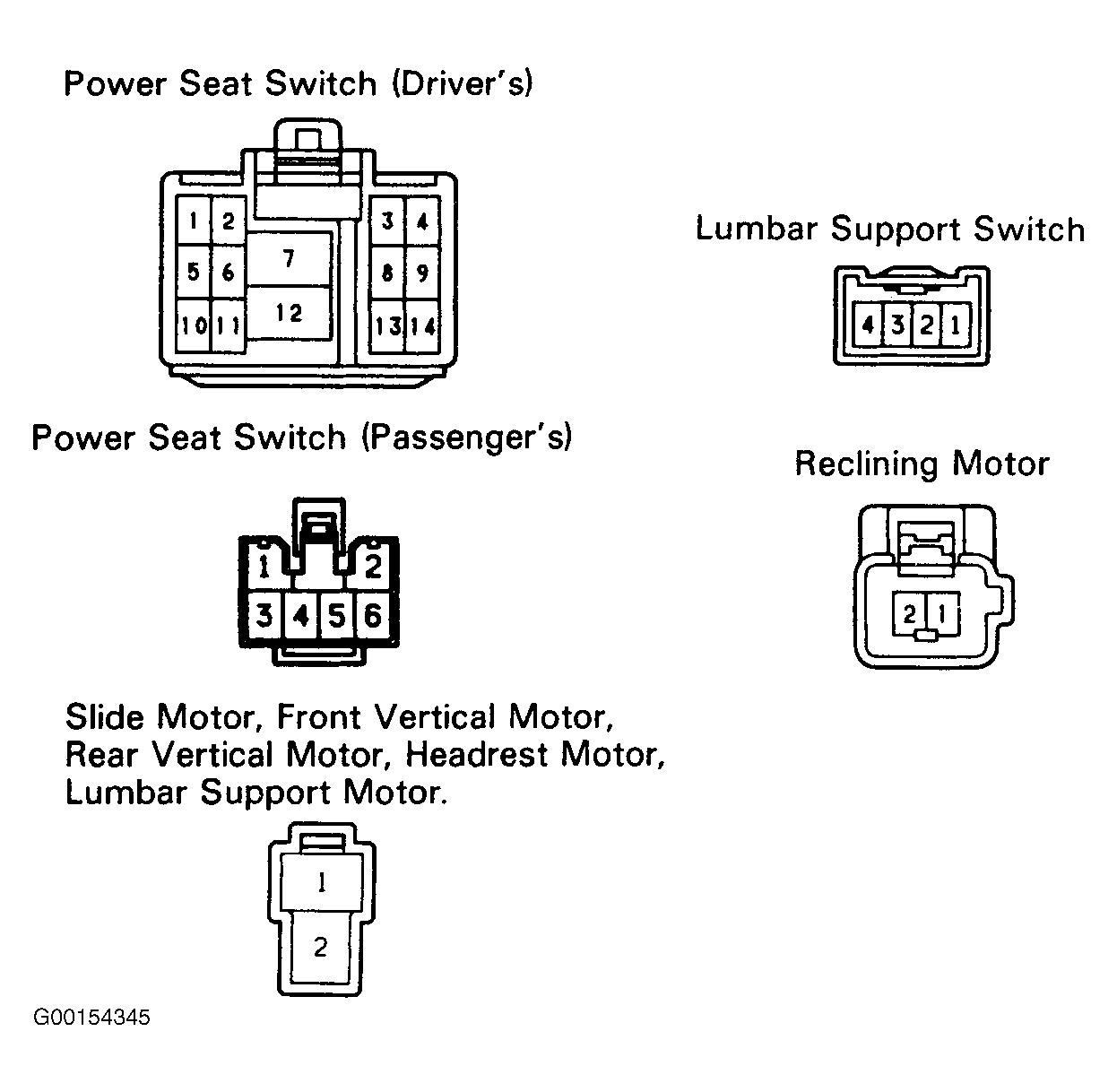

Fig 1: Identifying Power Seat Switches & Motor Connectors
G00154345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
