Power Seat Control System
NOTE:
The numbers in
Fig 1
indicate the priority of testing procedures.
To trouble shoot power seat control system, see
Fig 1
.

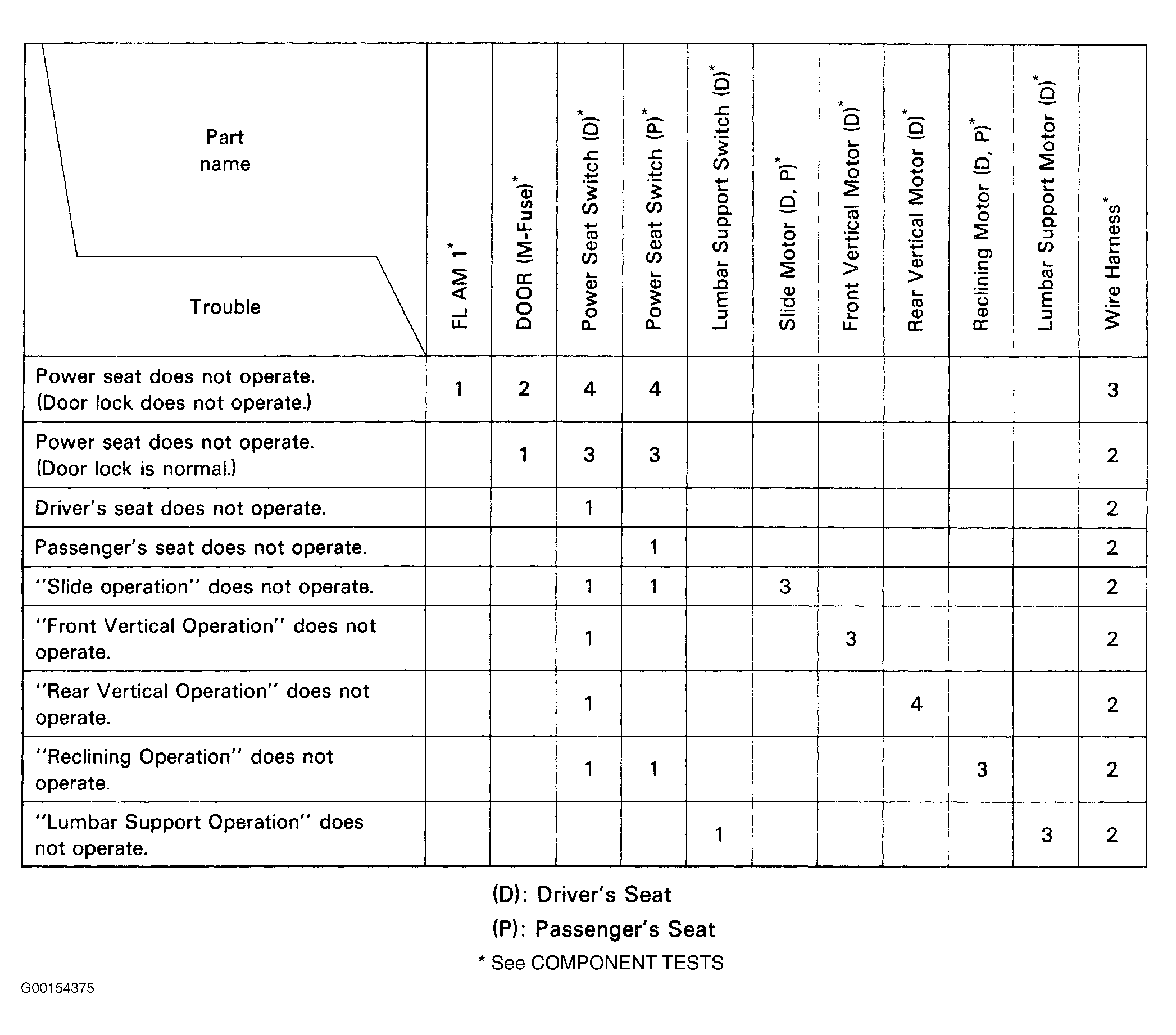

Fig 1: Trouble Shooting Power Seat Control System
