Crankshaft Position Sensor: Service and Repair

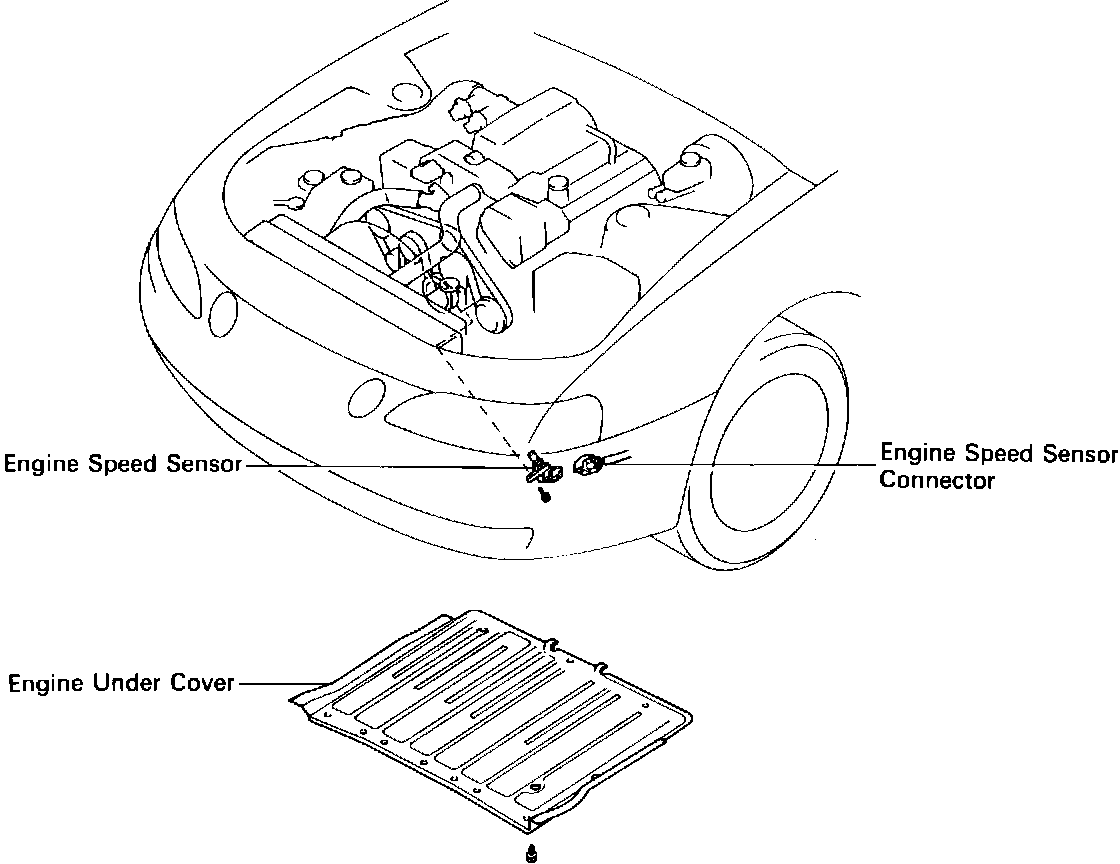

Engine Speed Sensor Removal:

1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY

CAUTION: Work must be started after approx. 20 seconds or longer from the time the ignition switch is turned to the "LOCK" position and the negative (-) terminal cable is disconnected from the battery.


2. REMOVE ENGINE UNDER COVER


3. DISCONNECT ENGINE SPEED SENSOR CONNECTOR


4. REMOVE ENGINE SPEED SENSOR

Remove the bolt and engine speed sensor.
