Wiring Diagrams

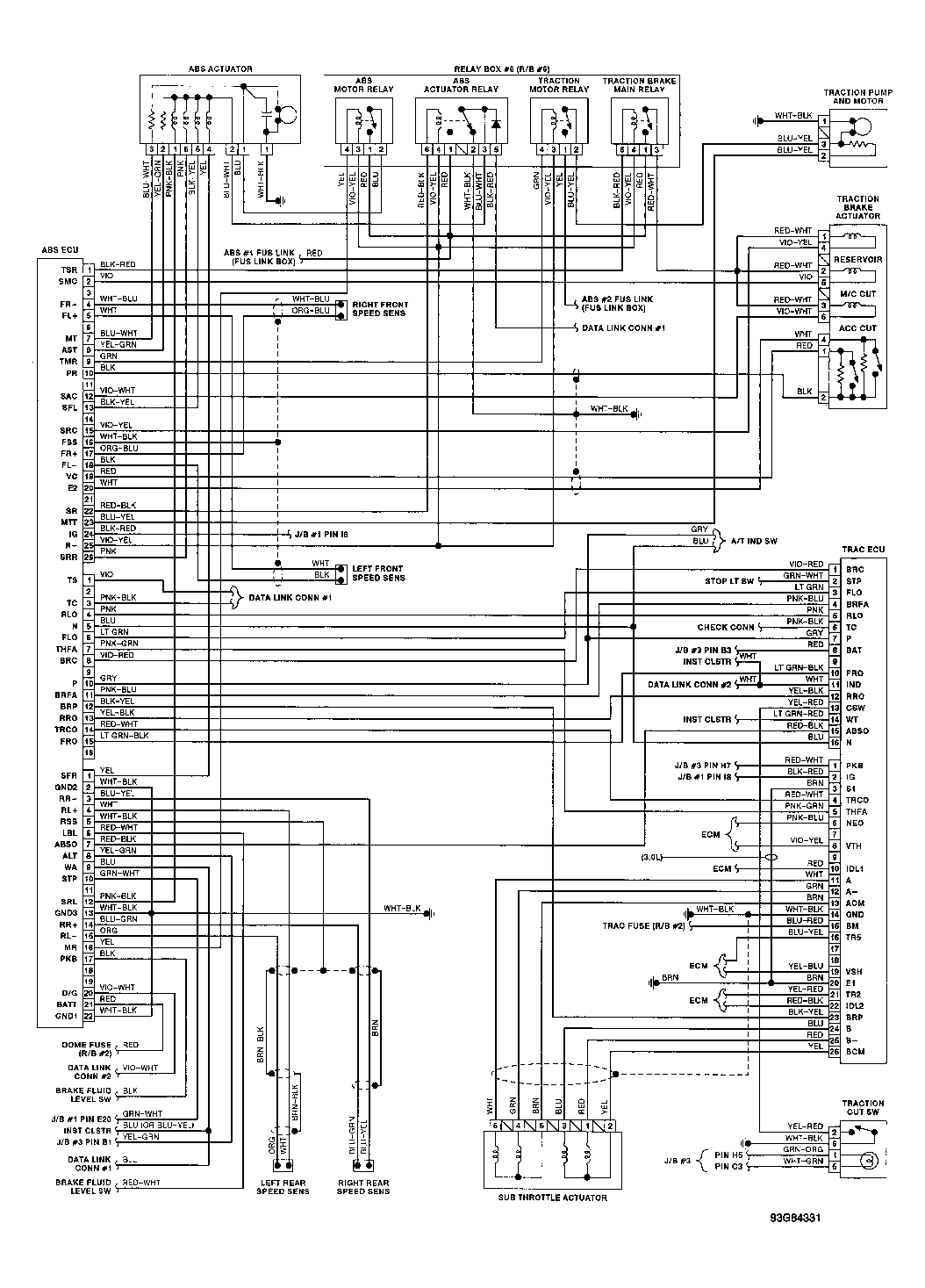

Fig 1: Traction Control (TRAC) System Wiring Diagram

G93G84331

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
