System Specifications

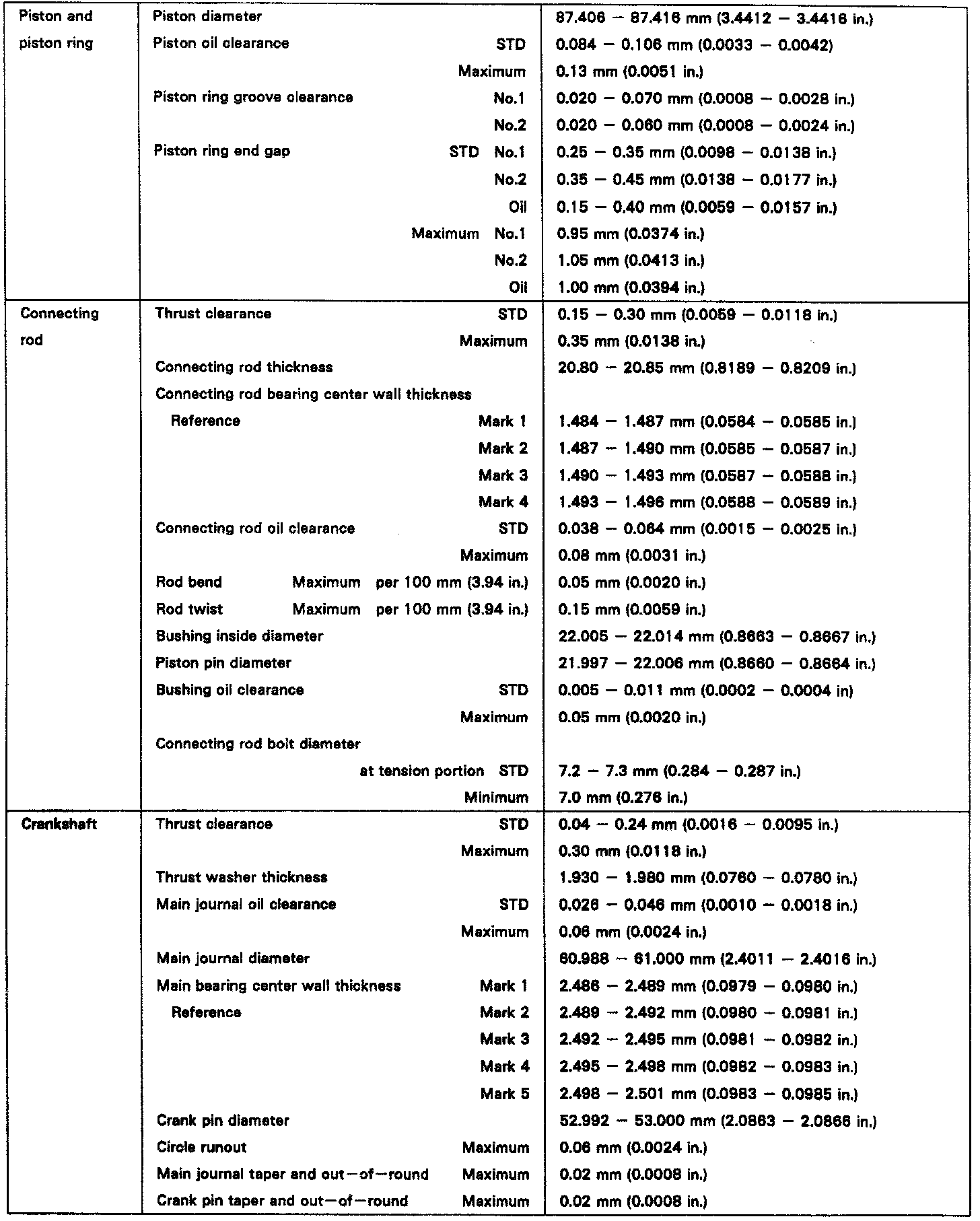

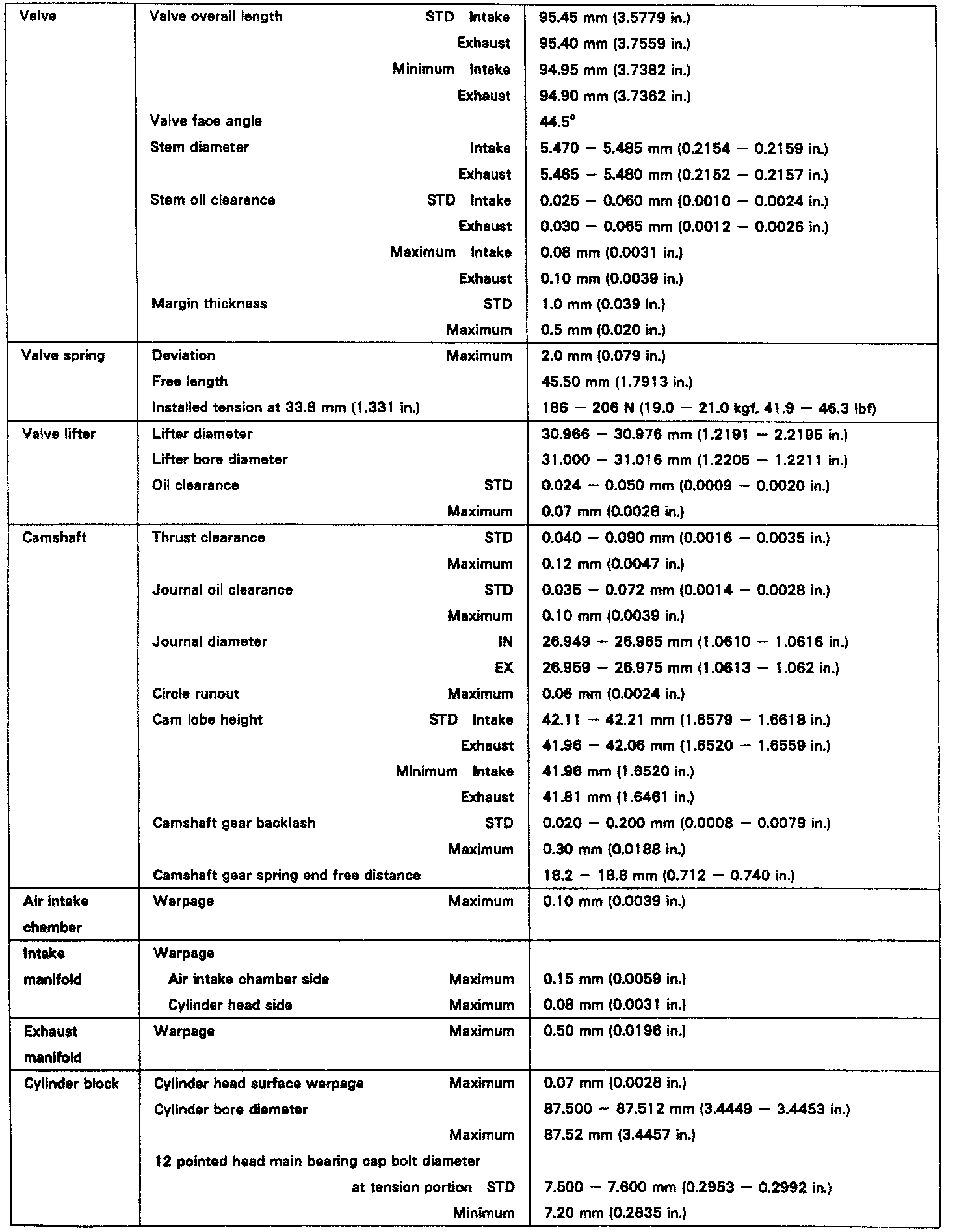

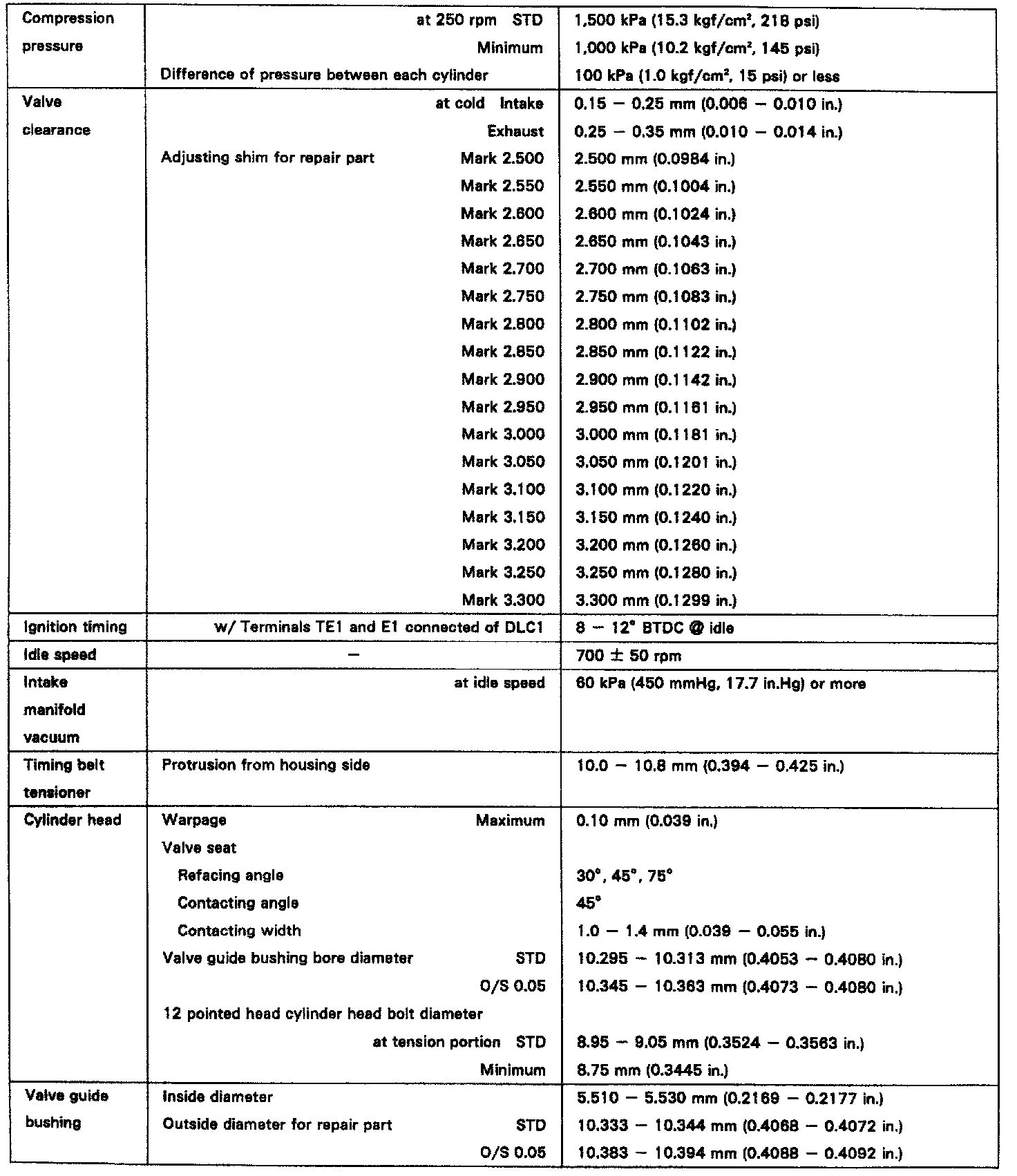

ENGINE SPECIFICATIONS

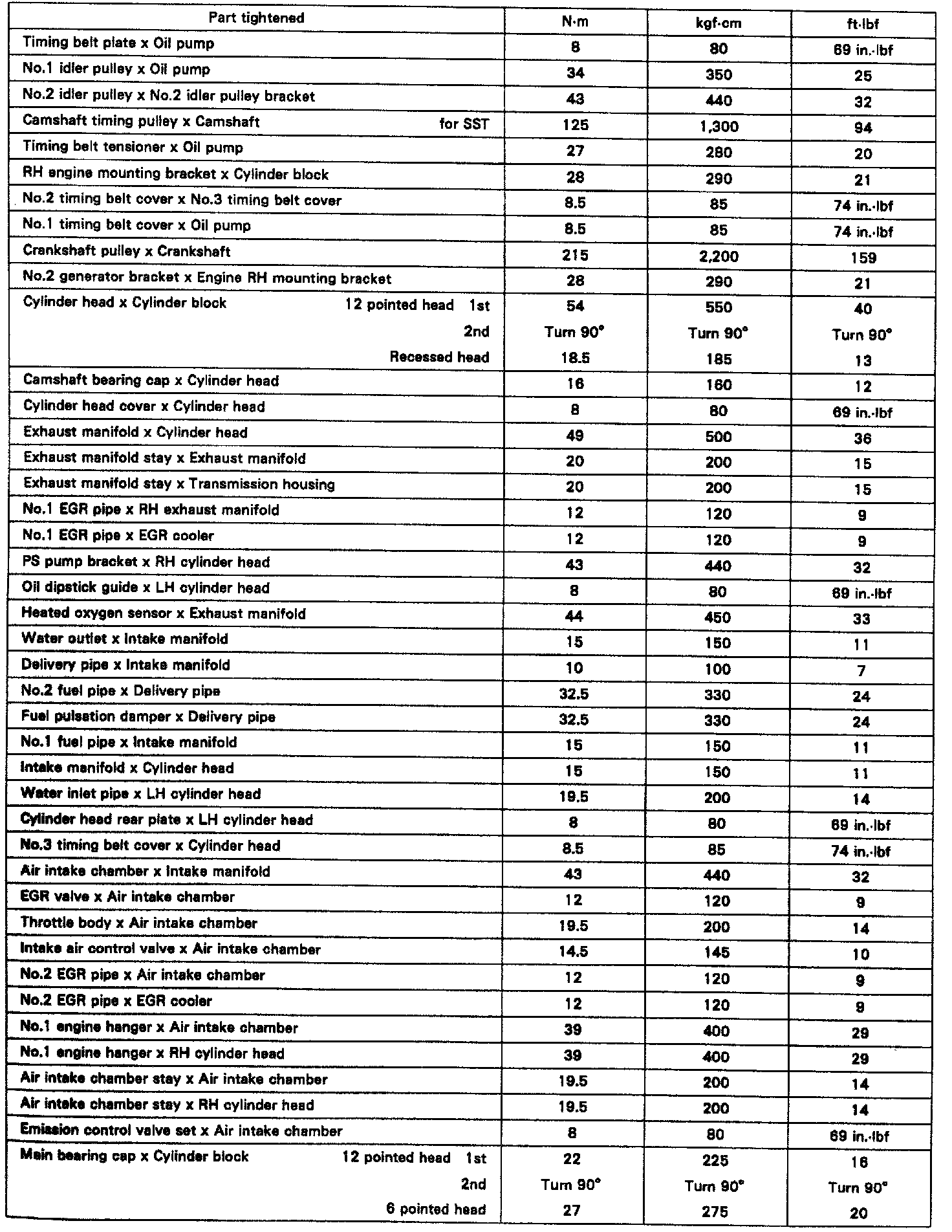

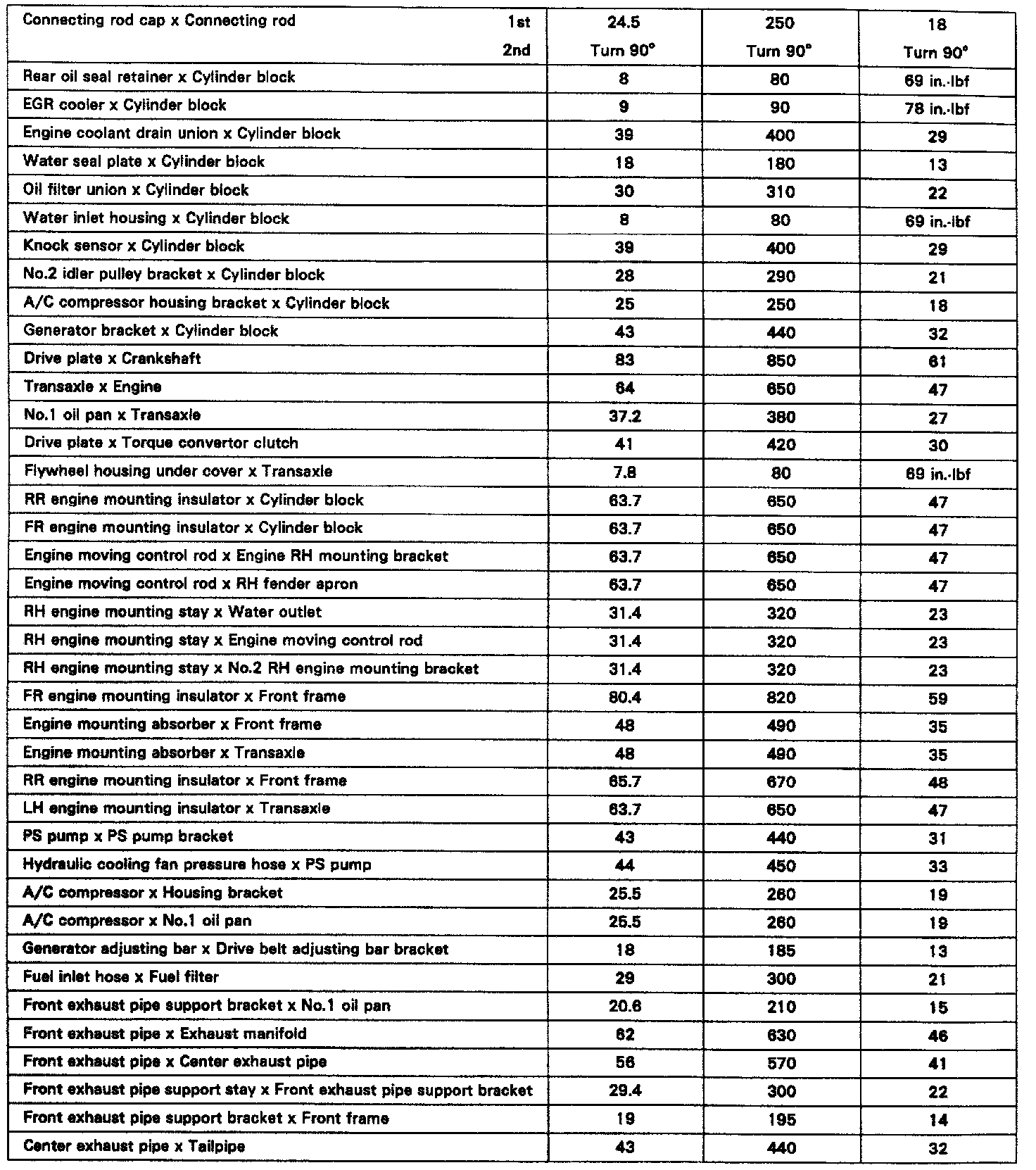

TIGHTENING SPECIFICATIONS

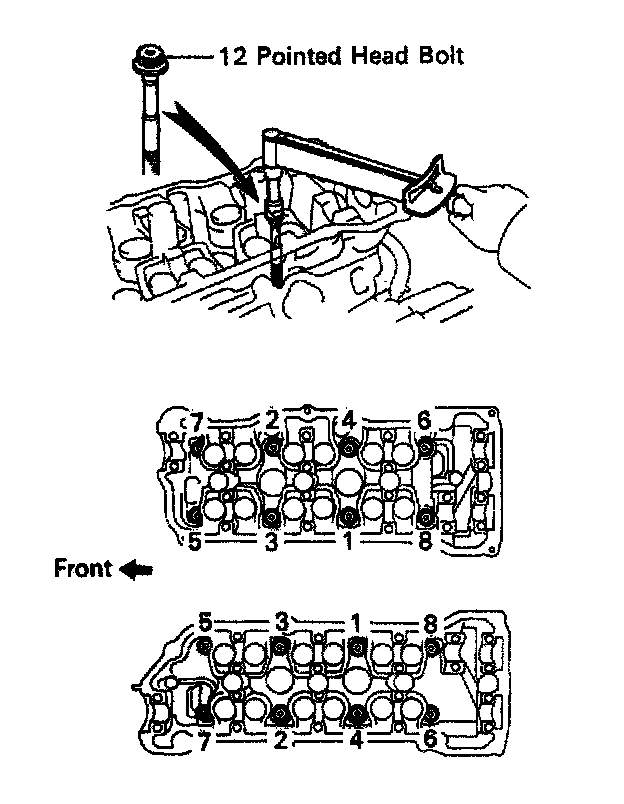

CYLINDER HEAD TIGHTENING SEQUENCE





RH CAP TIGHTENING SEQUENCE









LH CAP TIGHTENING SEQUENCE









INTAKE TIGHTENING SEQUENCE





MAIN BEARING TIGHTENING SEQUENCE





FLYWHEEL TIGHTENING SEQUENCE
