Federal Models

INSPECTION

1. Allow the engine to warm up to normal operating temperature.
2. Inspect feedback voltage.





- Connect the positive (+) probe of a voltmeter to terminal VF1 (for sensor No. 1) or VF2 (for sensor No. 2) of the Data Link Connector 1, and negative (-) probe to terminal E1.

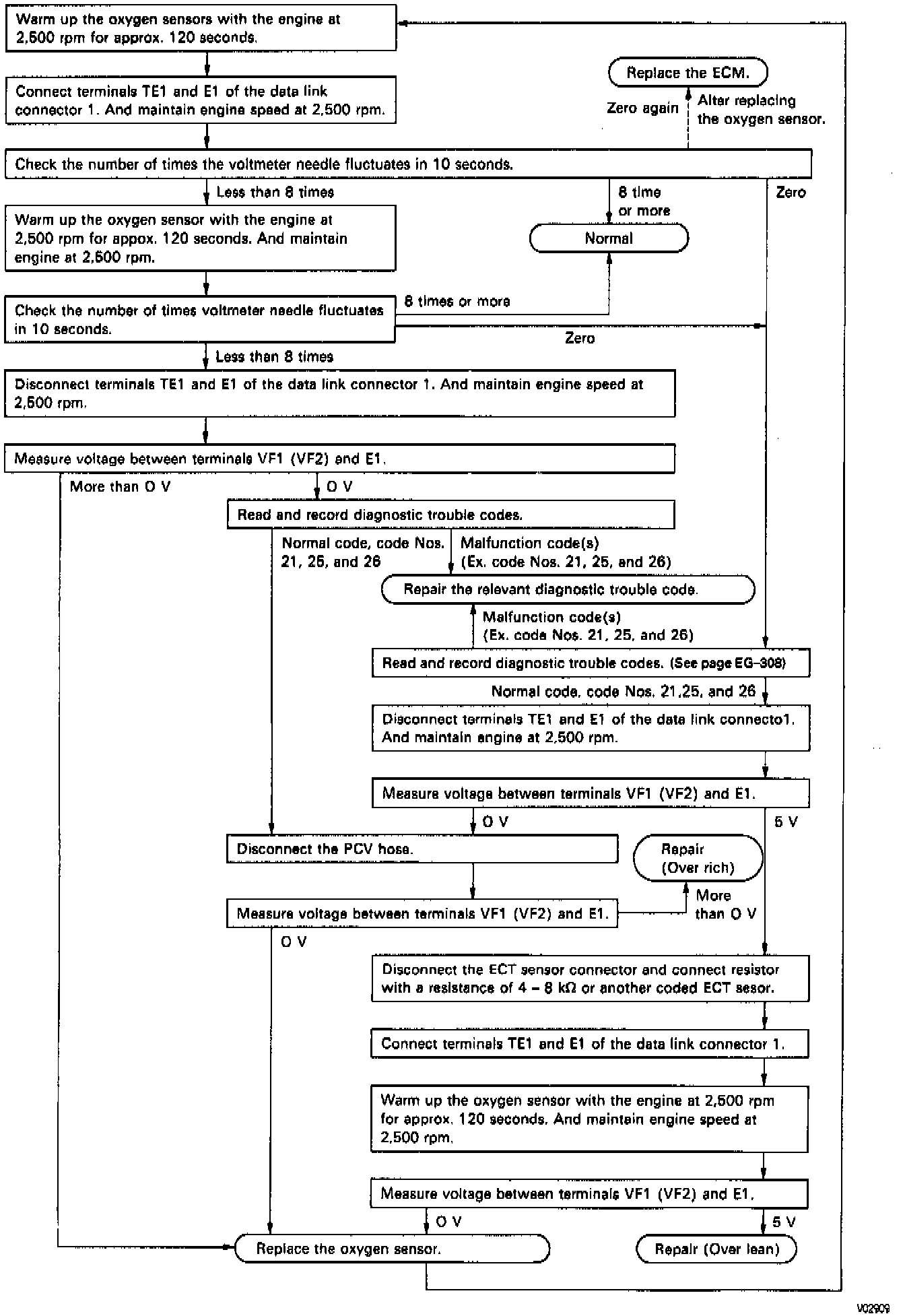

- Perform the test as described above.
