Crankshaft Position Sensor: Service and Repair

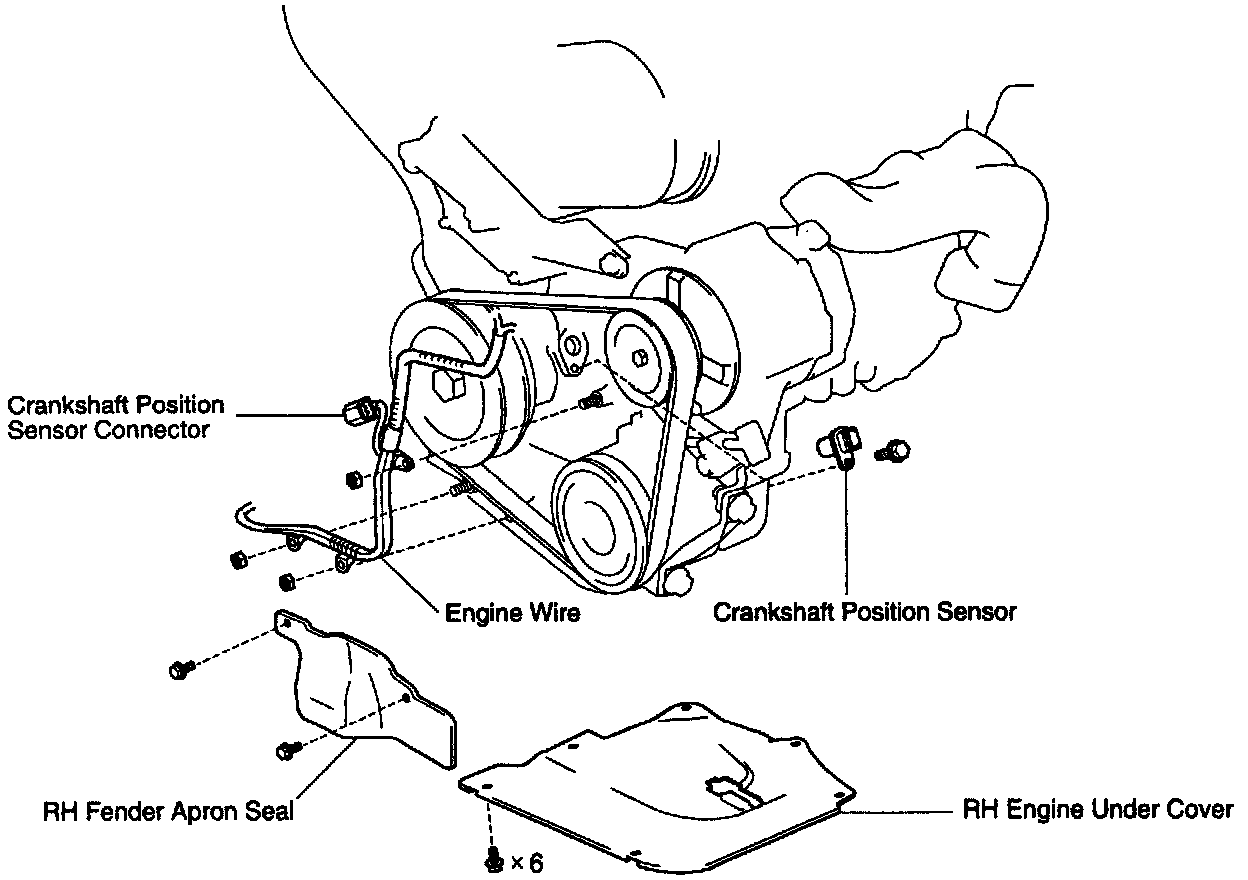

COMPONENTS FOR REMOVAL AND INSTALLATION

REMOVAL



1. REMOVE RH ENGINE UNDER COVER.
2. REMOVE RH FENDER APRON SEAL.
3. DISCONNECT ENGINE WIRE.




- Remove the 3 nuts and disconnect the engine wire.




4. REMOVE CRANKSHAFT POSITION SENSOR
- Remove the bolt and disconnect the crankshaft position sensor.

Torque: 8 Nm (69 in lb)

- Disconnect the crankshaft position sensor connector.

INSTALLATION HINT: Installation is in the reverse order of removal.
