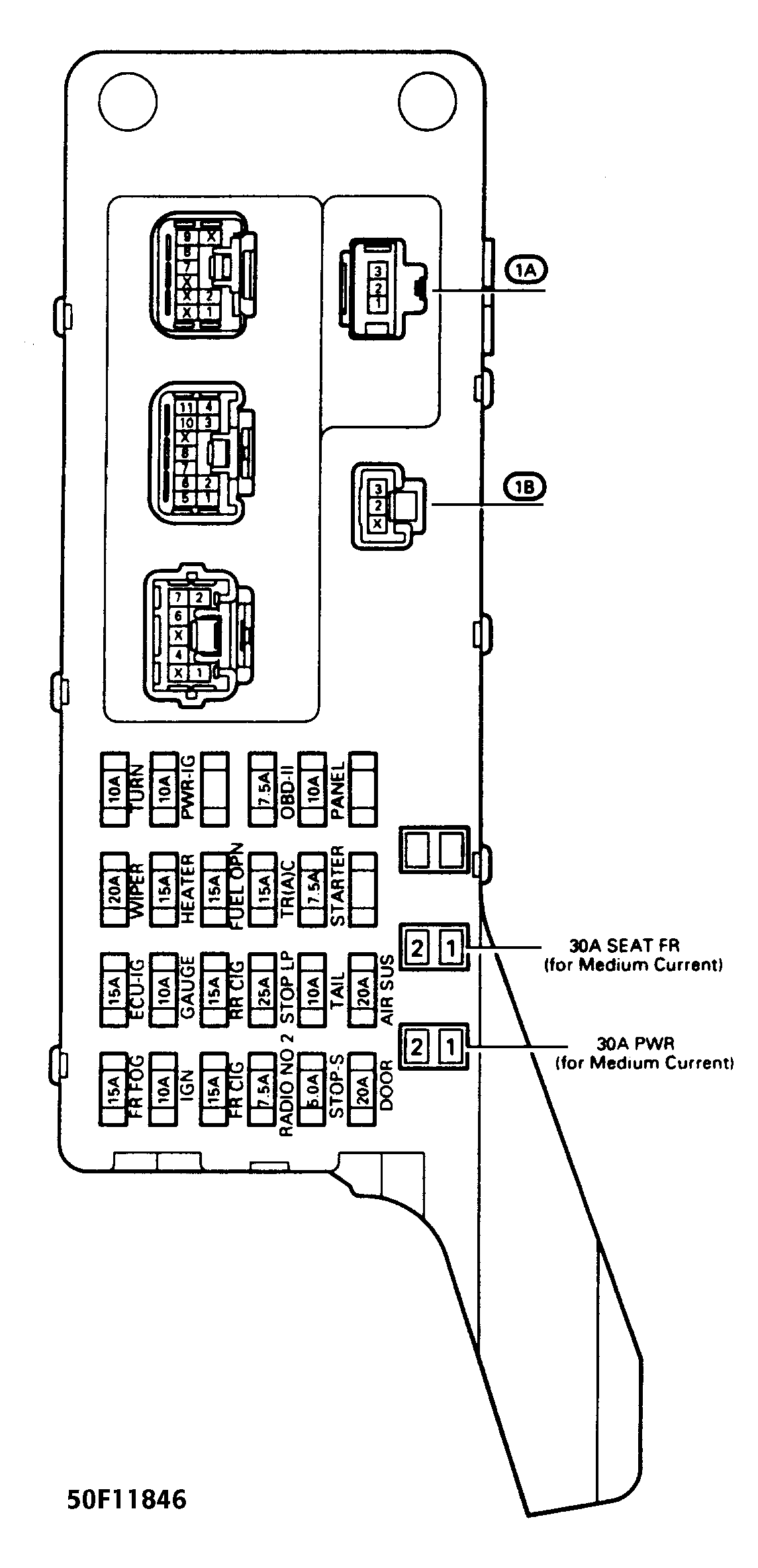

Dash Fuse Panel Fuse Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- 1 - 25 Amp Stoplights, Cruise Control System Cancel Circuit
- 2 - 15 Amp Foglights
- 3 - 15 Amp Anti-Lock Brake System, SRS Air Bag System, Ride Control System
- 4 - 7.5 Amp Radio, Cassette Tape Player, Compact Disc Player, Power Antenna, Power Rear View Mirrors, Air Conditioner System
- 5 - 15 Amp Cigarette Lighter, Theft Deterrent System, Shift Lock System, SRS Air Bag System
- 6 - 10 Amp Outside Mirror Defogger
- 7 - 10 Amp Gauges, Warning Lights & Buzzers, Back-Up Light, A/T & Overdrive, Power Windows, Light Control System, Seat Belt Warning Lights
- 8 - 7.5 Amp Charging System
- 9 - 15 Amp Cruise Control System, Power Steering Control System, Shift Lock System, Anti-Lock Brake System, SRS Air Bag System, Power Door Lock System, Ride Control System
- 10 - 7.5 Amp Turn Signal Lights
- 11 - 15 Amp Air Conditioner System, Rear Window Defogger, Electronic Cooling Fan
- 12 - 20 Amp Windshield Wipers & Washers, Headlight Washer (1991-94)
- 13 - 15 Amp Tail & Parking Lights, Side Marker & License Lights
- 14 - 7.5 Amp Instrument Panel Lights, Air Conditioner Control System, Clock & Glove Box Light
- 15 - 7.5 Amp Charging System Warning Light, Electronic Fuel Injection, Cooling Fan System, SRS Air Bag System
- 16 - 7.5 Amp Starting System, Cruise Control System, Electronic Fuel Injection System, Instrument Panel Lights
- 17 - 15 Amp Traction Control System
