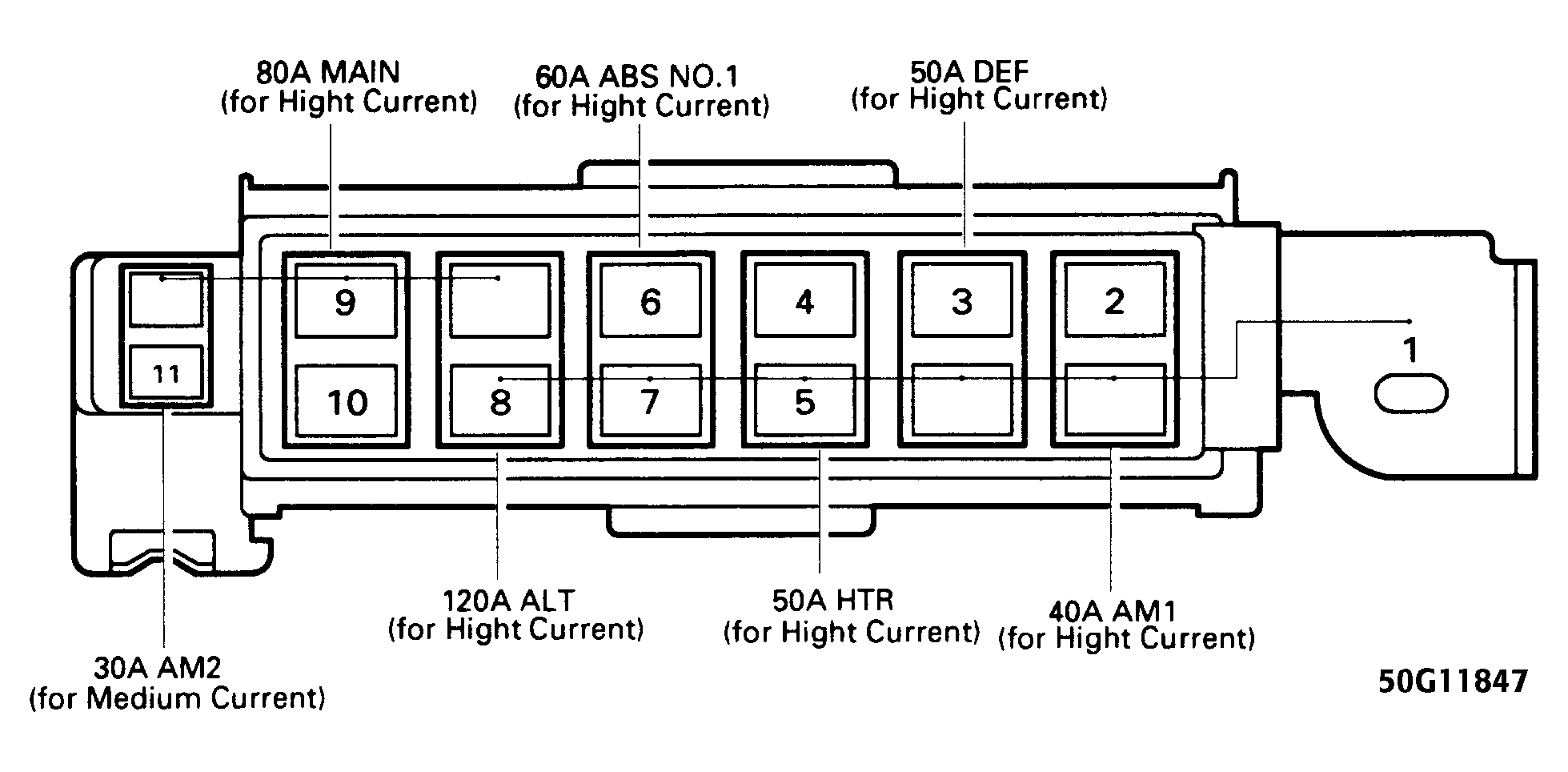

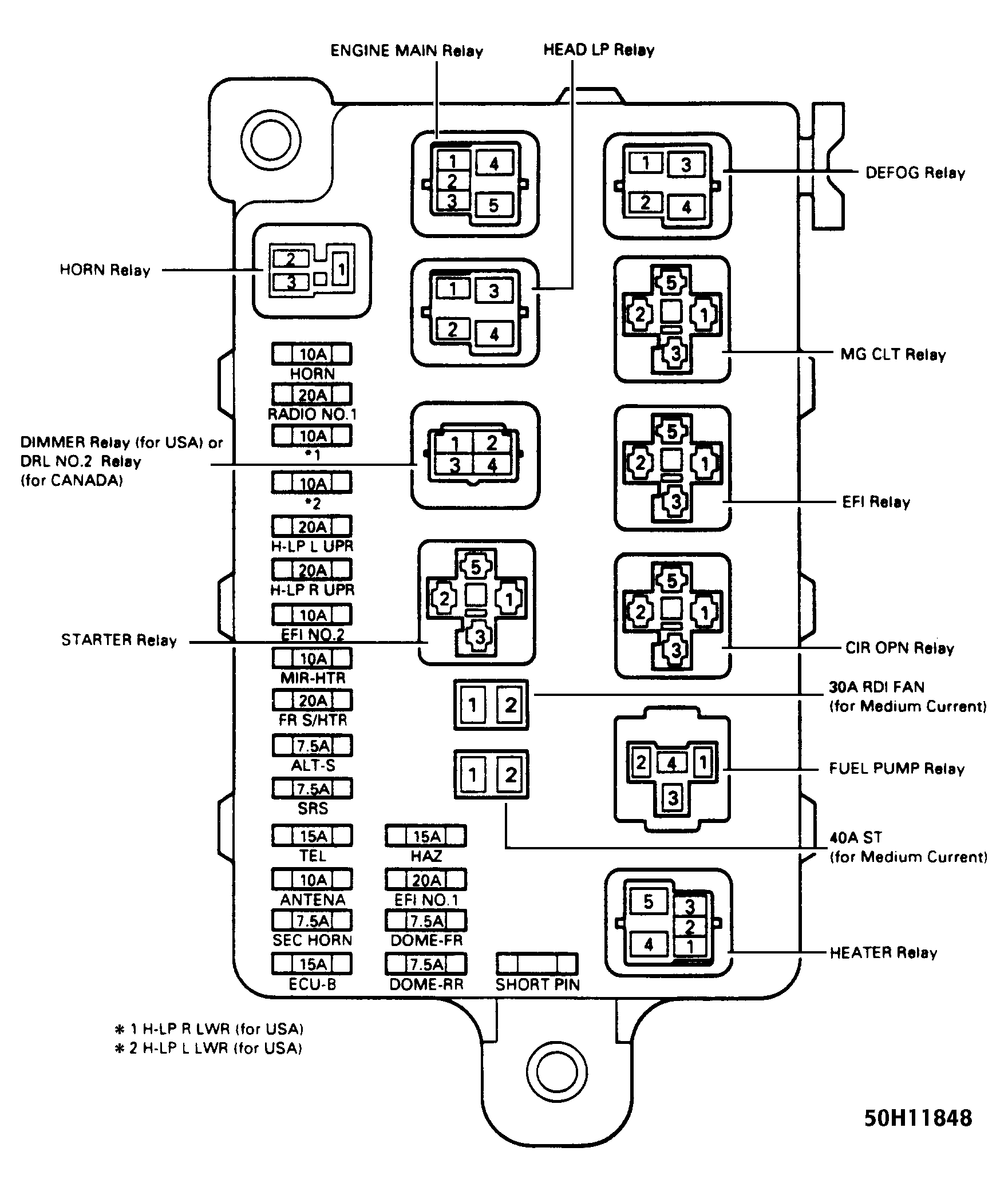

Main Junction Block Fuse Identification
WARNING:
Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- 1 - 60 Amp ABS System
- 2 - 40 Amp Turn Signal Light, Door Lock Control System, Power Window System, Power Seat System, Audio System, Antenna Motor, Wiper & Washer, Power Shoulder Belt Anchor System, A/C & Heater System, Power Tilt & Telescoping Steering Wheel, Cigarette Lighter, Combination Meter, ABS System, Air Suspension System
- 3 - 120 Amp Fog, Tail & Stoplights, Turn Signal Lights, Defogger & Seat Heater, A/C & Heater System, Power Shoulder Belt Anchorage, Door Lock Control, Power Windows & Power Seats, Antenna Motor, Cigarette Lighter, Combination Meter, Wiper & Washer
- 4 - 30 Amp Charging System Light, Radiator Fan & Starter, Engine, Air Suspension
- 5 - 20 Amp Radio Cassette Player, Compact Disc Player, Power Antenna
- 6 - 15 Amp Emergency Flashers & Horns
- 7 - 10 Amp Interior & Door Courtesy Lights, Personal & Ignition Switch Lights, Warning Lights, Luggage Compartment Light, Electric Moon Roof System, Radio Cassette Tape Player, Compact Disc Player, Preset Steering System, Seat Belt Warning, Cruise Control System, Air Conditioner System, Inside Rear View Mirror, Door Lock Foot Light, Theft Deterrent System, Foot Light, Power Rear View Mirror, Locking Wireless Remote, Control
- 8 - 15 Amp Telephone
- 9 - 20 Amp Electronic Fuel Injection
- 10 - 20 Amp Seat Heater
- 11 - Blank
- 12 - 20 Amp Ride Control System, Height Control System
- 13 - Blank
- 14 - Blank
- 15 - 15 Amp (1990-91) Left Headlight
- 15 - 10 Amp (1992) Daytime Running Light System
- 16 - 15 Amp
Right Headlight, Left Headlight
WARNING: Always disconnect battery ground cable before servicing "high-current fuses. It is recommended that "high-current" fuses be replaced by a qualified technician.
- A - Headlight Control
- B - Starter
- C - Engine Main
- D - A/C Magnetic Clutch
- E - Heater Main
- F - Horn
- G - EFI Main
