Connector Locations

Junction Block And Wire Harness Connector:




JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

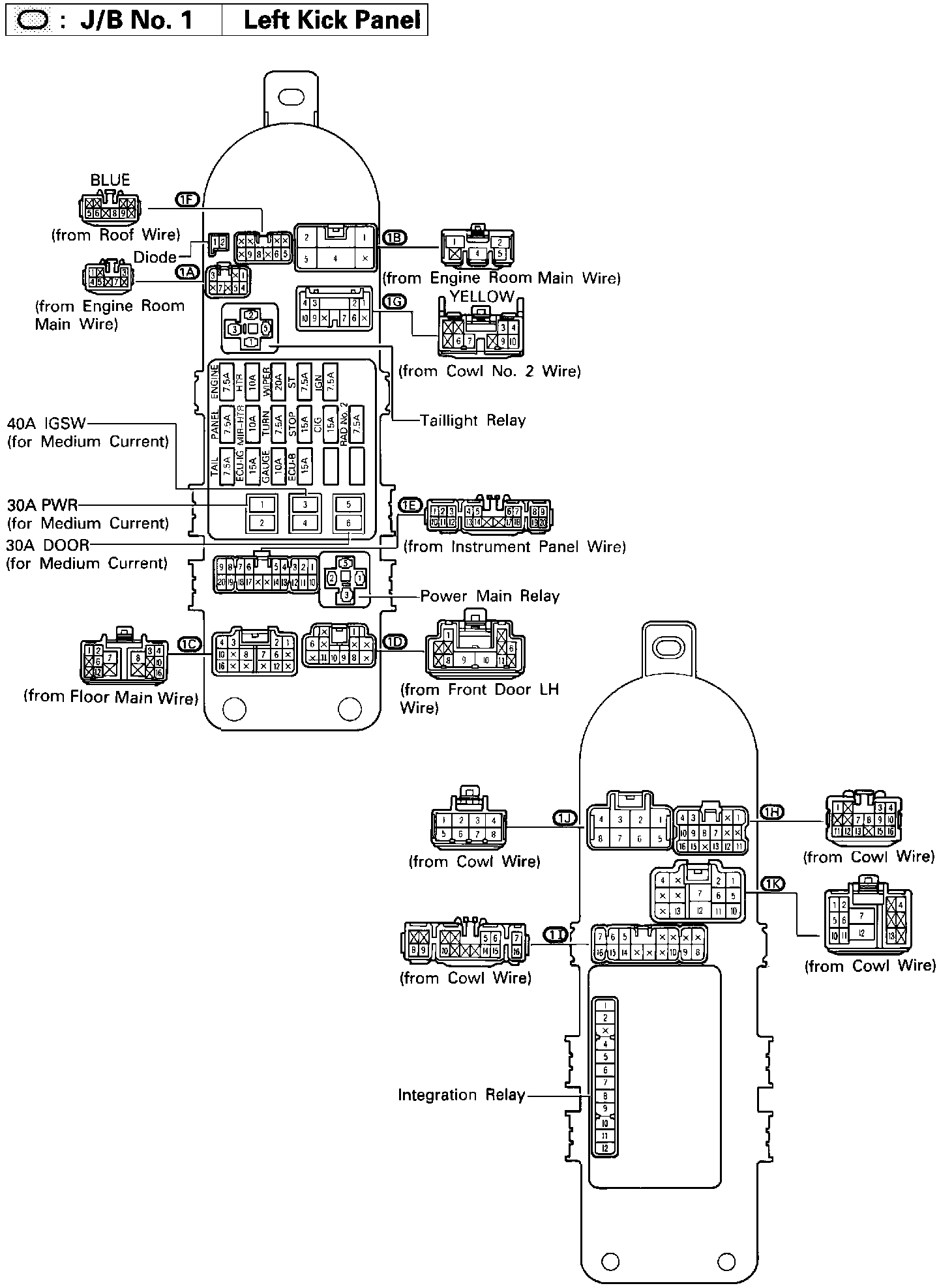

J/B No.1 Left Kick Panel (Fig 20):




FIG 20
