Crankshaft Position Sensor: Service and Repair

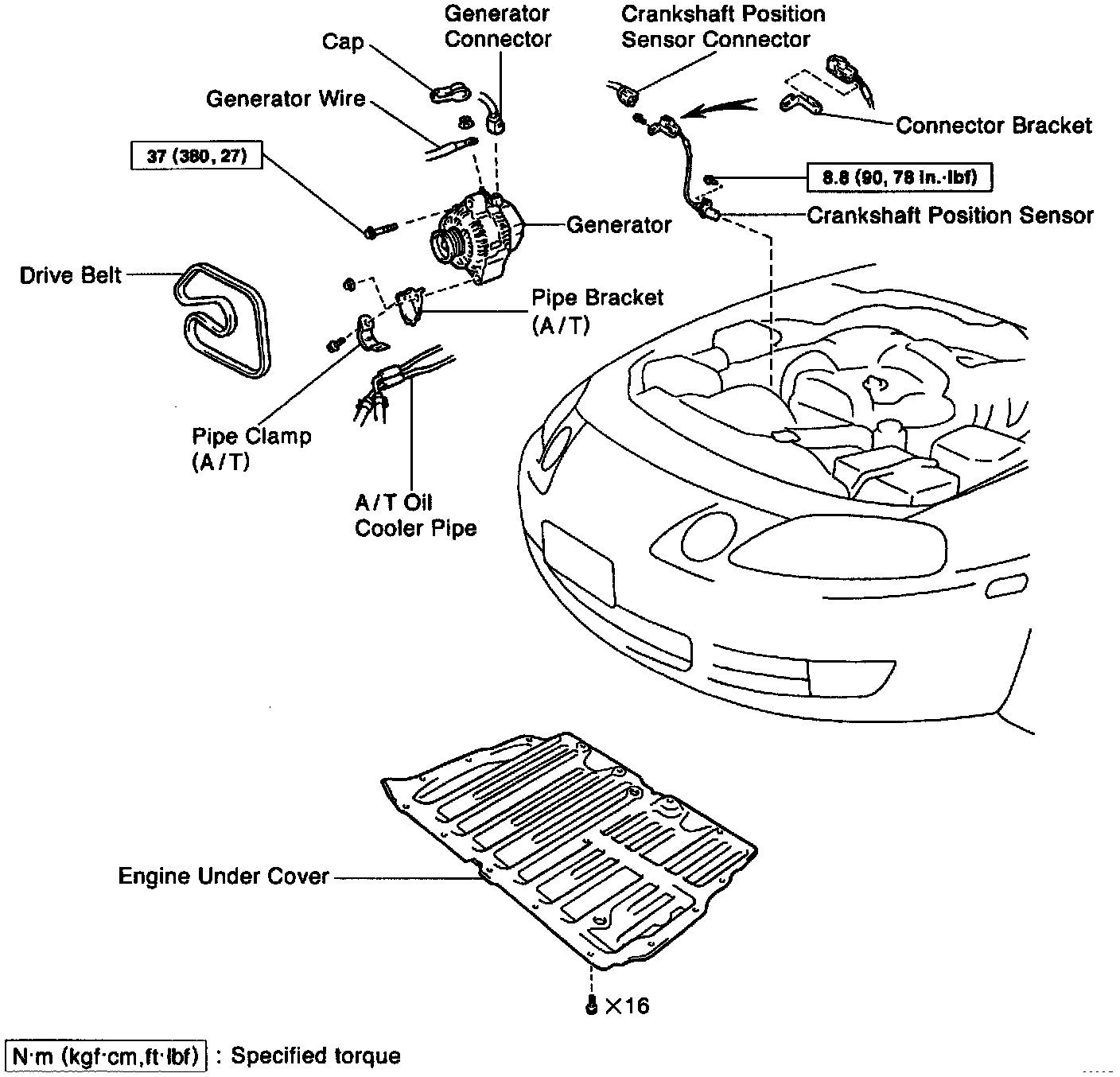

CRANKSHAFT POSITION SENSOR REMOVAL





1. REMOVE GENERATOR


2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
- Disconnect the sensor connector.





- Remove the bolt holding the connector bracket to the water pump.

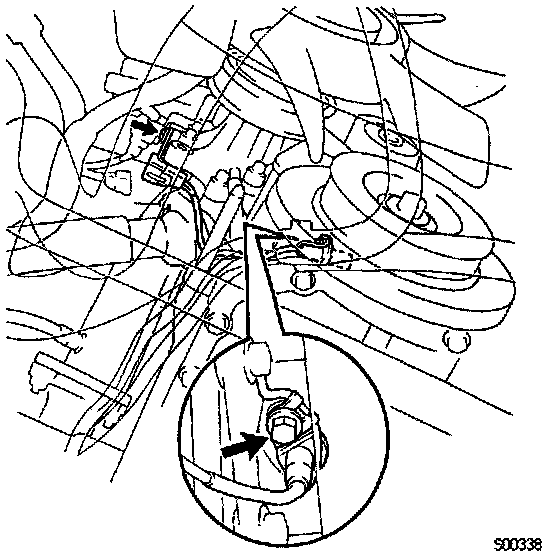

3. REMOVE CRANKSHAFT POSITION SENSOR
- Remove the bolt and crankshaft position sensor.

Torque: 8.8 N.m (90 kgf.cm, 78 in.lb.)

- Remove the connector bracket from the connector.

CRANKSHAFT POSITION SENSOR INSTALLATION

INSTALLATION HINT: Installation is in the reverse order of removal.
