Knock Sensor: Testing and Inspection

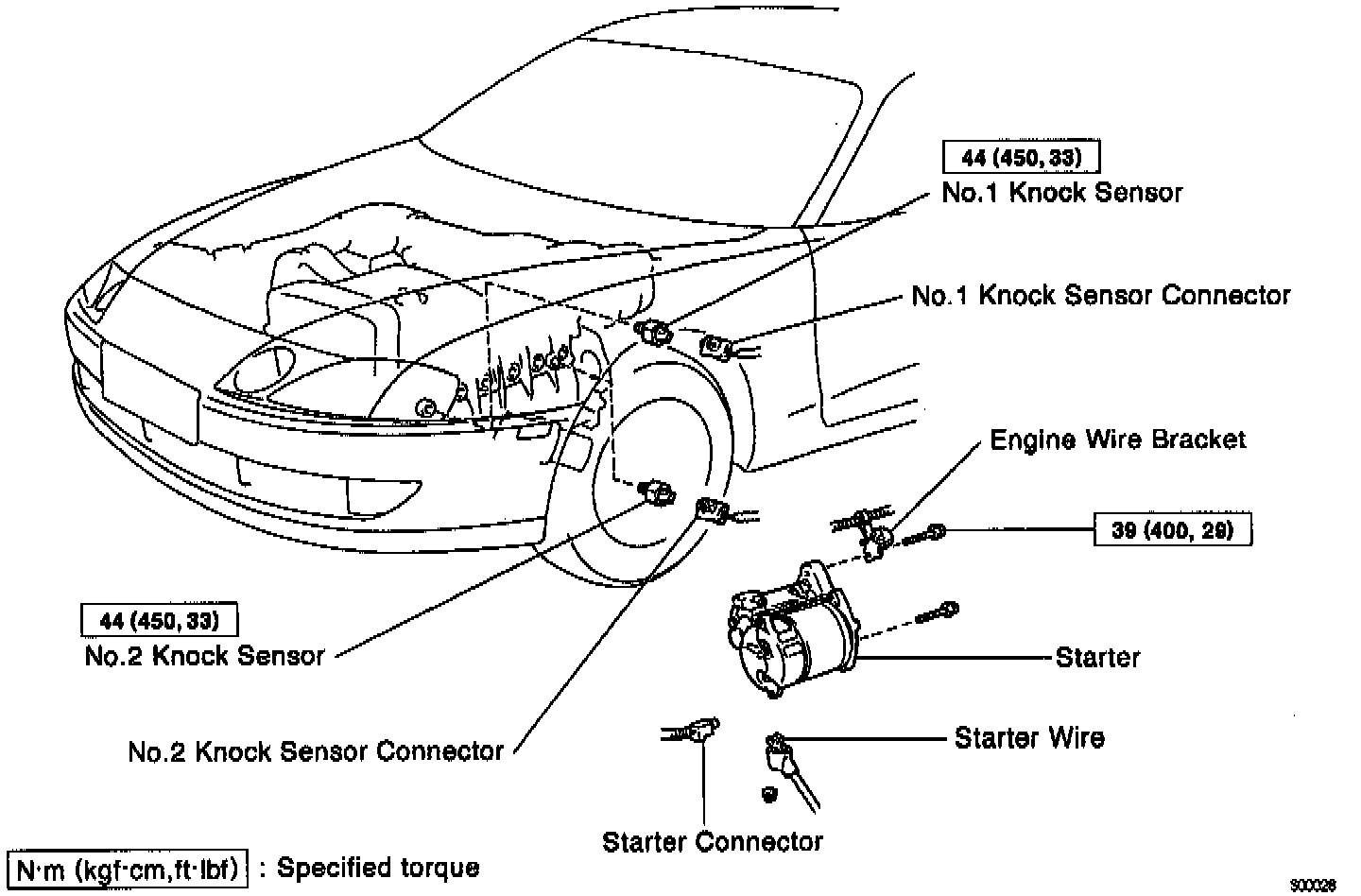

1. REMOVE STARTER.
2. REMOVE KNOCK SENSORS.
- Disconnect the knock sensor connector.





- Using SST. remove the knock sensor.
SST O9816-30010





3. INSPECT KNOCK SENSORS.
- Using an ohmmeter, check that there is no continuity between the terminal and body.
- If there is continuity, replace the sensor.
4. REINSTALL KNOCK SENSORS.
- Using SST, install the knock sensor.
SST 09816-30010

Torque: 44 N.m (450 kgf.cm, 33 ft.lb.)

- Connect the knock sensor connector.
5. REINSTALL STARTER.
