Main Switch Circuit (Cruise Control Switch)

CIRCUIT DESCRIPTION
When the cruise control main switch is turned off, the cruise control does not operate.





WIRING DIAGRAM

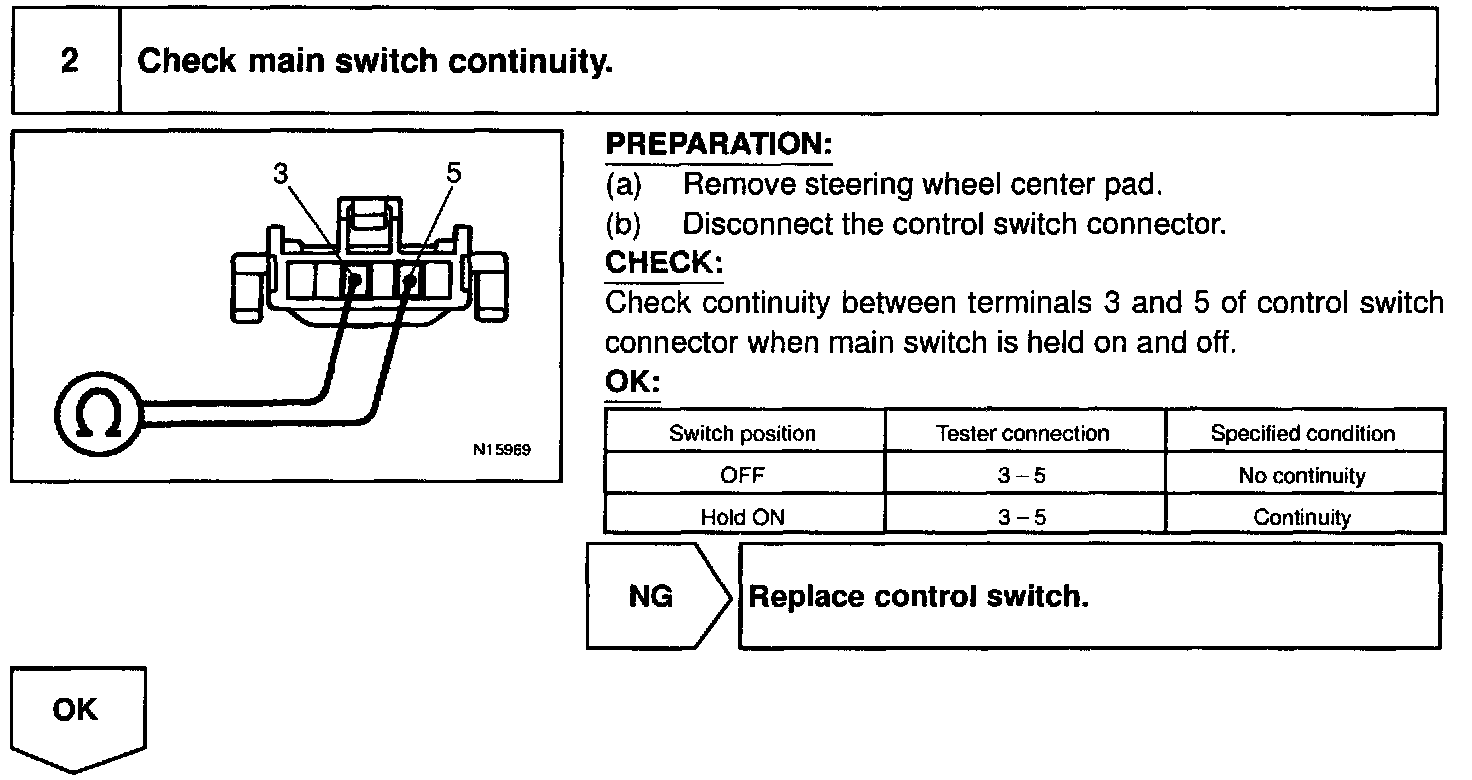

INSPECTION PROCEDURE
