Engine Compartment

For engine compartment R/B No. 2 location, see Fig 1. For Engine Compartment R/B No. 2, see POWER SOURCE (CURRENT FLOW CHART) .

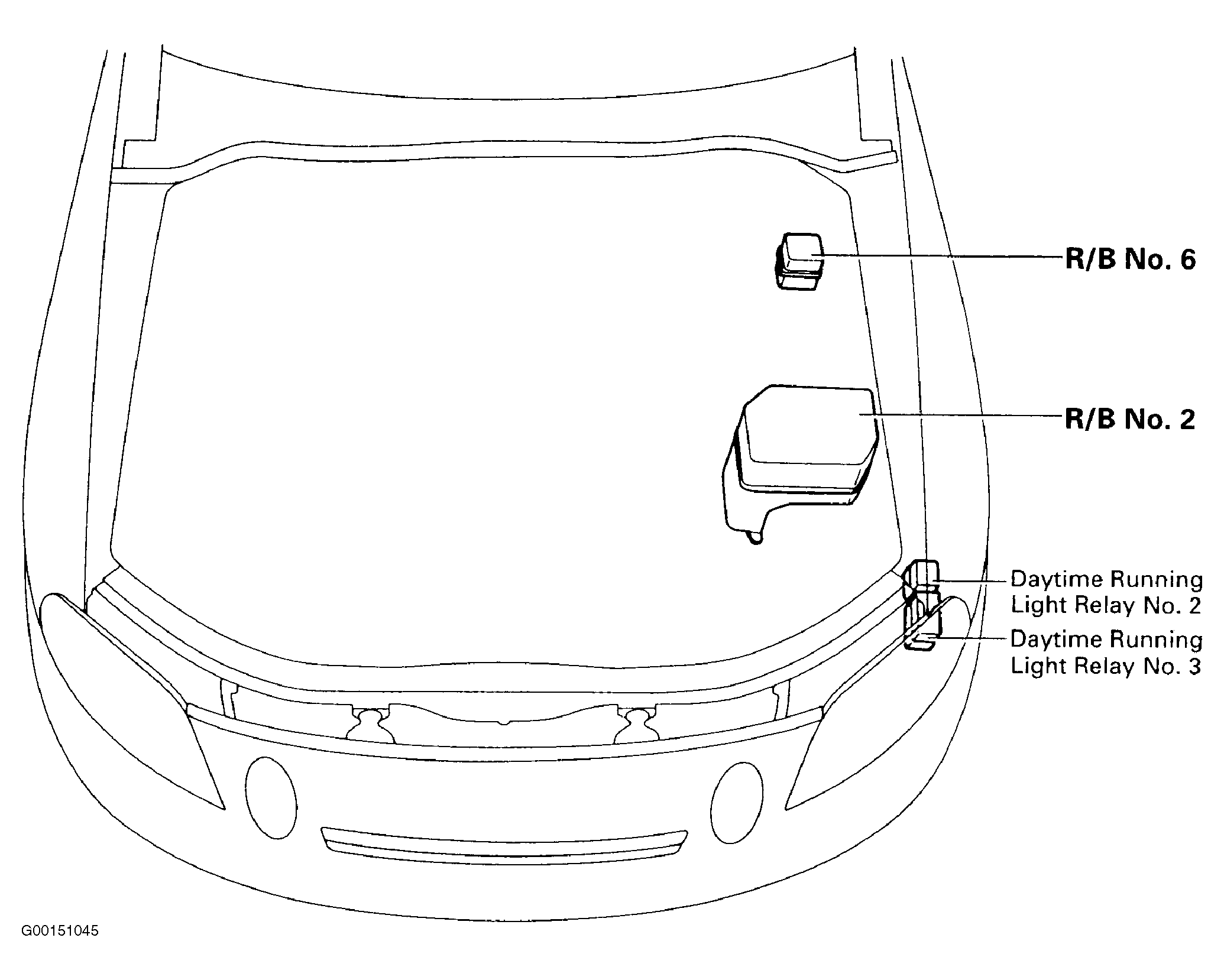

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

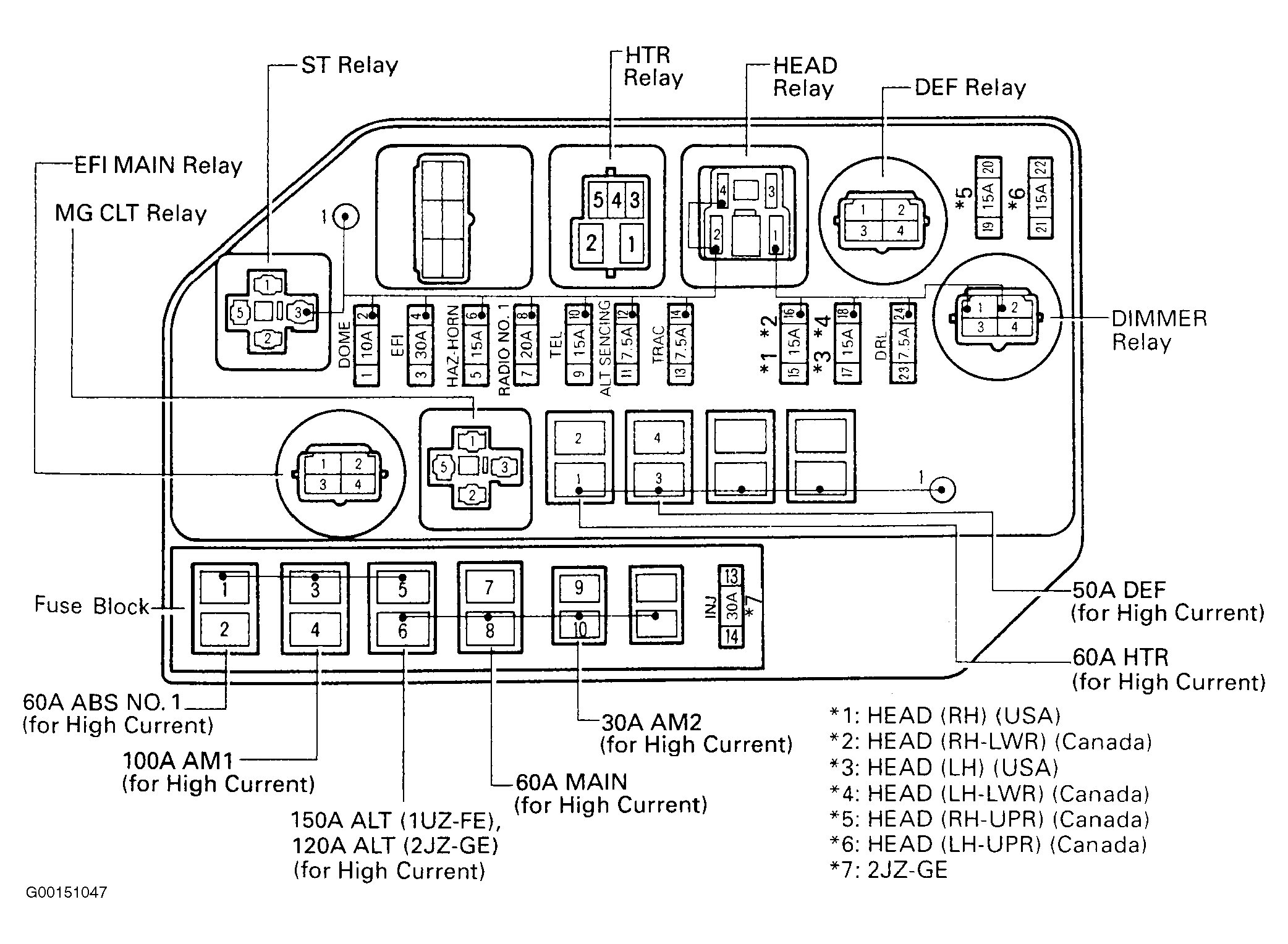

Fig 2: Identifying R/B No. 2Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
