Component Locations

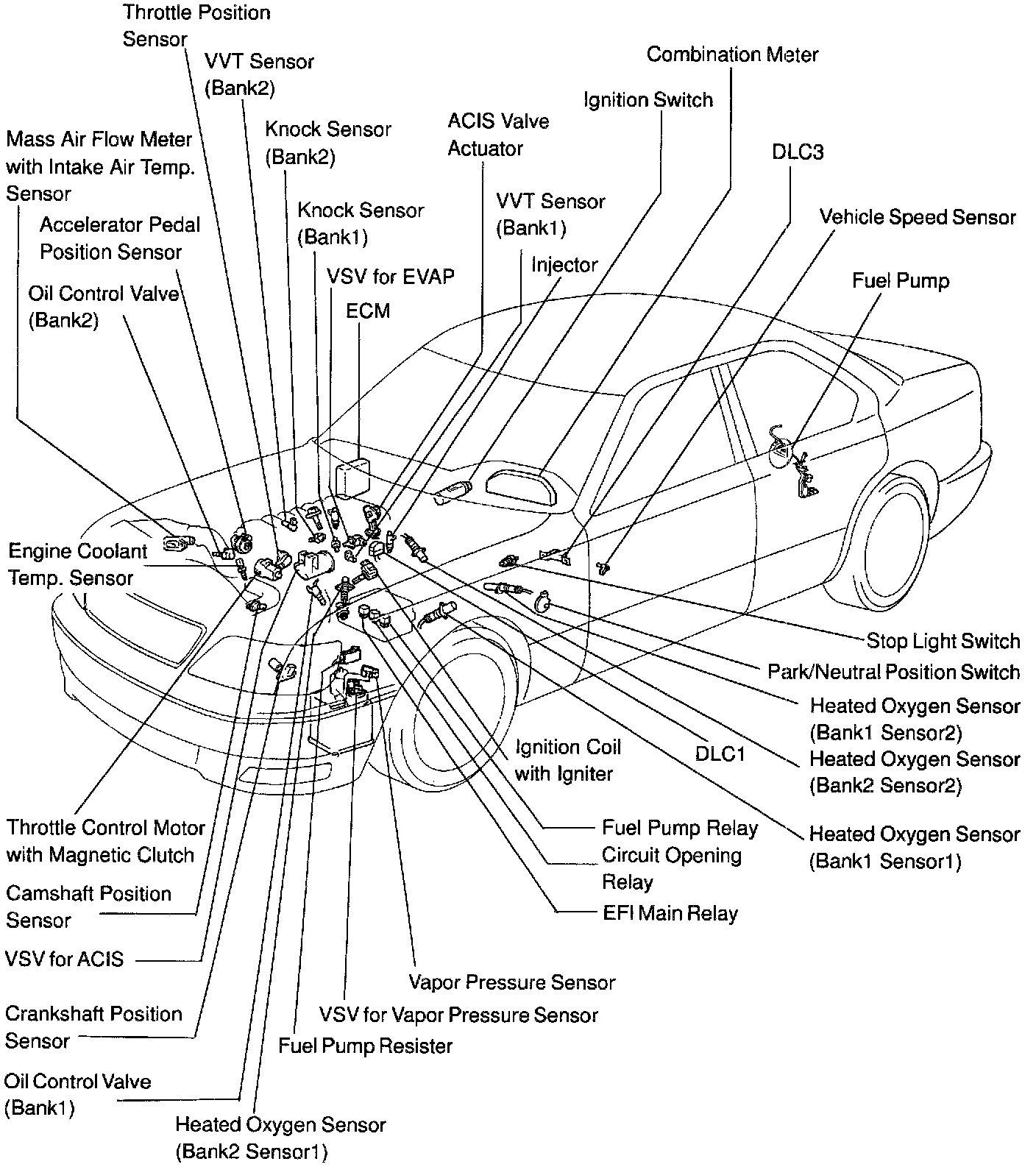

Parts Location:

PARTS LOCATION

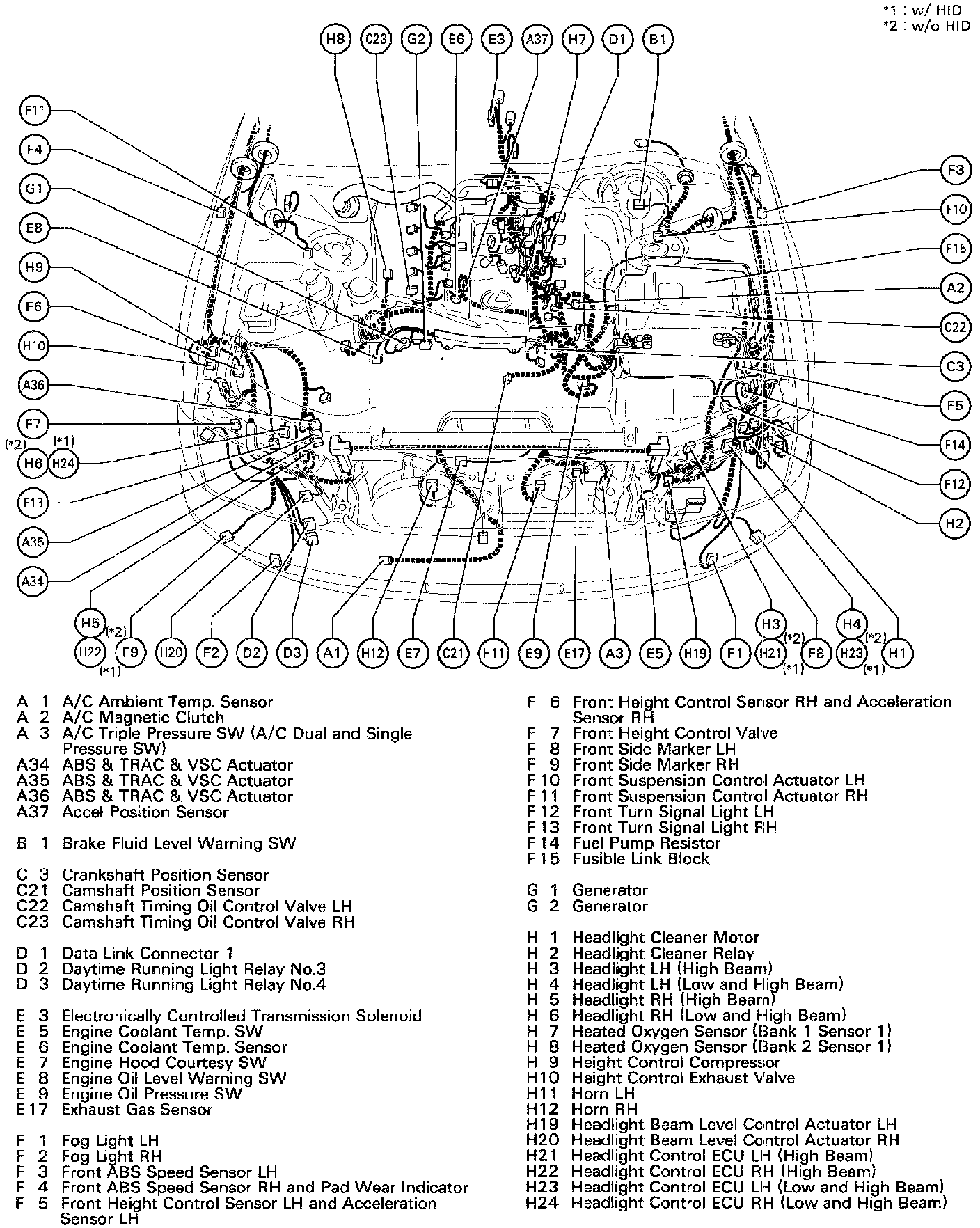

Position Of Part In Engine Compartment (Part 1 Of 2) (Fig 30):

FIG 30

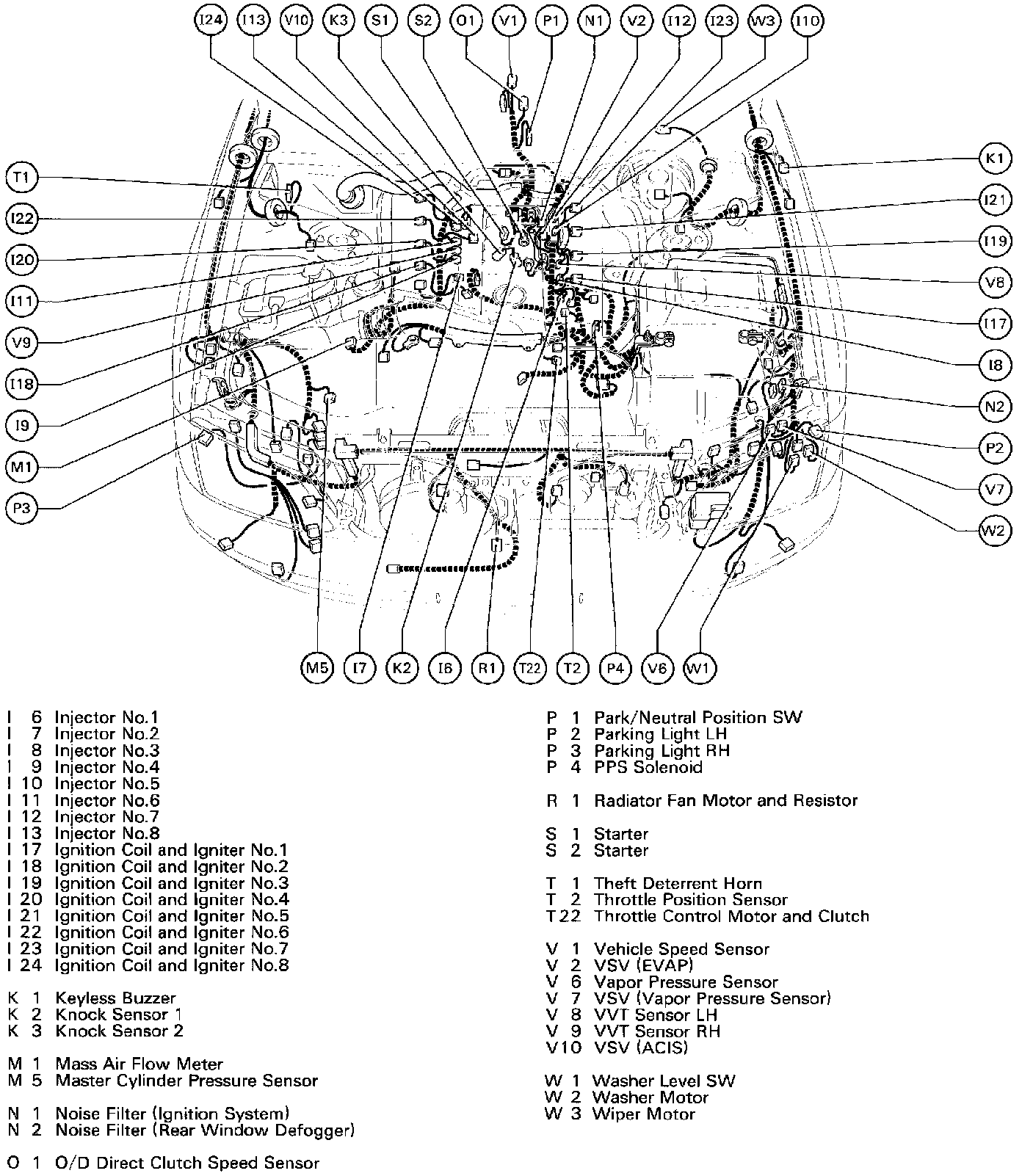

Position Of Part In Engine Compartment (Part 2 Of 2) (Fig 31):

FIG 31

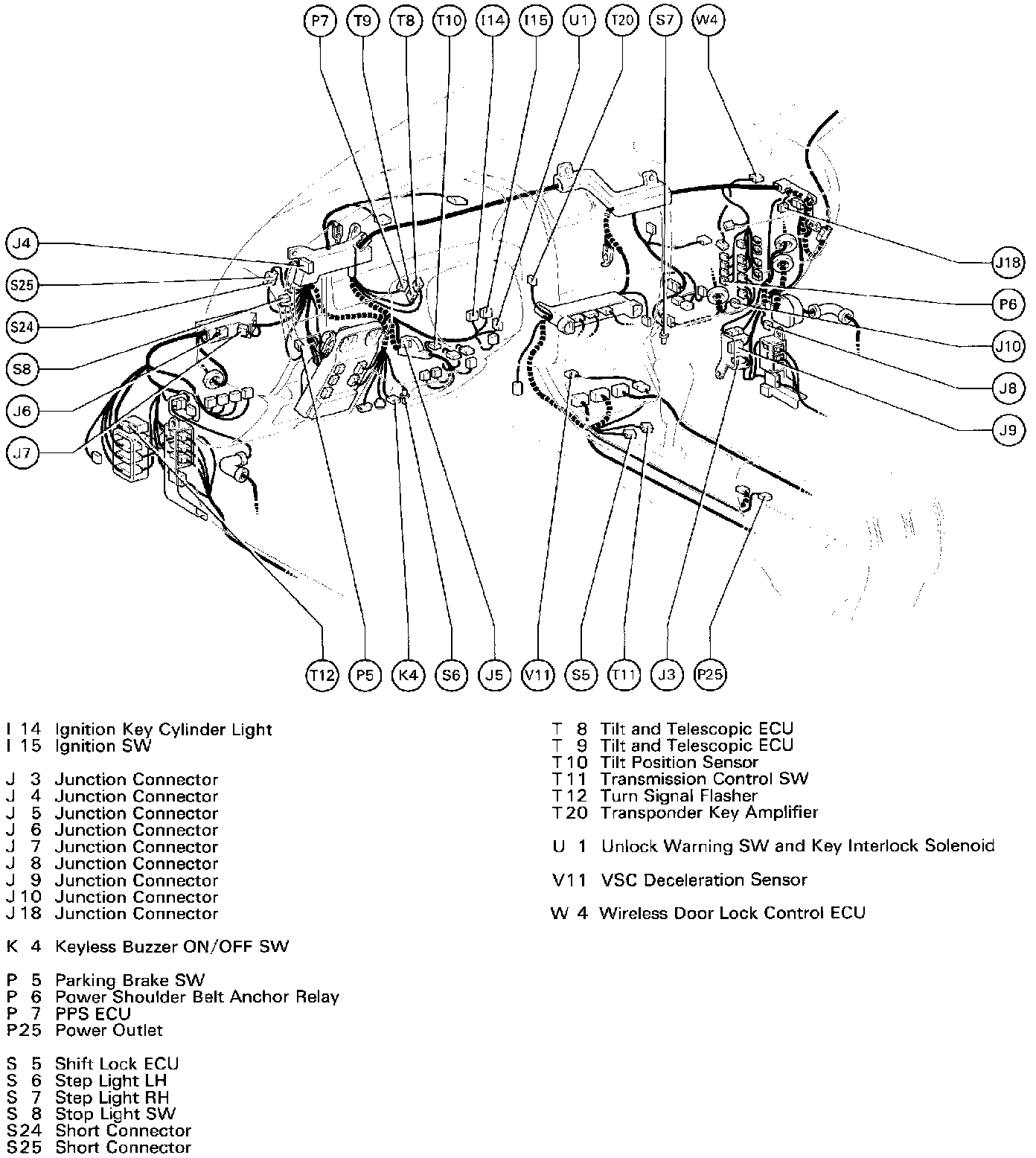

Position Of Part In Instrument Panel - [Instrument Panel 1] (Part 1 Of 2) (Fig 32):

FIG 32

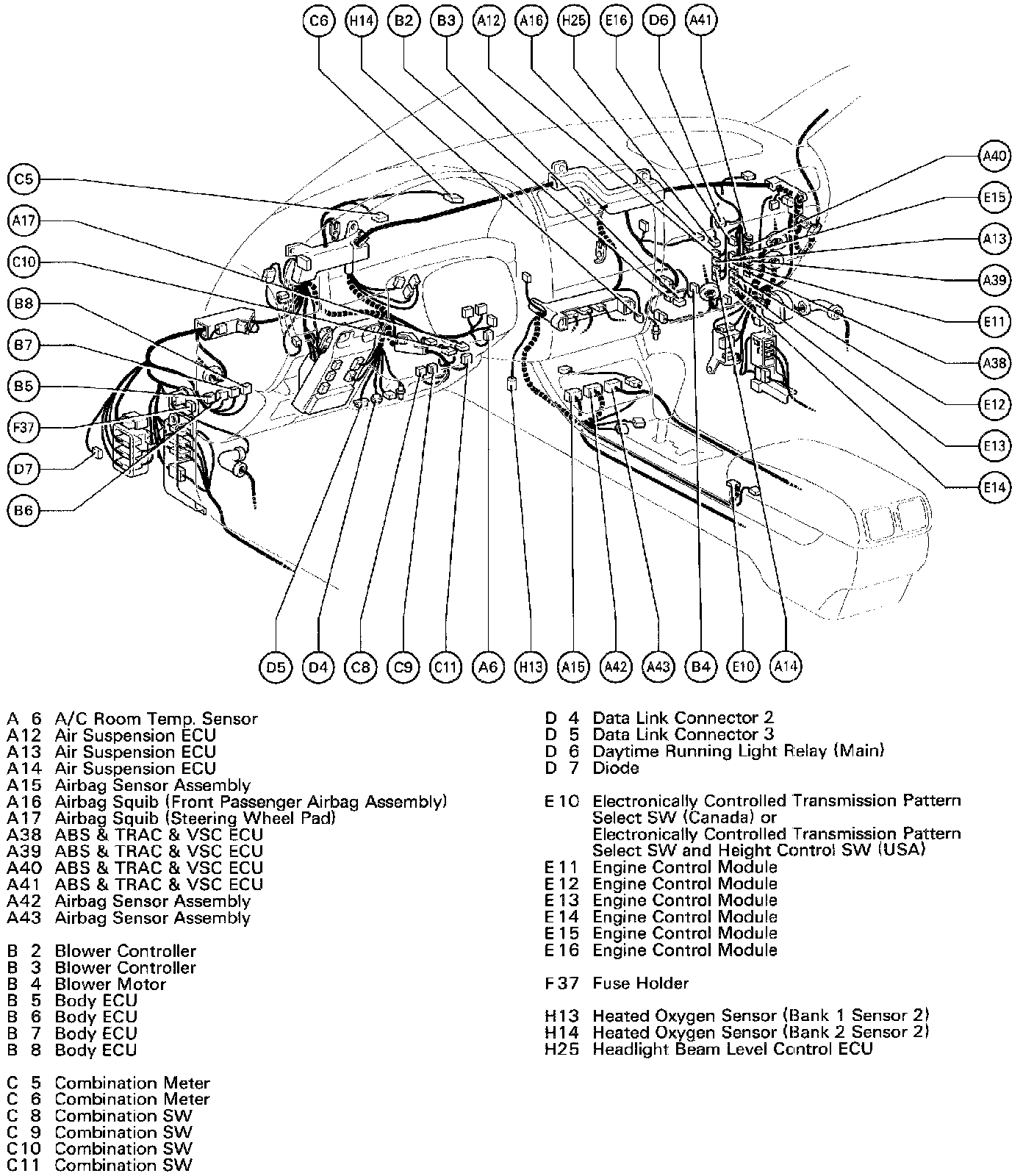

Position Of Part In Instrument Panel - [Instrument Panel 1] (Part 2 Of 2) (Fig 33):

FIG 33

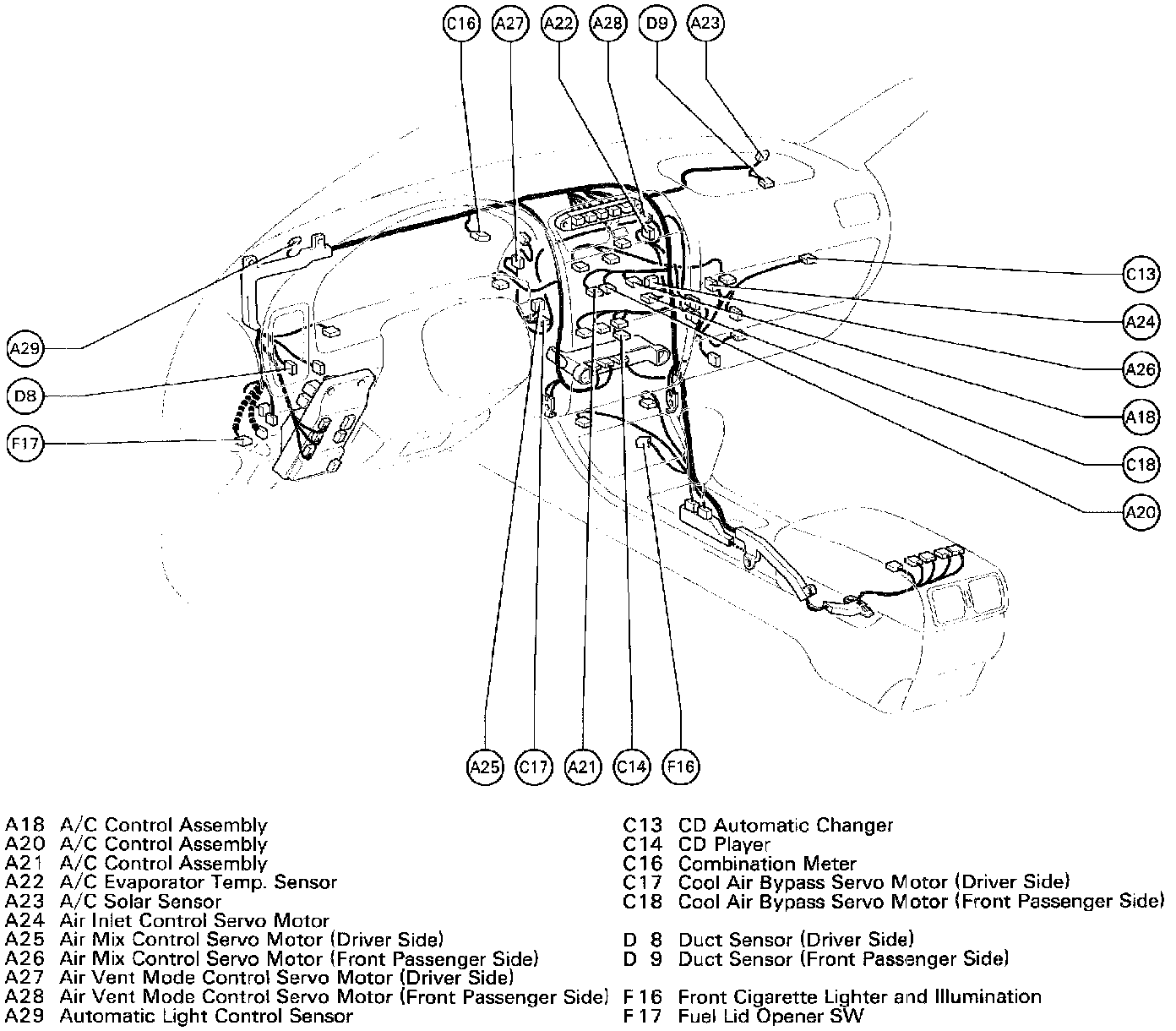

Position Of Part In Instrument Panel - [Instrument Panel 2] (Part 1 Of 2) (Fig 34):

FIG 34

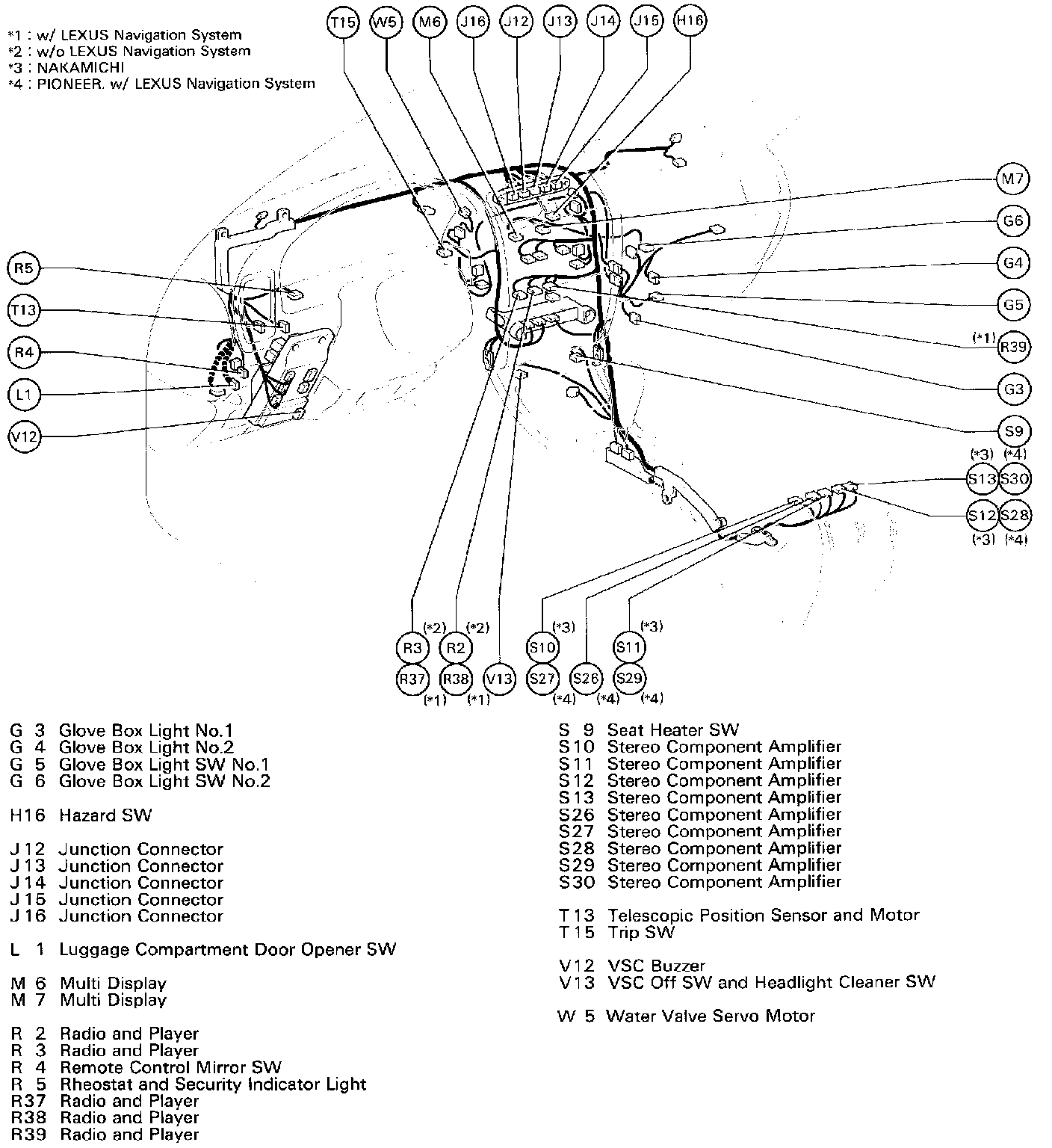

Position Of Part In Instrument Panel - [Instrument Panel 2] (Part 2 Of 2) (Fig 35):

FIG 35

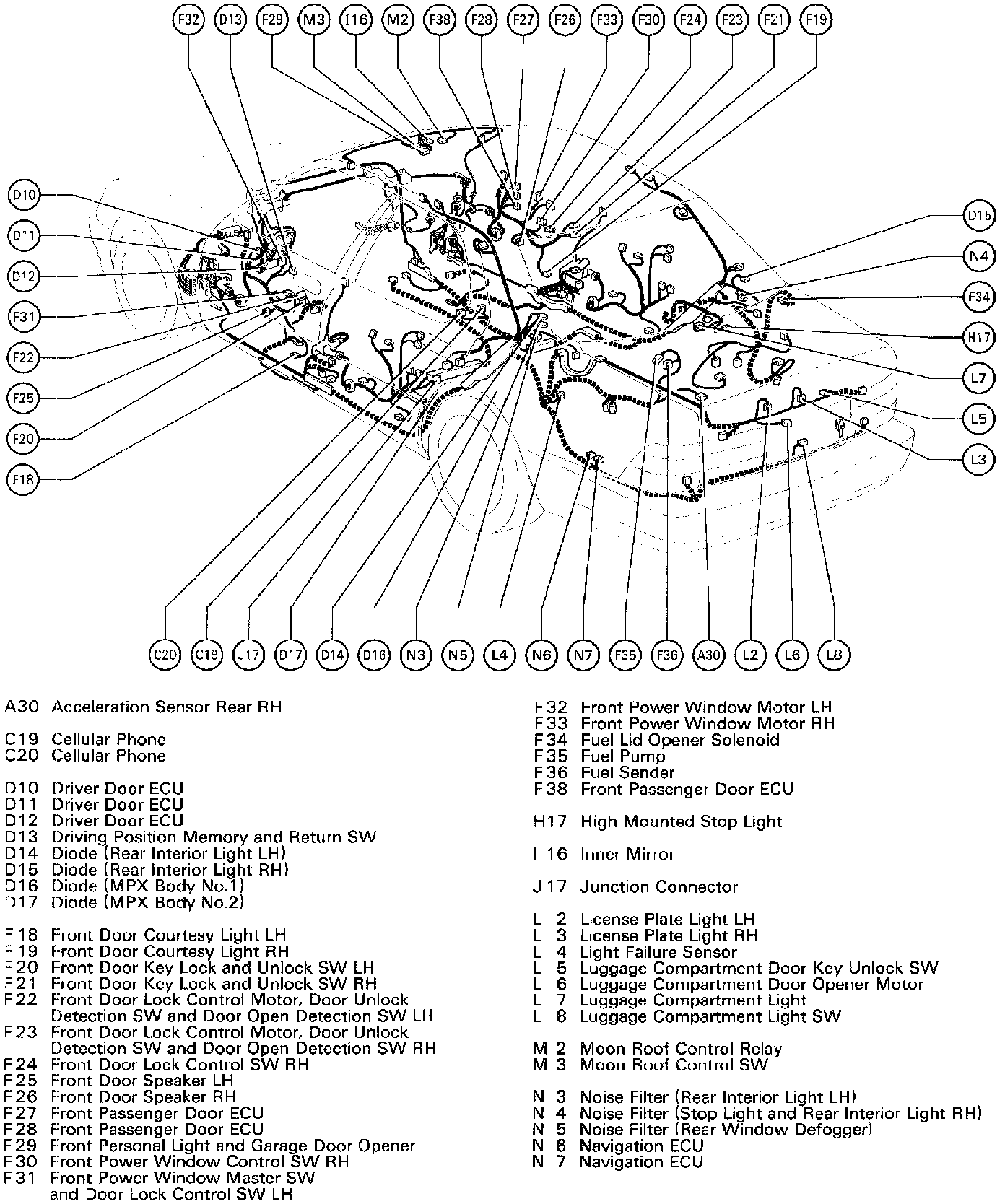

Position Of Part In Body (Part 1 Of 2) (Fig 36):

FIG 36
