Connector Locations

Junction Block and Wire Harness Connector:

JUNCTION BLOCK AND WIRE HARNESS CONNECTOR

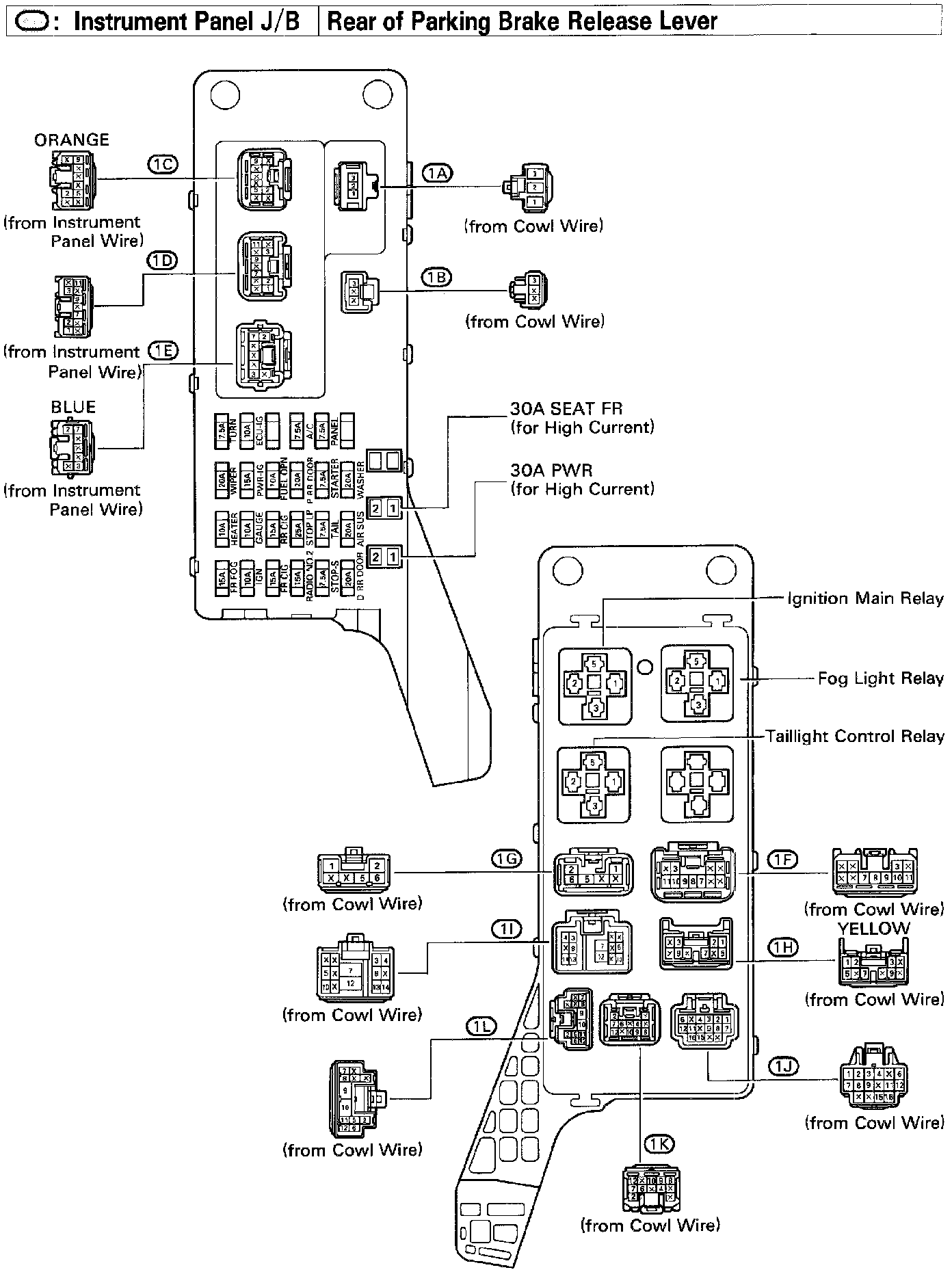

Instrument Panel J/B - Rear Of Parking Brake Release Lever (Fig 20):

FIG 20

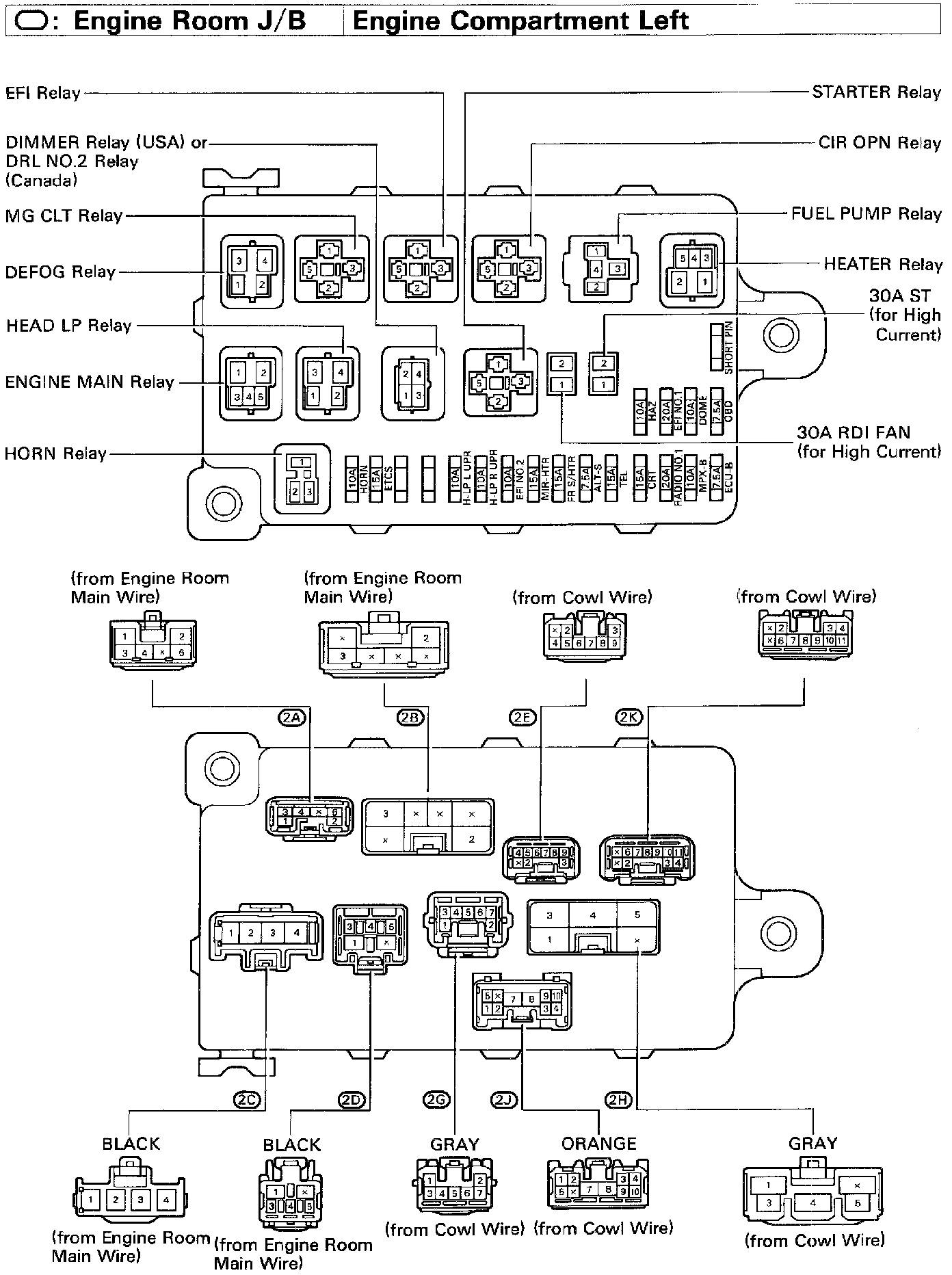

Engine Room J/B - Engine Compartment Left (Fig 22):

FIG 22

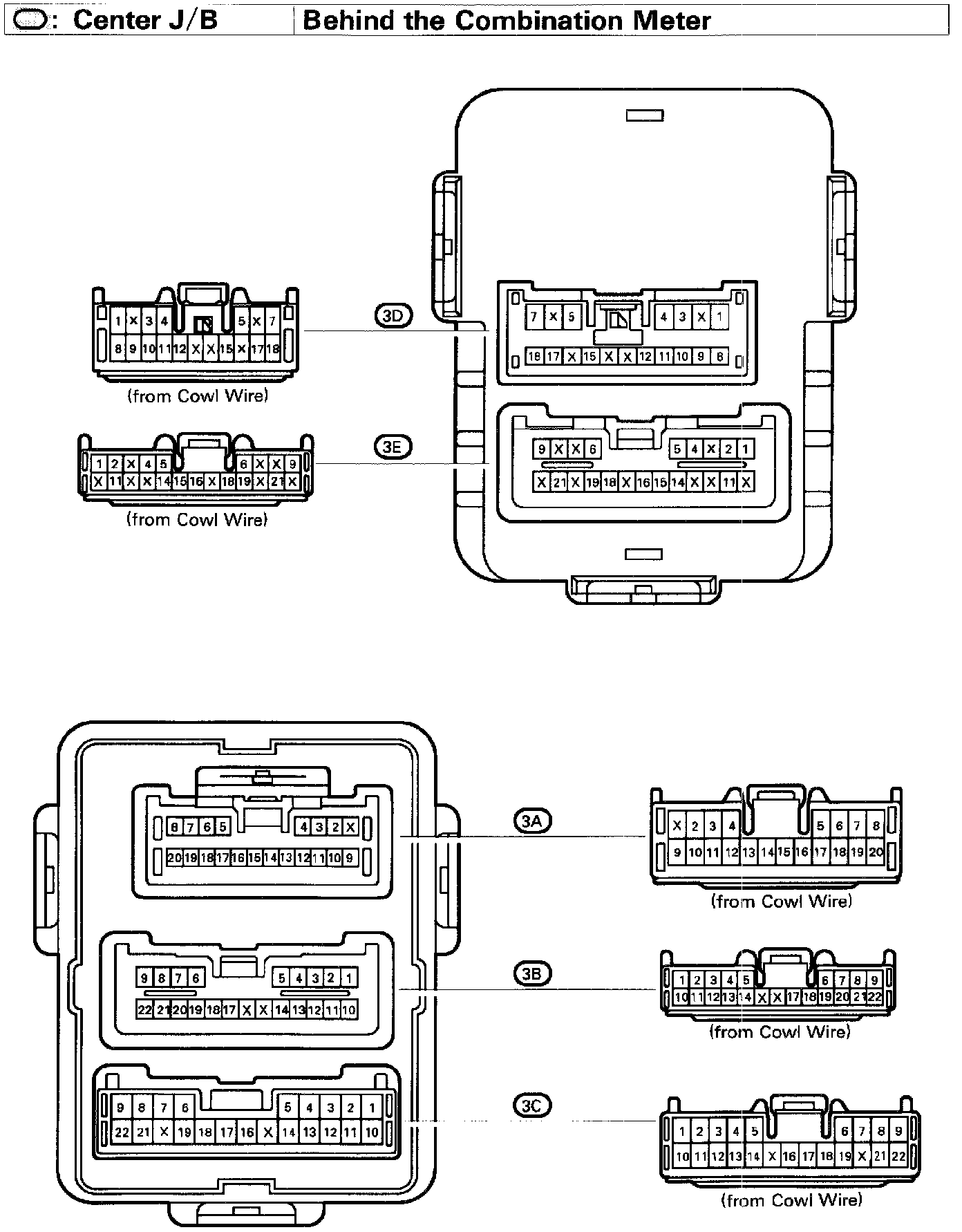

Center J/B - Behind The Combination Meter (Fig 24):

FIG 24

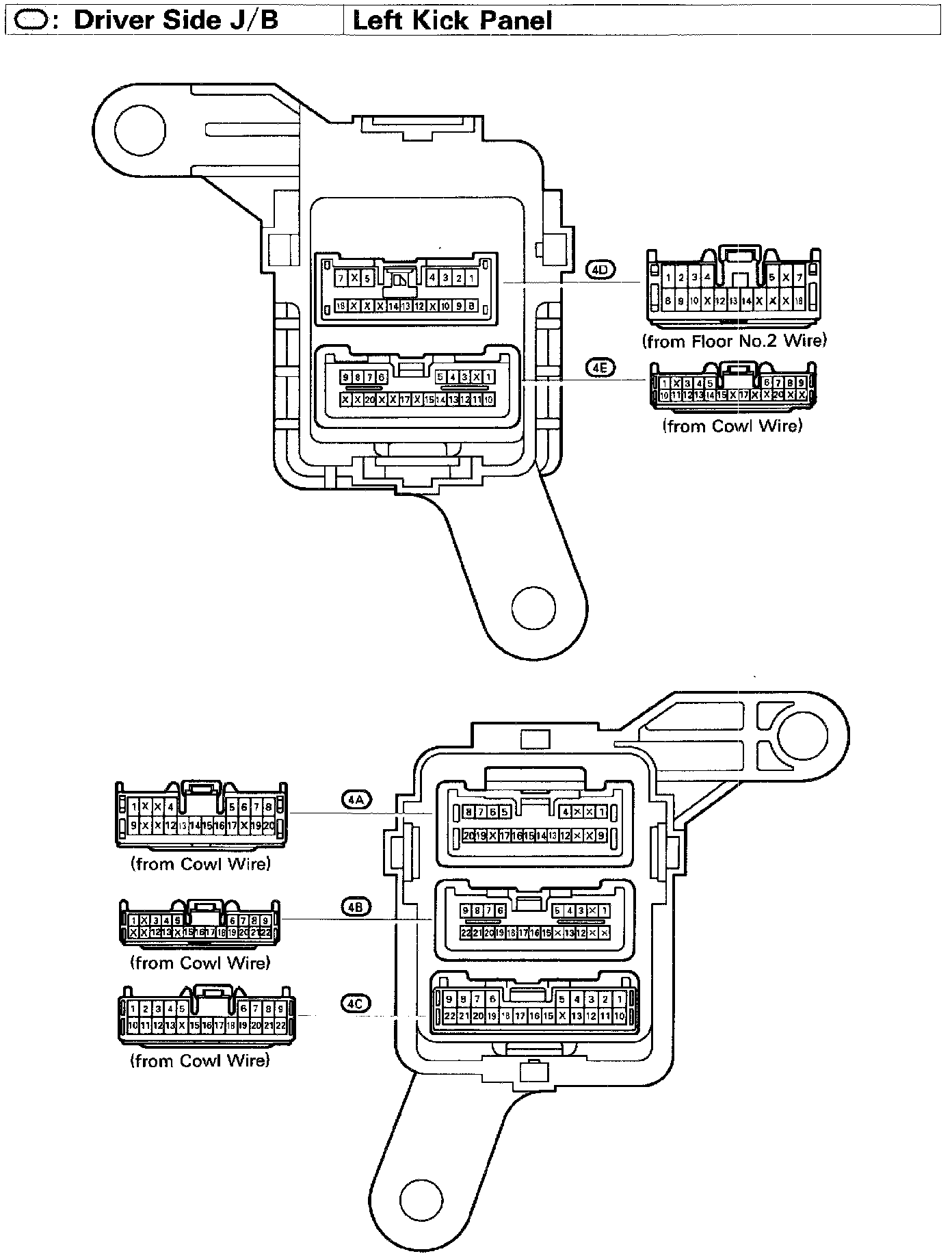

Driver Side J/B - Left Kick Panel (Fig 26):

FIG 26
