Engine Control Module (ECM): Removal

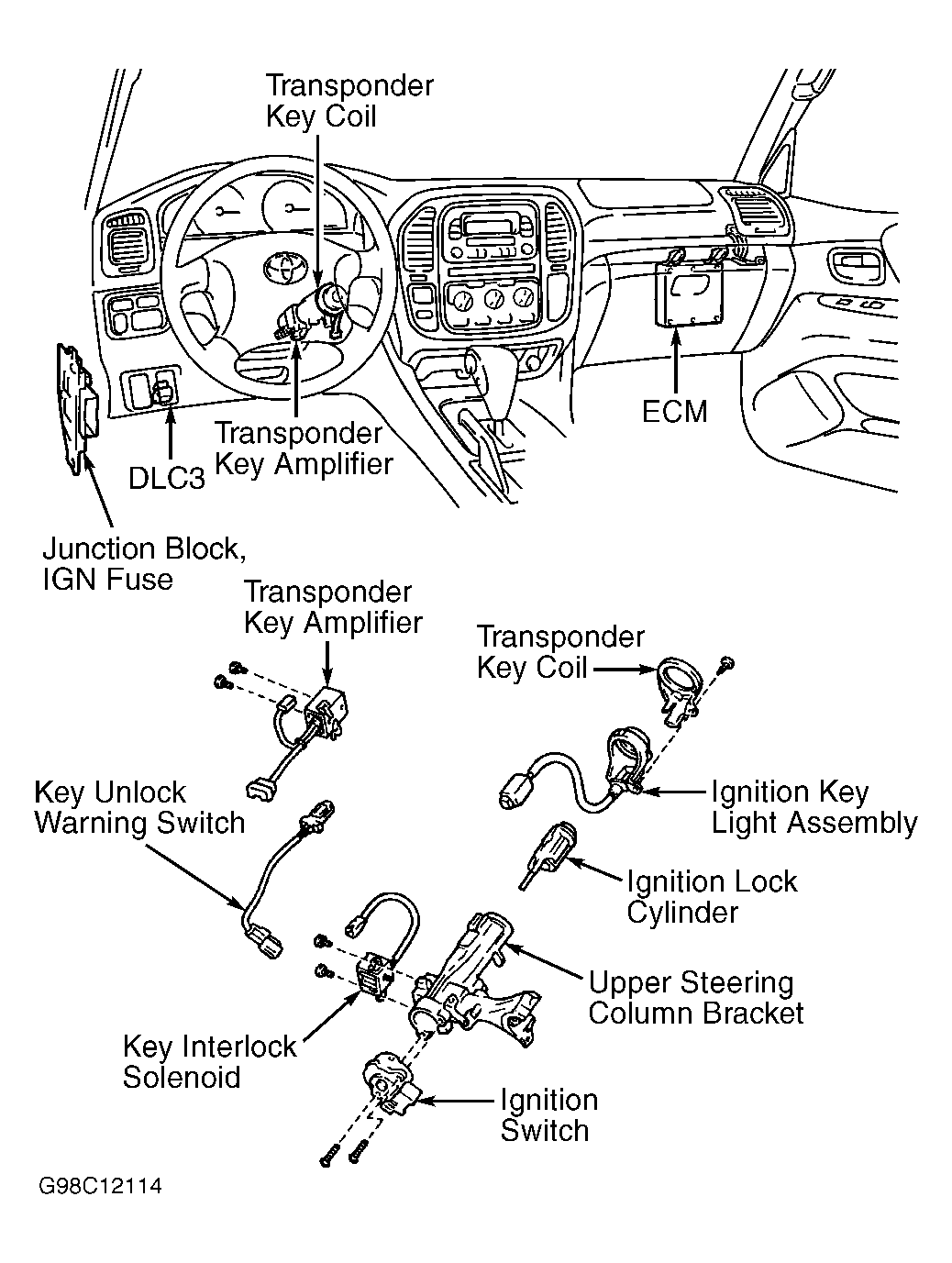

Disconnect negative battery cable. ECM is located behind the glove box. See Figure. Remove glove box door with glove box and panel for access to ECM. Disconnect electrical connectors at ECM. Remove retaining bolts and ECM.
