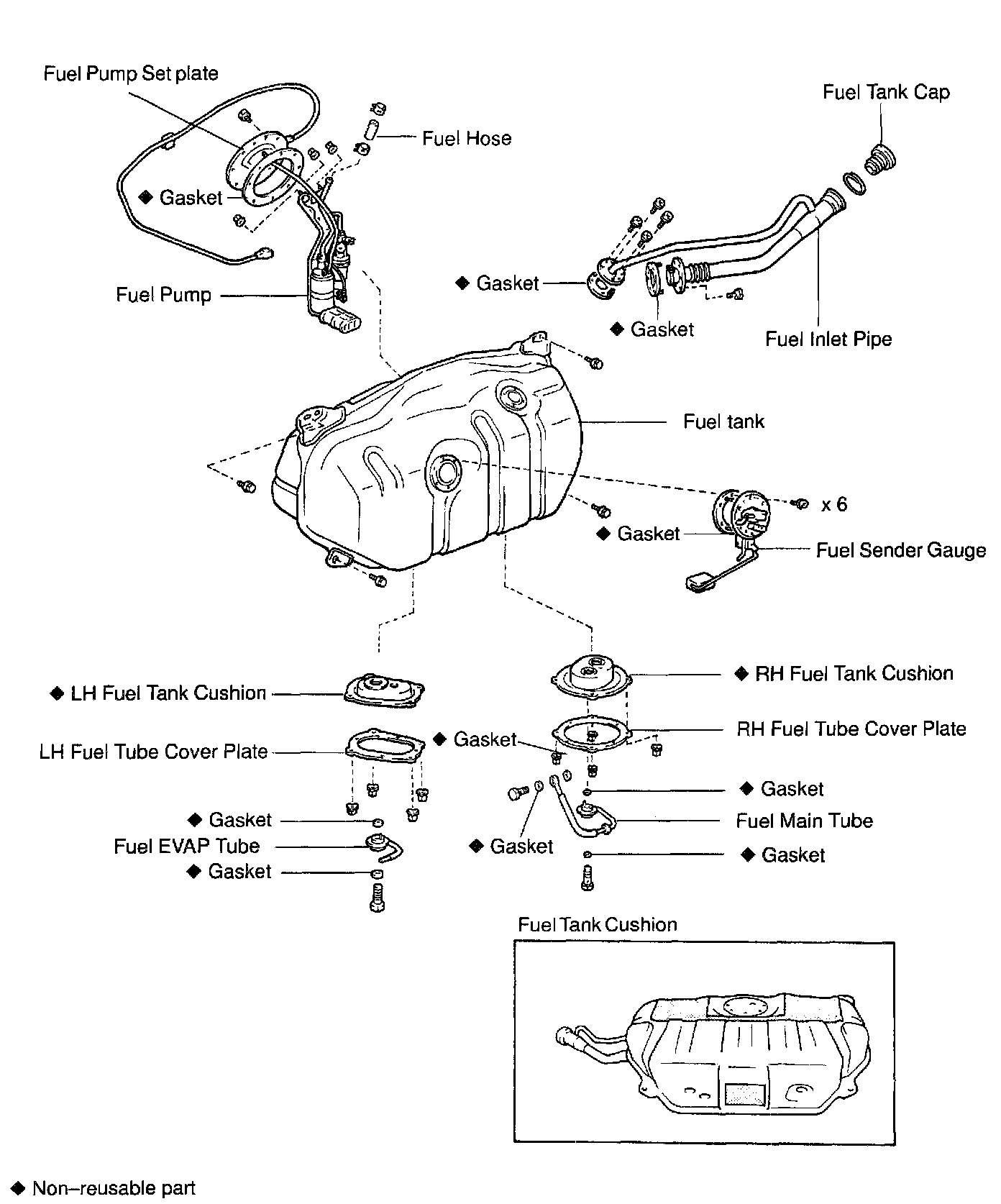

Fuel Tank





1. Always use new gaskets when replacing the fuel tank or components part.
2. Apply the proper torque to all parts tightened.
