ACC Power Source Circuit

CIRCUIT DESCRIPTION
This circuit supplies power to the A/C control assembly.




WIRING DIAGRAM

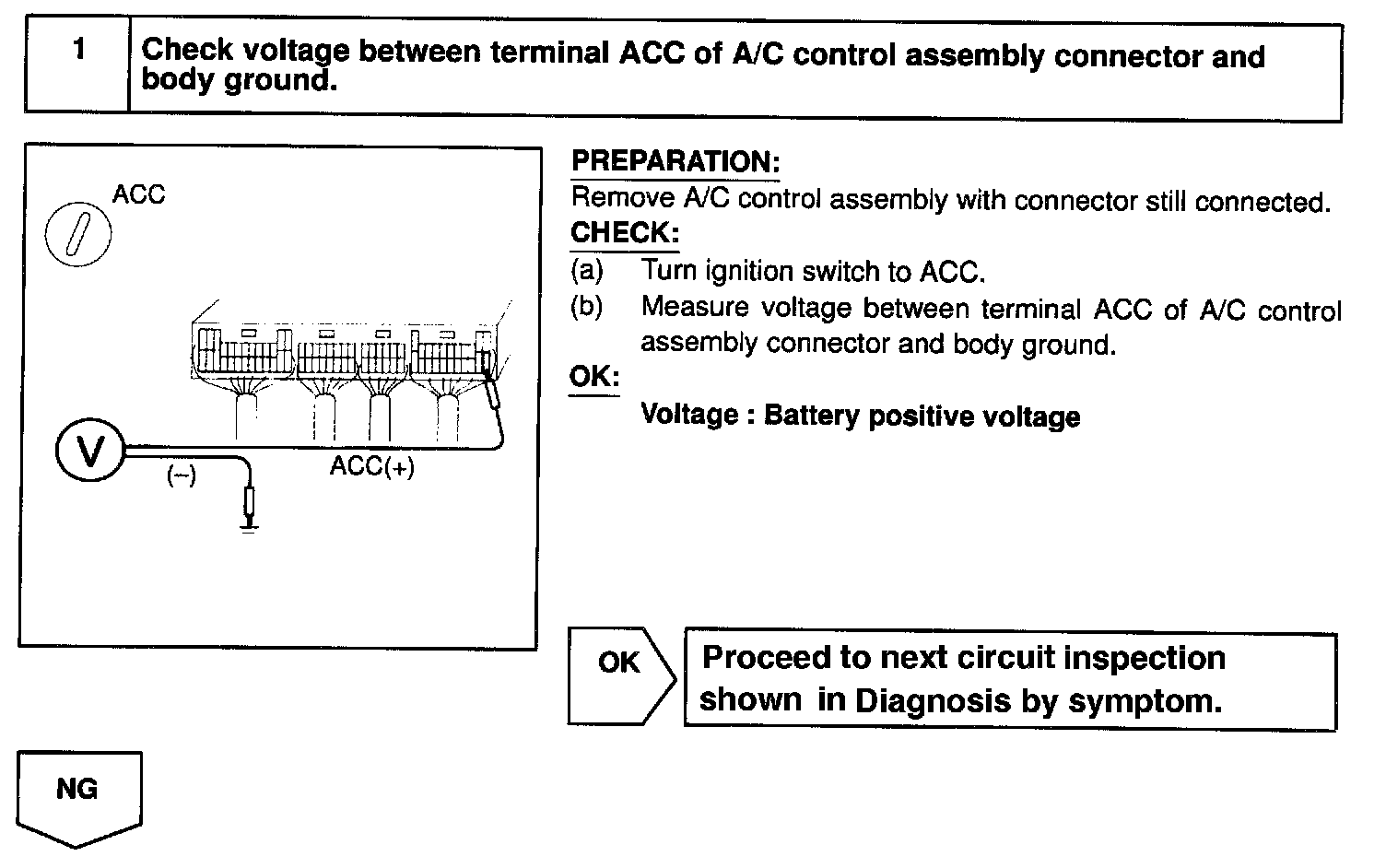

Step 1:

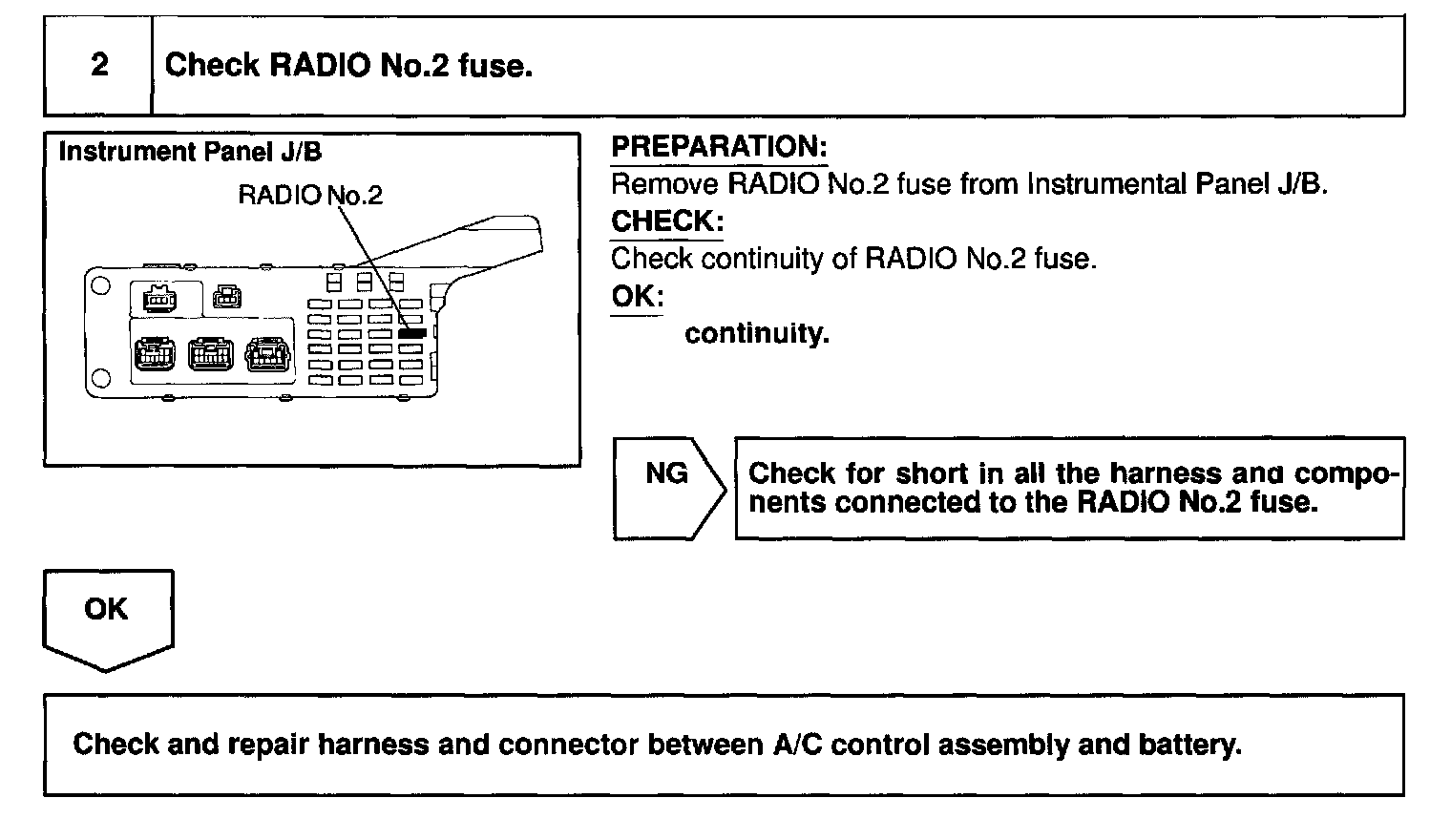

Step 2:




INSPECTION PROCEDURE
