Crankshaft Position Sensor: Service and Repair

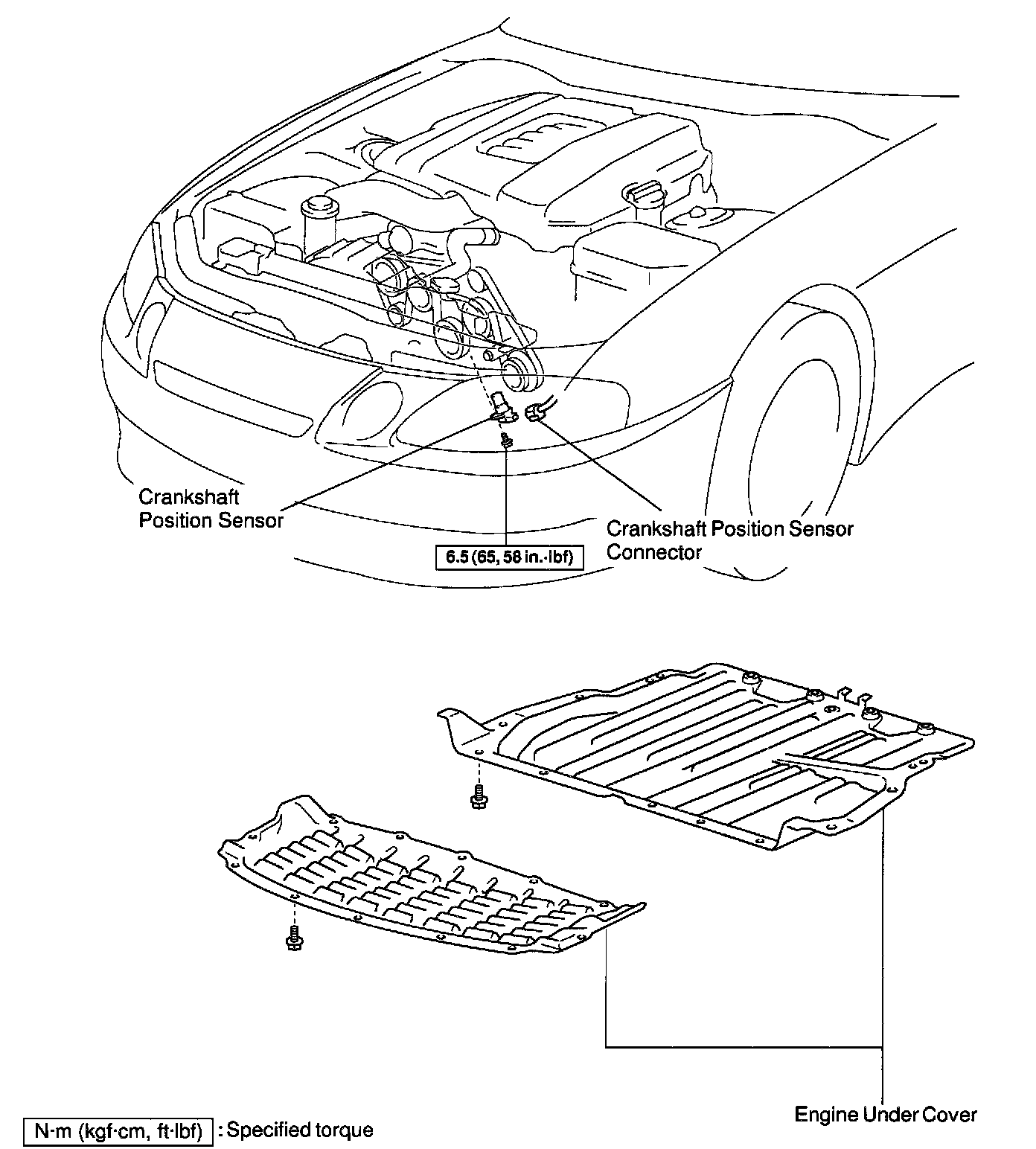

COMPONENTS

REMOVAL





1. REMOVE ENGINE UNDER COVERS
2. DISCONNECT CRANKSHAFT POSITION SENSOR CONNECTOR
3. REMOVE CRANKSHAFT POSITION SENSOR

Torque: 6.5 N.m (65 kgf.cm, 58 in.lbf)

INSTALLATION
Installation is in the reverse order of removal.
