Oxygen Sensor: Locations

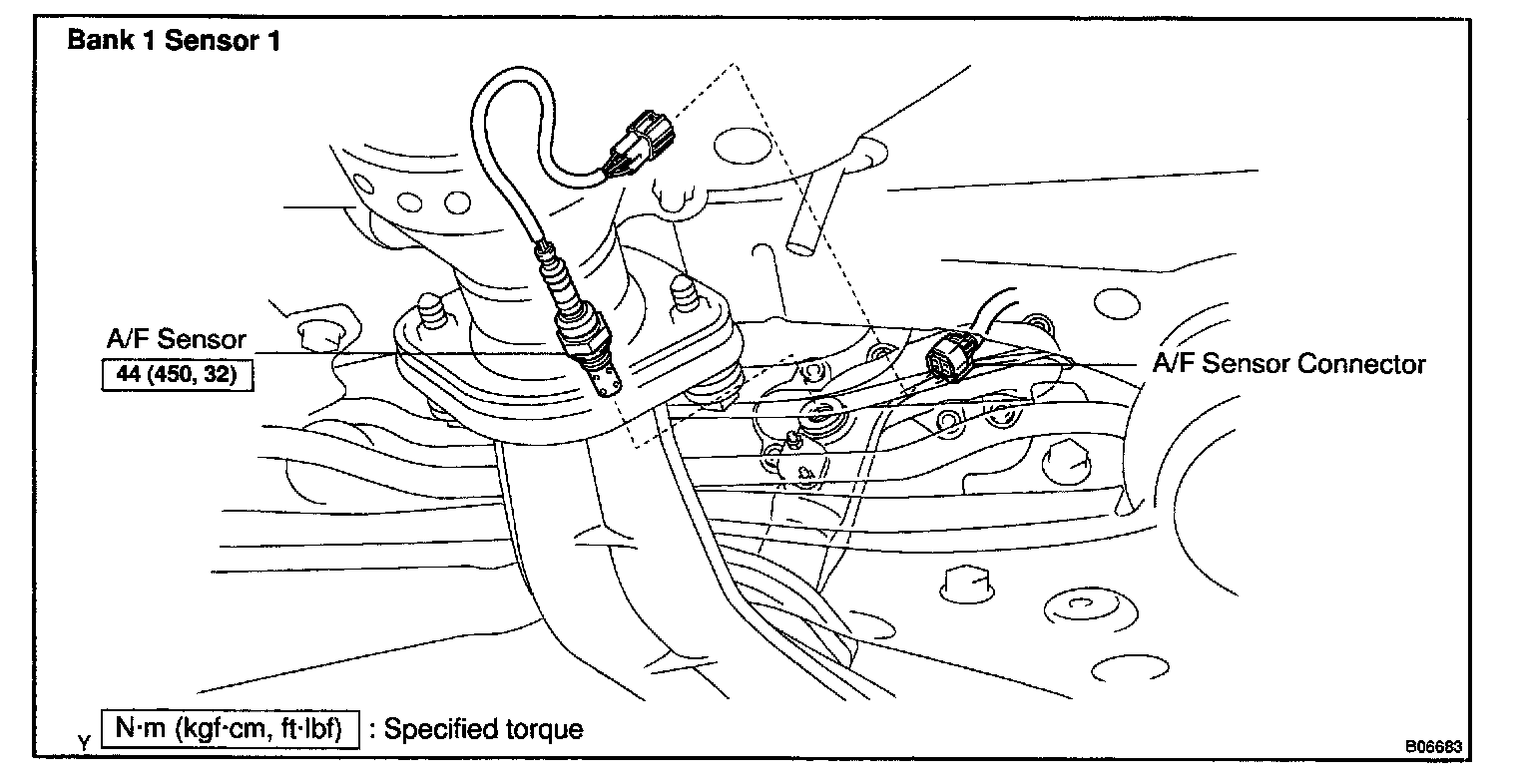

Air-Fuel Ratio Sensor/Bank 1 Sensor 1:

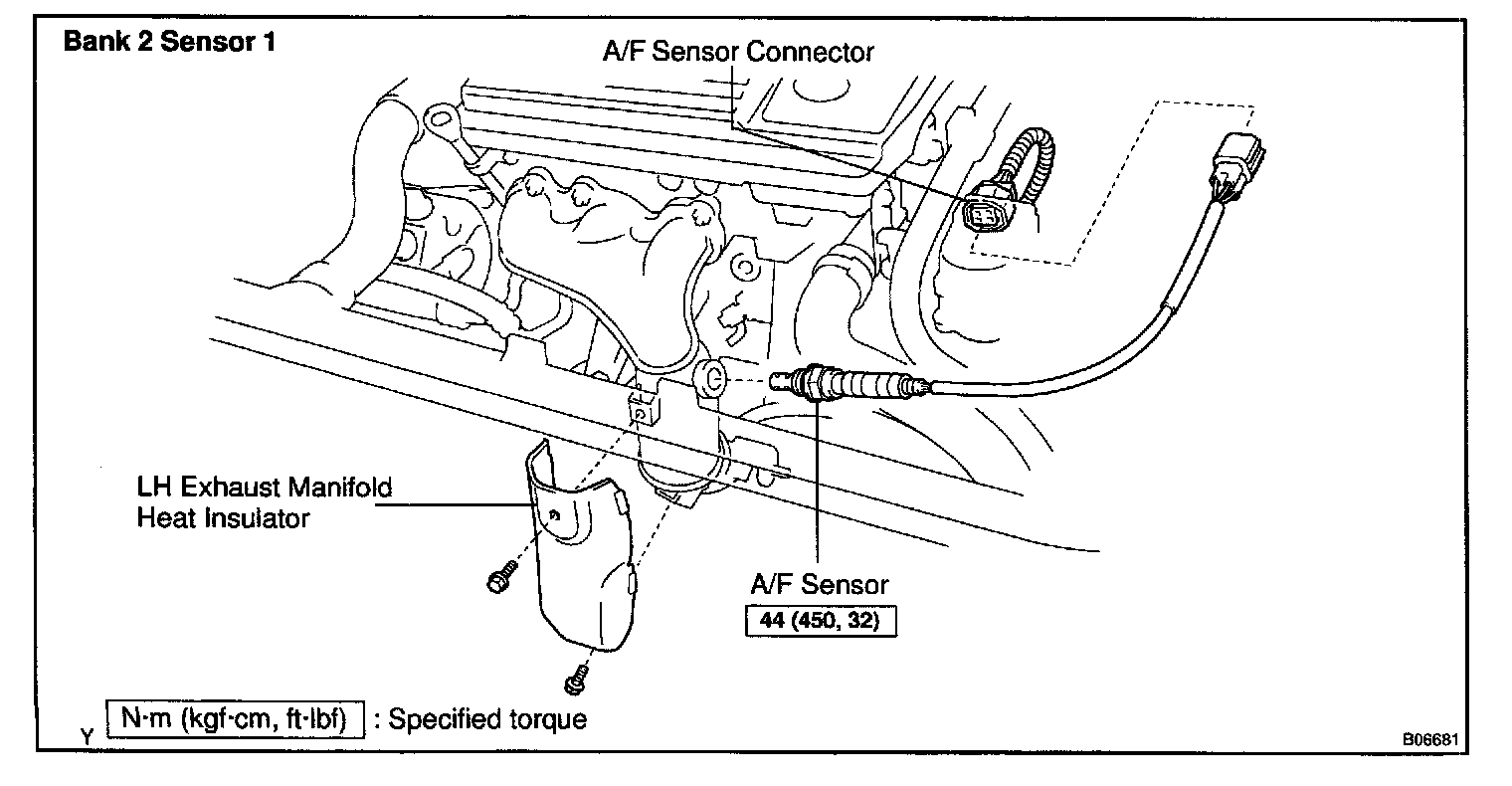

Air-Fuel Ratio Sensor:

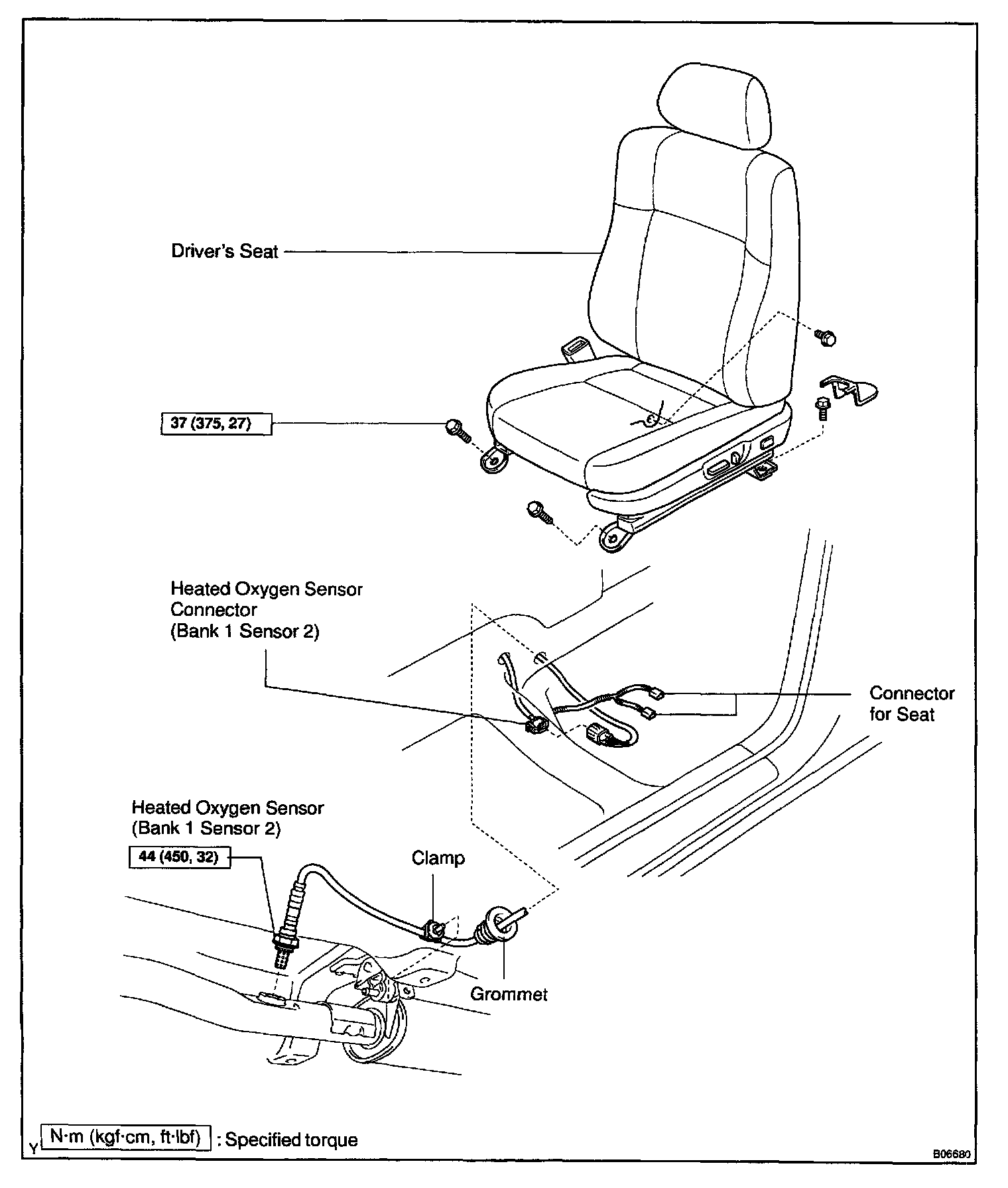

Heated Oxygen Sensor:
