IACV Control Circuit

CIRCUIT DESCRIPTION

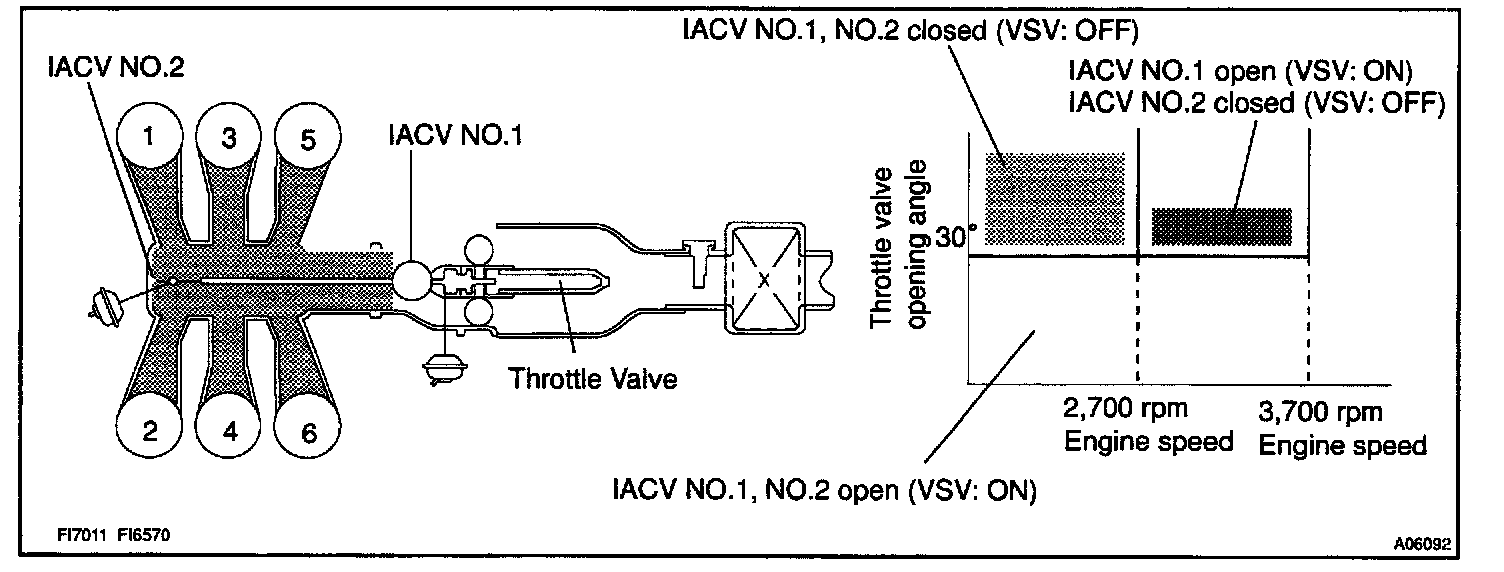

This circuit opens and closes the IACV (Intake Air Control Valve) in response to the engine load in order to increase the intake efficiency (ACIS: Acoustic Control Induction System).
When the engine speed is 3,700 rpm or less and the throttle valve opening angle is 30° or more, the ECM turns the two VSV ON or OFF and operate the IACV.




WIRING DIAGRAM

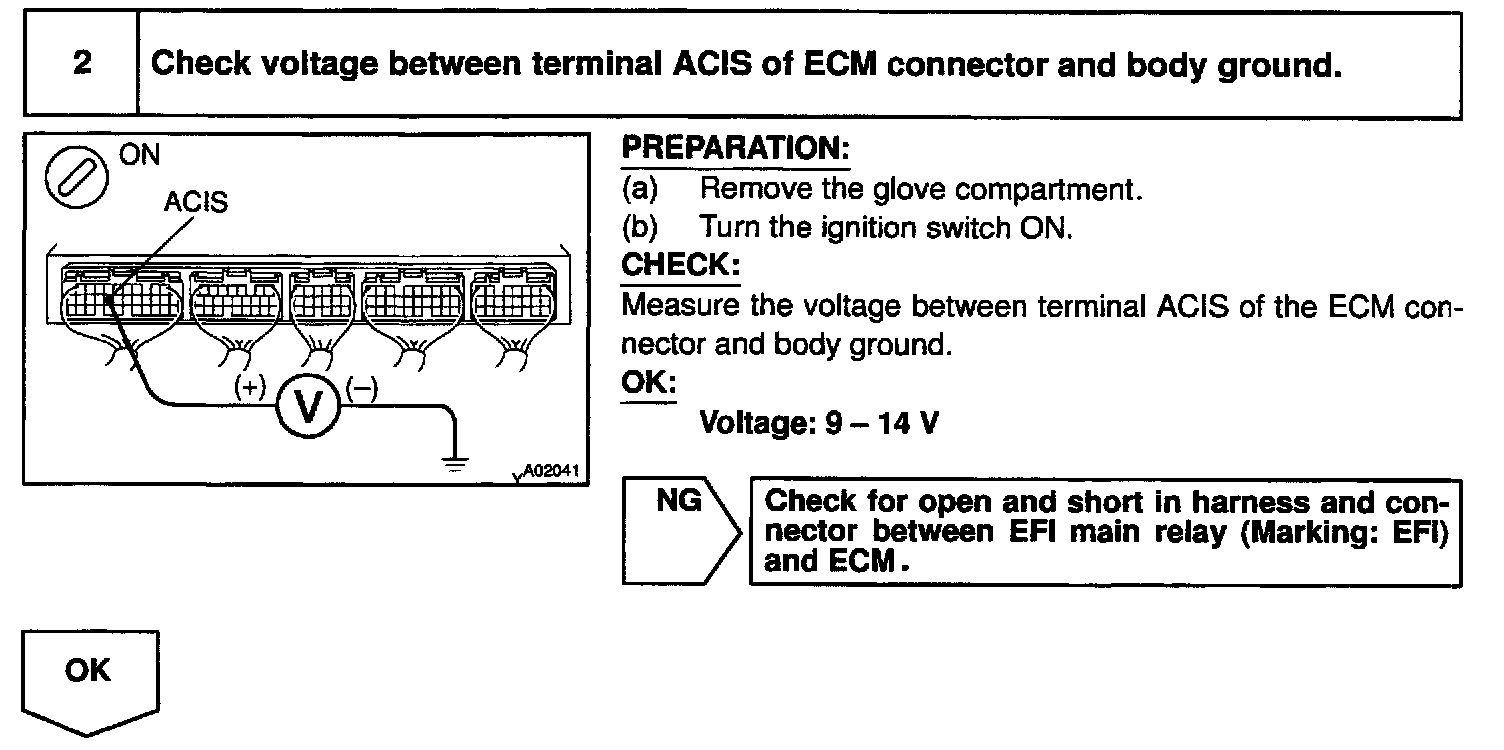

INSPECTION PROCEDURE

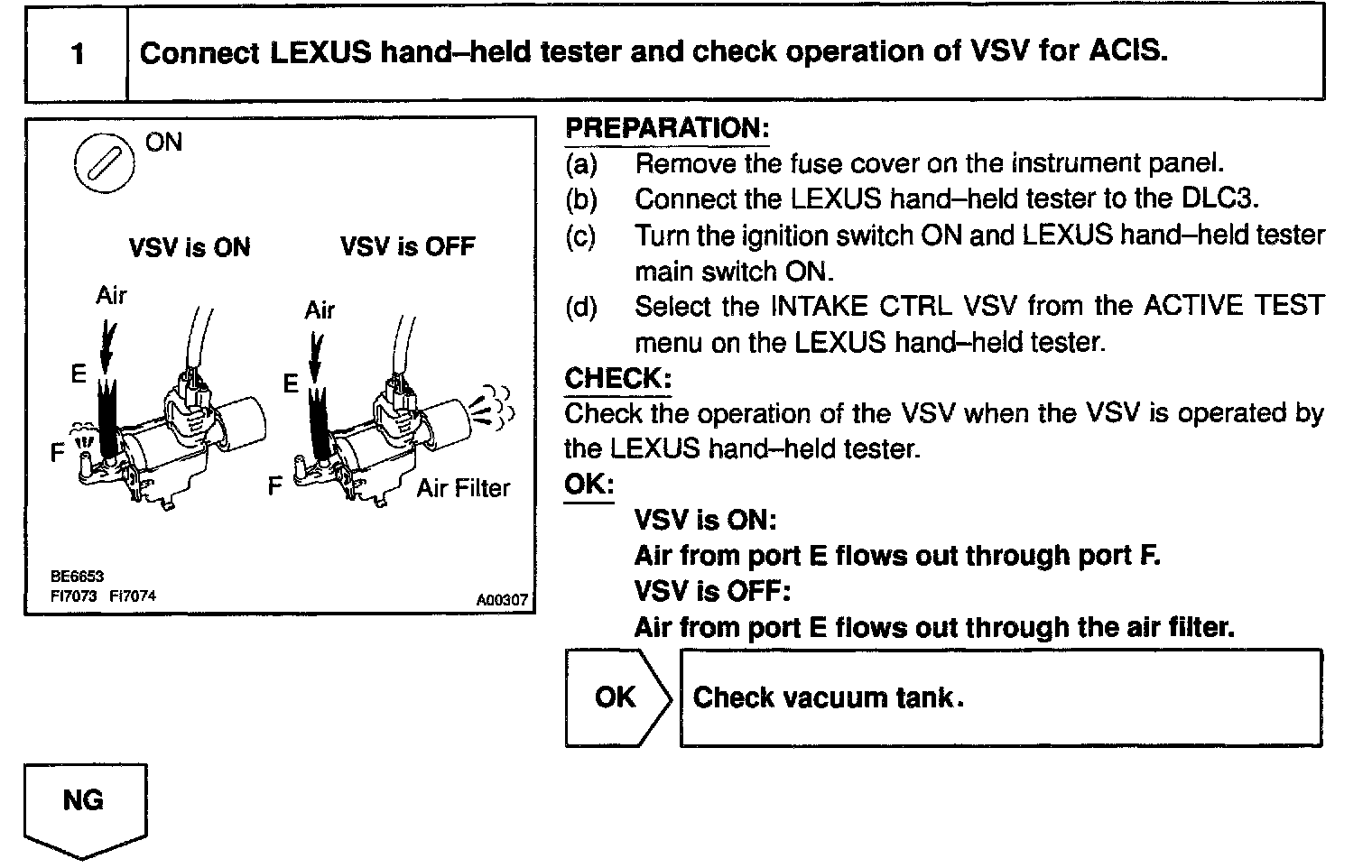

LEXUS hand-held tester










OBD II scan tool (excluding LEXUS hand-held tester)
