Variable Valve Timing Actuator: Service and Repair

Camshaft Timing Oil Control Valve

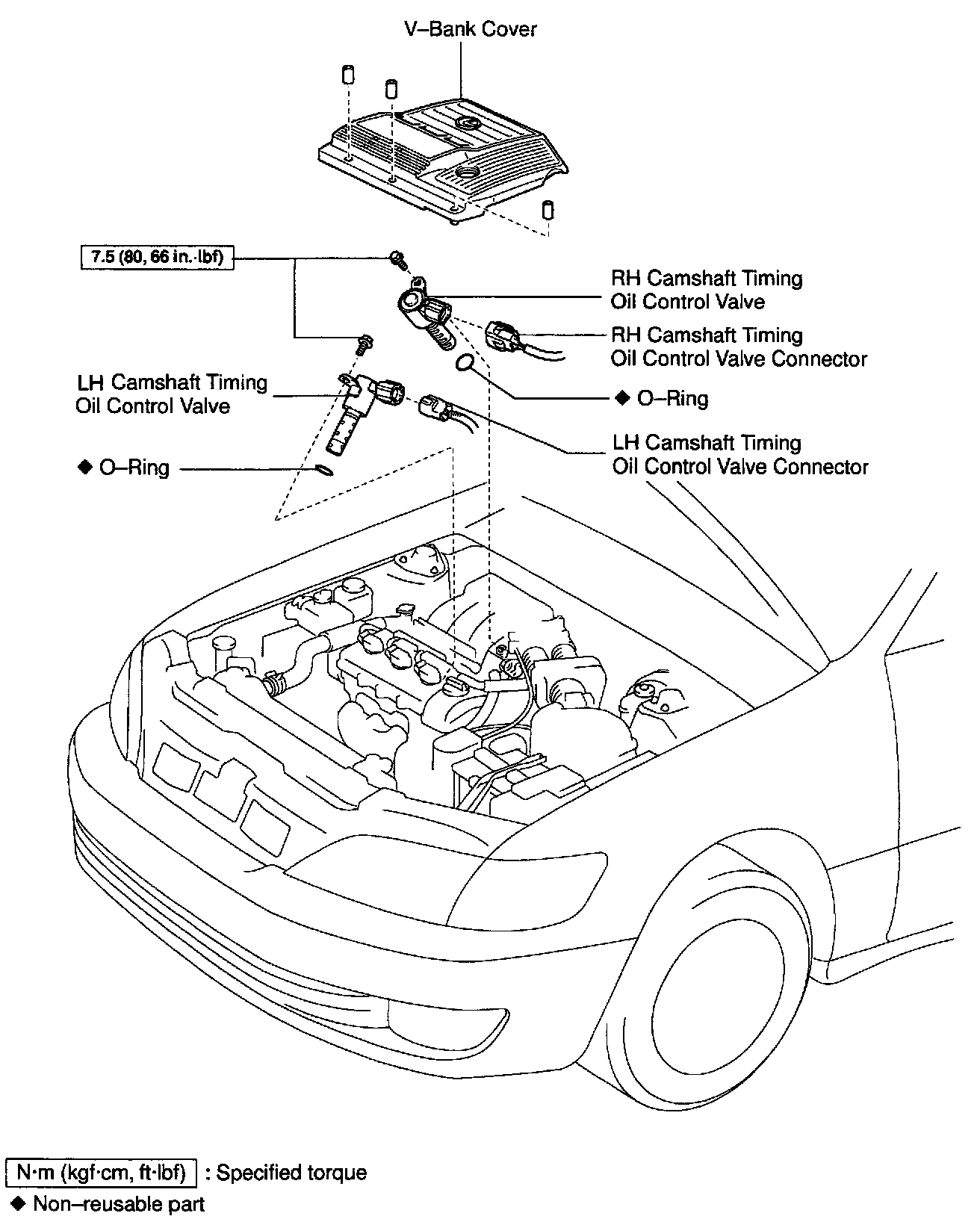

COMPONENTS




REMOVAL
1. REMOVE V-BANK COVER
a. Using a 5 mm hexagon wrench, remove the 3 cap nuts.
b. Loosen the V-bank cover fastener counterclockwise.

HINT: At the time of installation, please refer to the following items.
Press down the V-bank cover fastener.

c. Remove the V-bank cover.




2. REMOVE CAMSHAFT TIMING OIL CONTROL VALVES
a. Disconnect the 2 camshaft oil control valve connectors.
b. Remove the bolt, camshaft oil control valve and O-ring. Remove the 2 camshaft oil control valves.

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

c. Remove the O-ring from the each camshaft oil control valve.

HINT: At the time of installation, please refer to the following items.
Use a new O-ring.

INSTALLATION
Installation is in the reverse order of removal.
