Tc Terminal Circuit

CIRCUIT DESCRIPTION
Connecting between terminals Tc and E1 of the DLC1 or the DLC2 causes the ECU to display the DTC by blinking the ABS warning light and TRAC OFF indicator light.




WIRING DIAGRAM

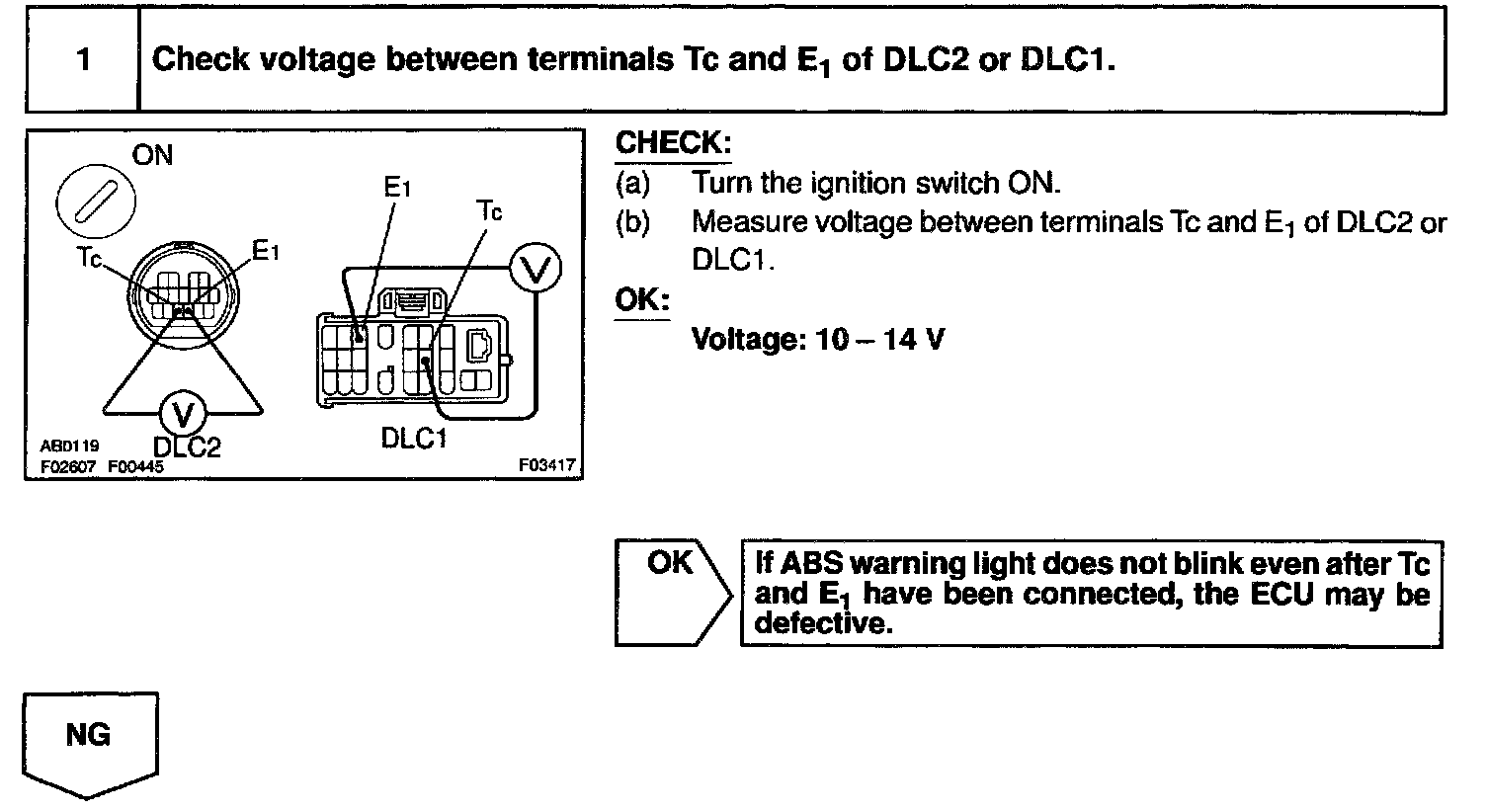

INSPECTION PROCEDURE
