System Diagram

ENGINE UNIT REPLACEMENT W/ RELATED COMPONENTS

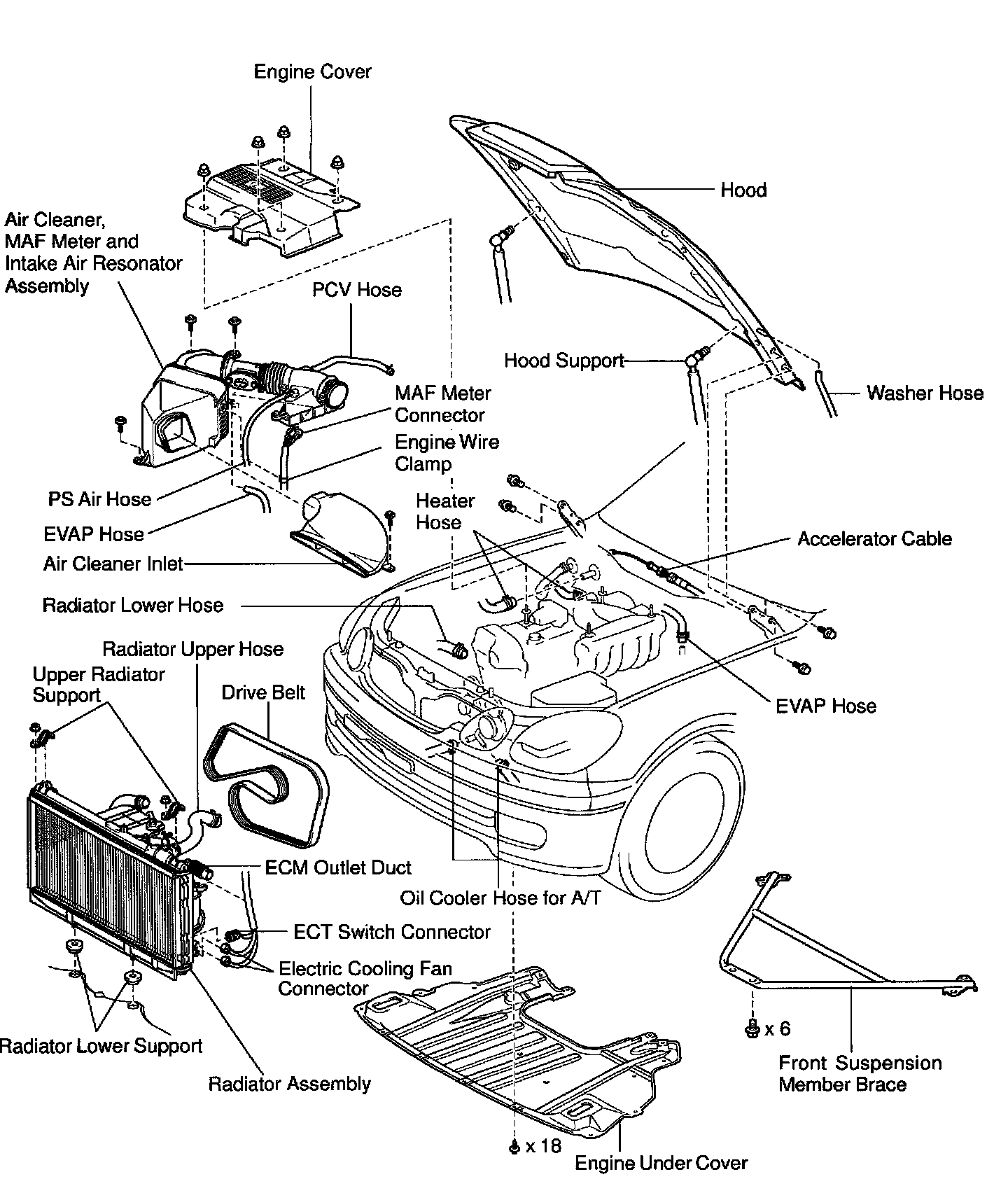

Various Engine Related Components:





Part 1 of 3

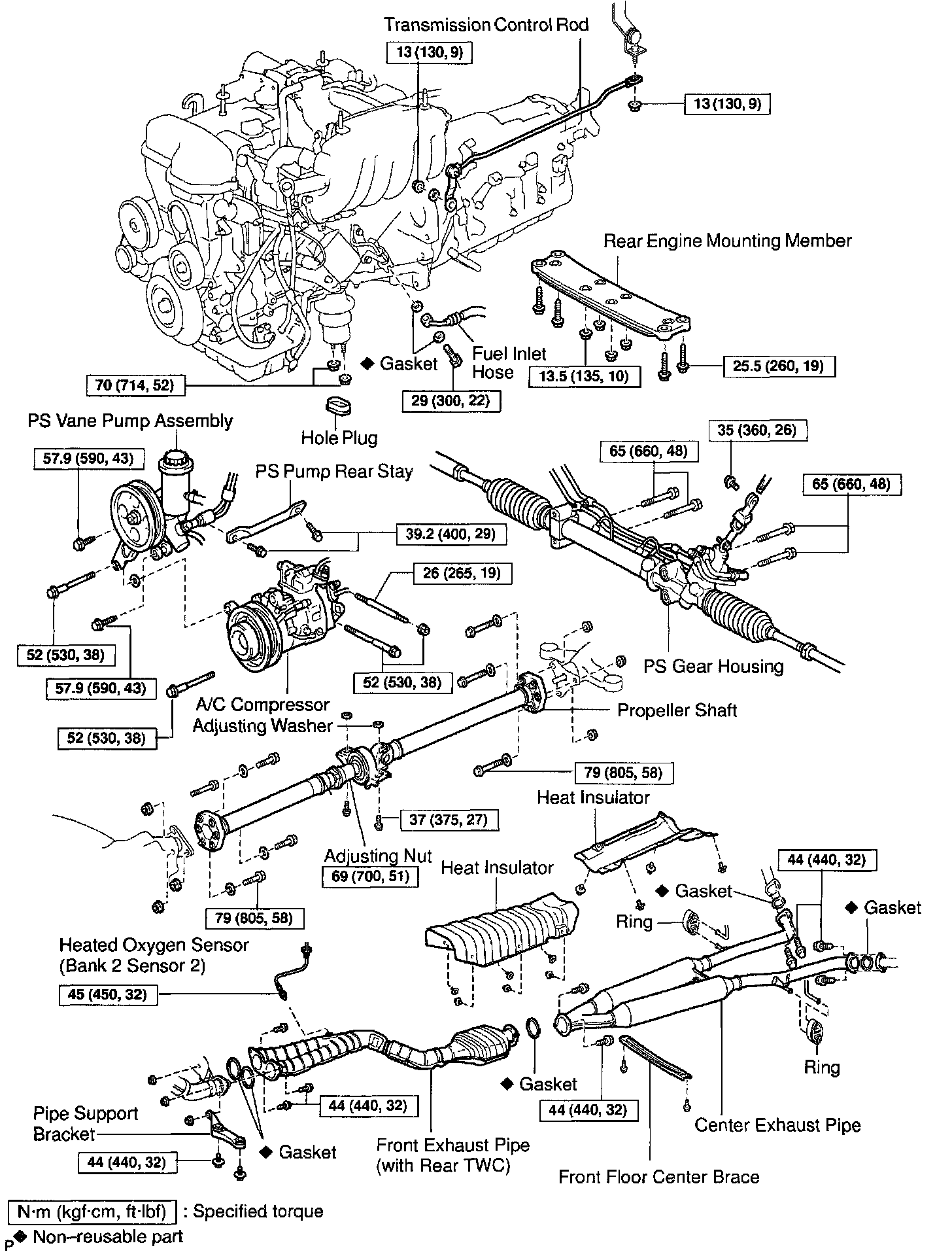

FRT And Center Exhaust Pipes, A/C Comp., P/S Pump, Steering Rack:





Part 2 of 3

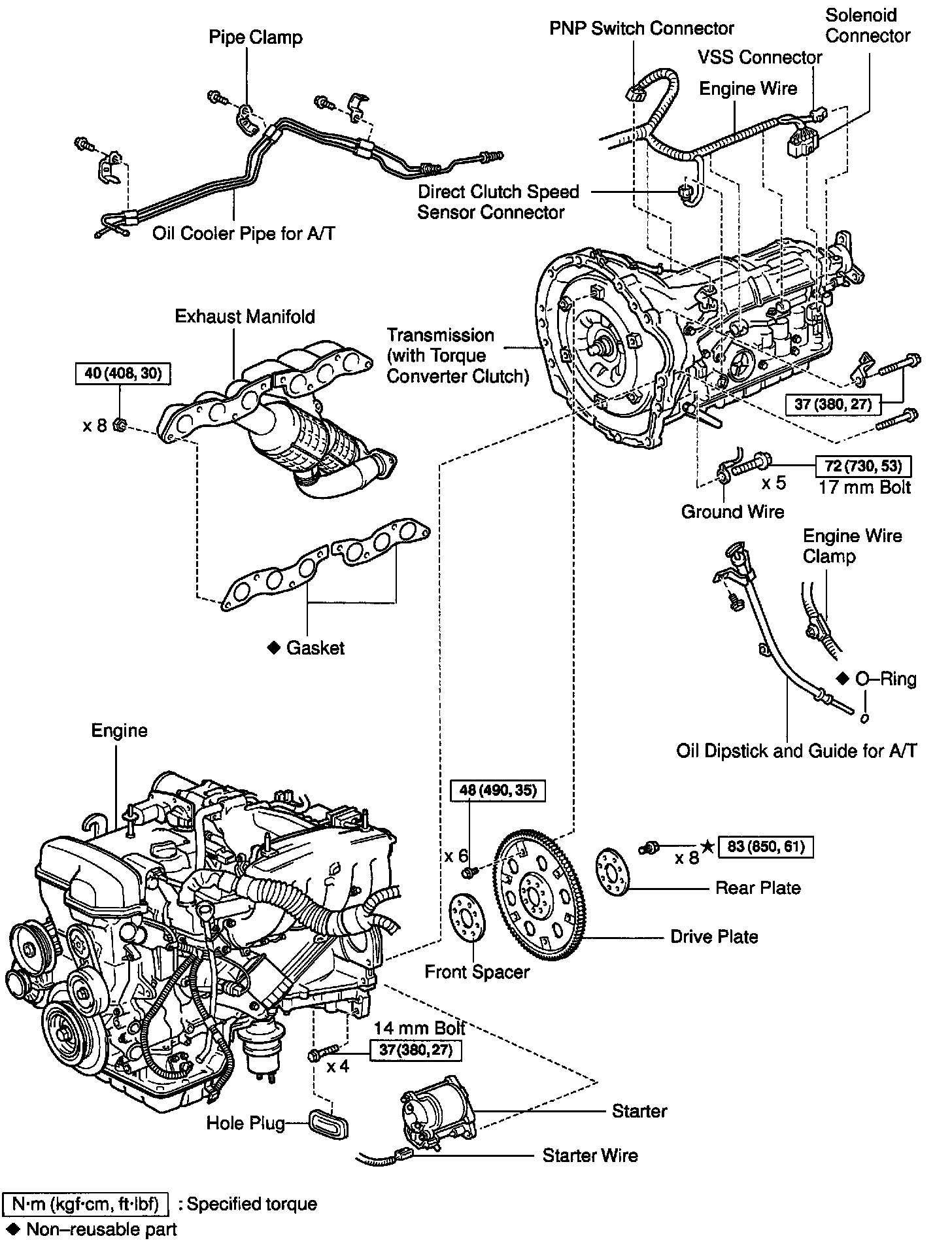

Engine, Transmission, Exh. Manifold, Flex Plate, Various Connectors:





Part 3 of 3
