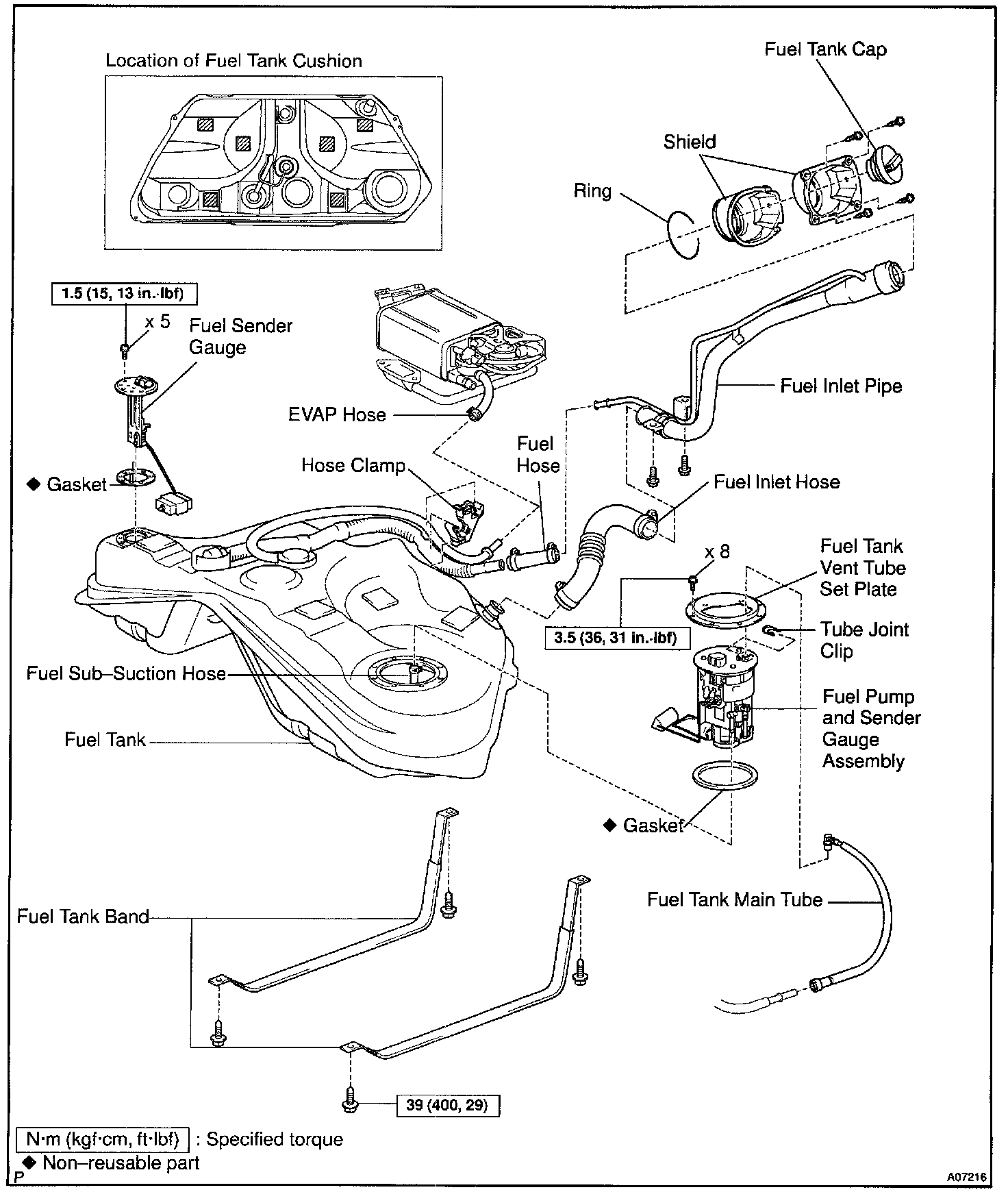

Fuel Tank






CAUTION:
- Always use new gaskets when replacing the fuel tank or component parts.
- Apply the proper torque to all parts tightened
