System Specifications

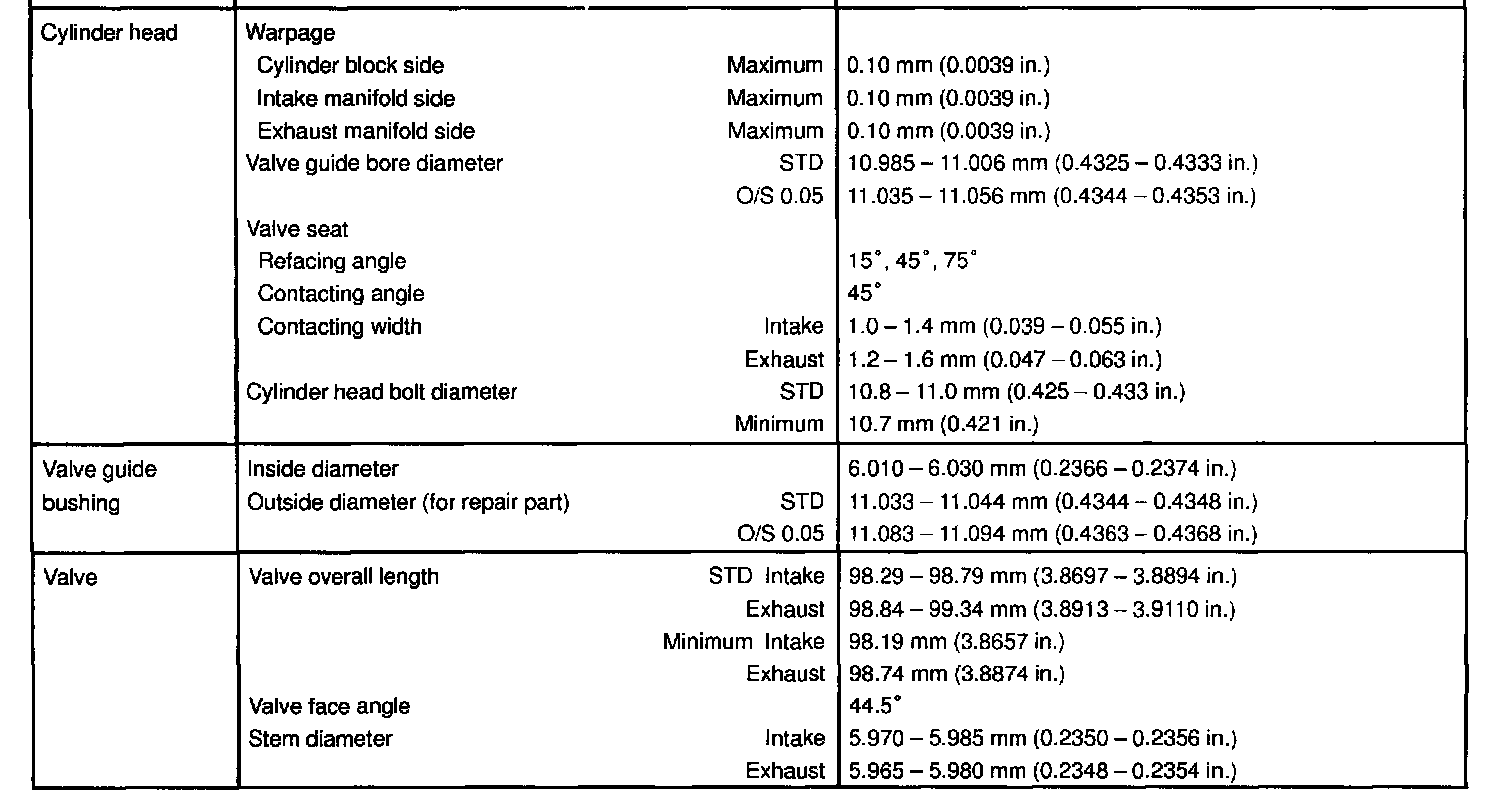

2JZ-GE Engine Cylinder Head Specifications





Part 1 of 9





Part 2 of 9





Part 3 of 9





Part 4 of 9





Part 5 of 9





Part 6 of 9





Part 7 of 9





Part 8 of 9





Part 9 of 9




Cylinder Head Torque & Sequence


Torque: 35 Nm (26 ft. lbs.)

If any of the bolts do not meet the torque specification, replace the bolt.





Mark the front of the cylinder head bolt head with paint.
Retighten the cylinder head bolts 90° in the numerical order shown.
Retighten cylinder head bolts by an additional 90° shown.
Check that the painted mark is now turned to the rear.
