Torque Specifications

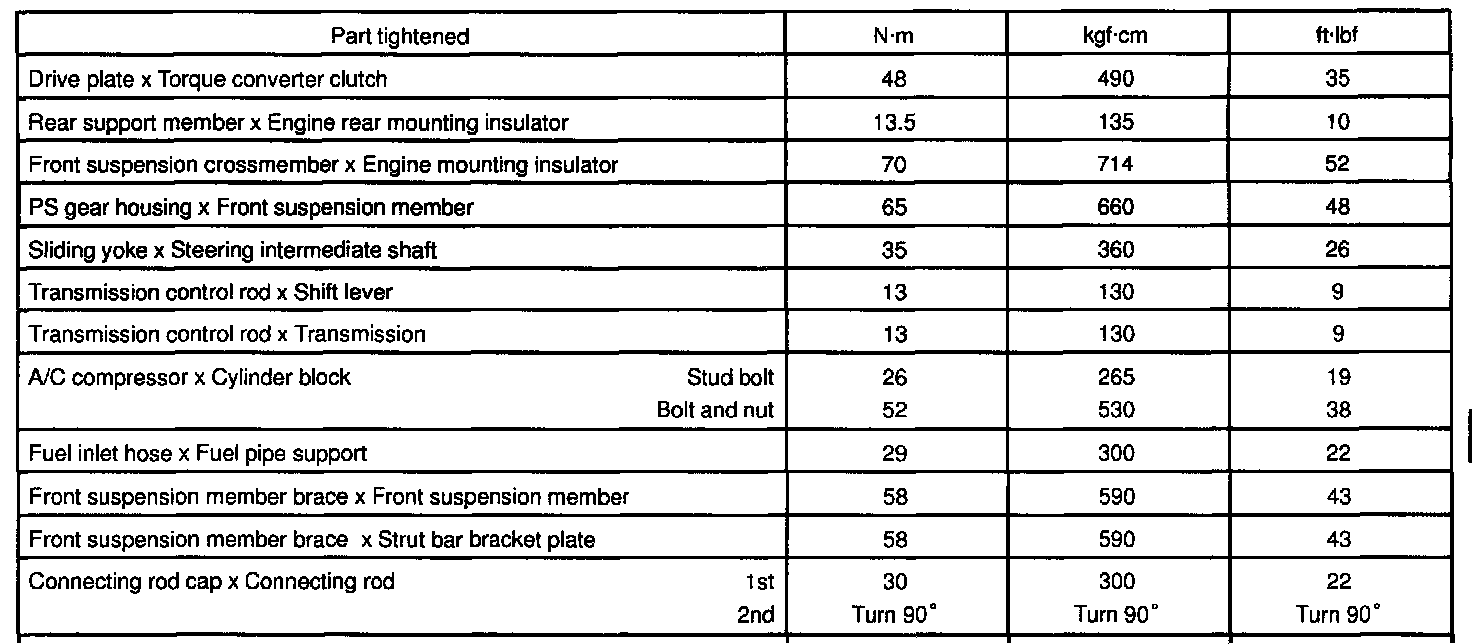

2JZ-GE Engine Mechanical Torque:

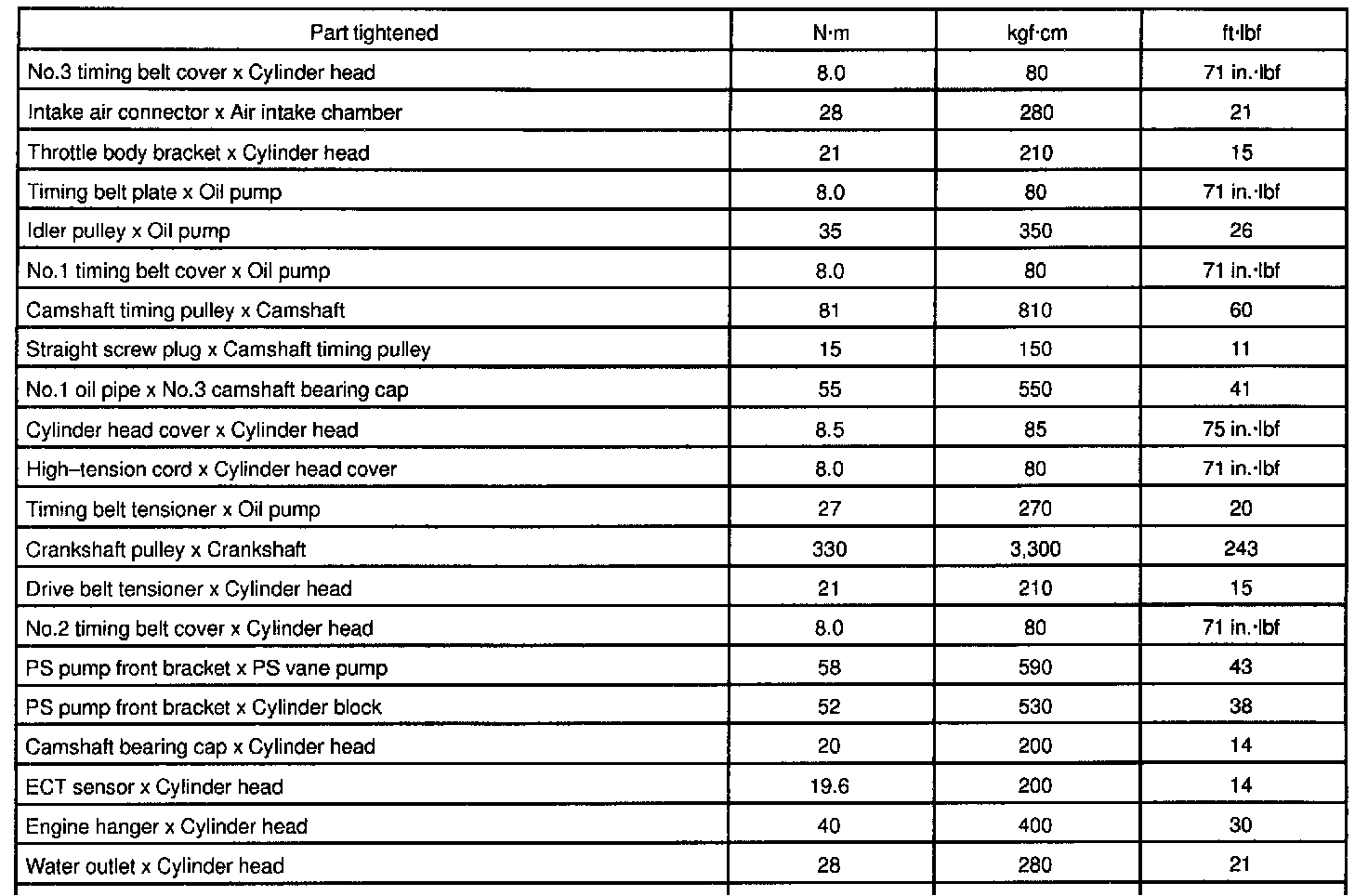

2JZ-GE Engine Torque Cont.:

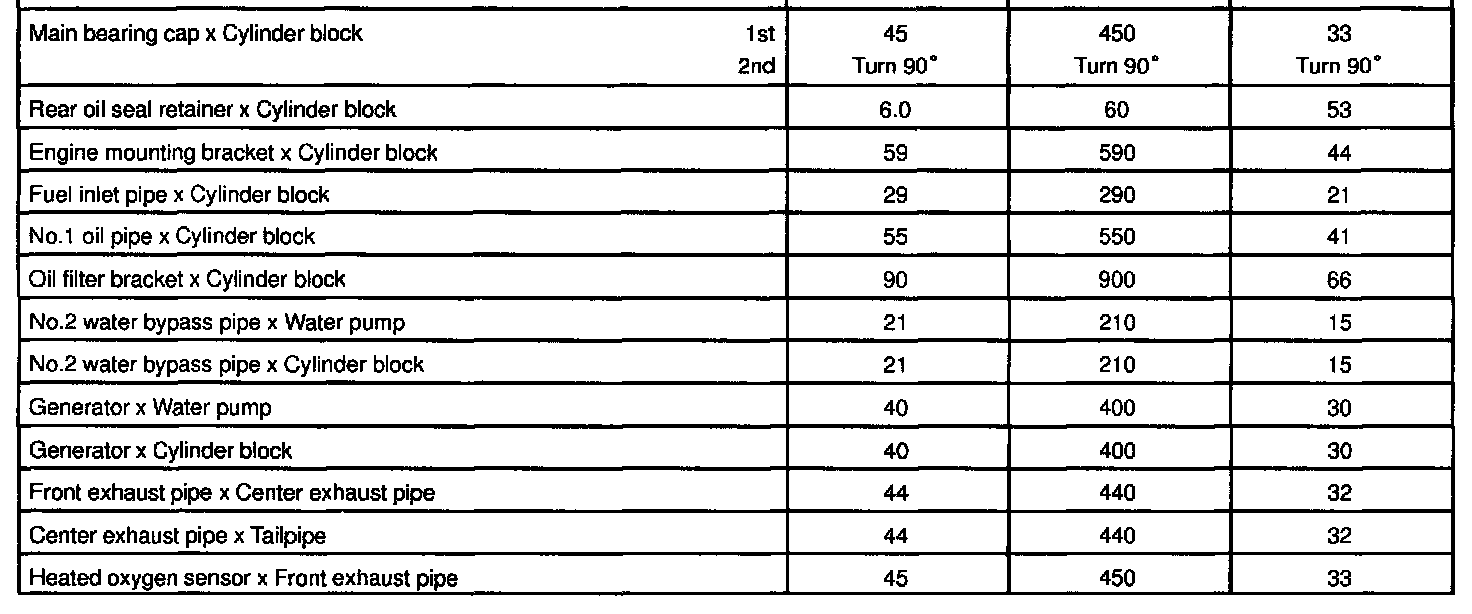

2JZ-GE Engine Torque Cont.:

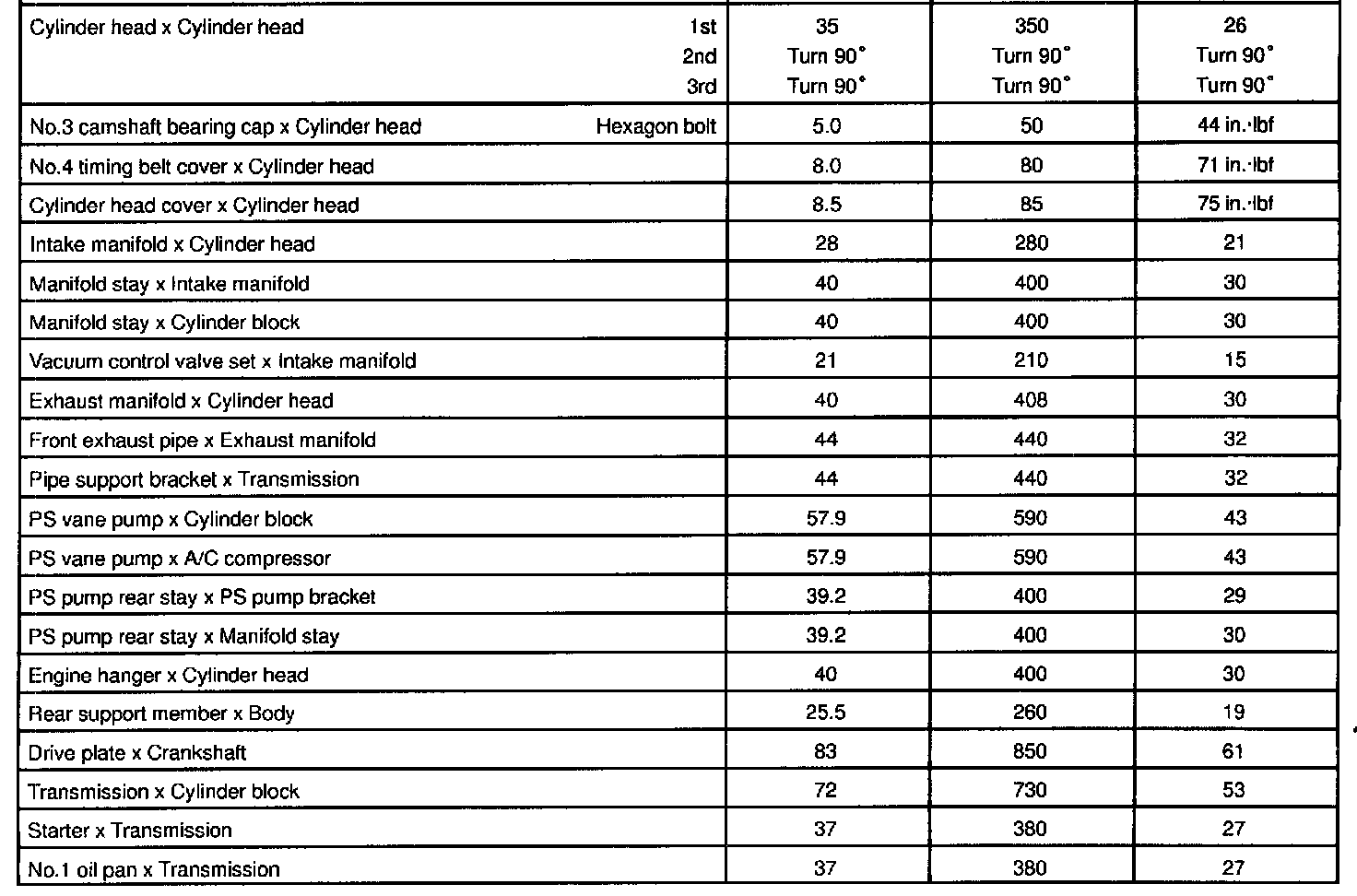

2JZ-GE Engine Torque Cont.:

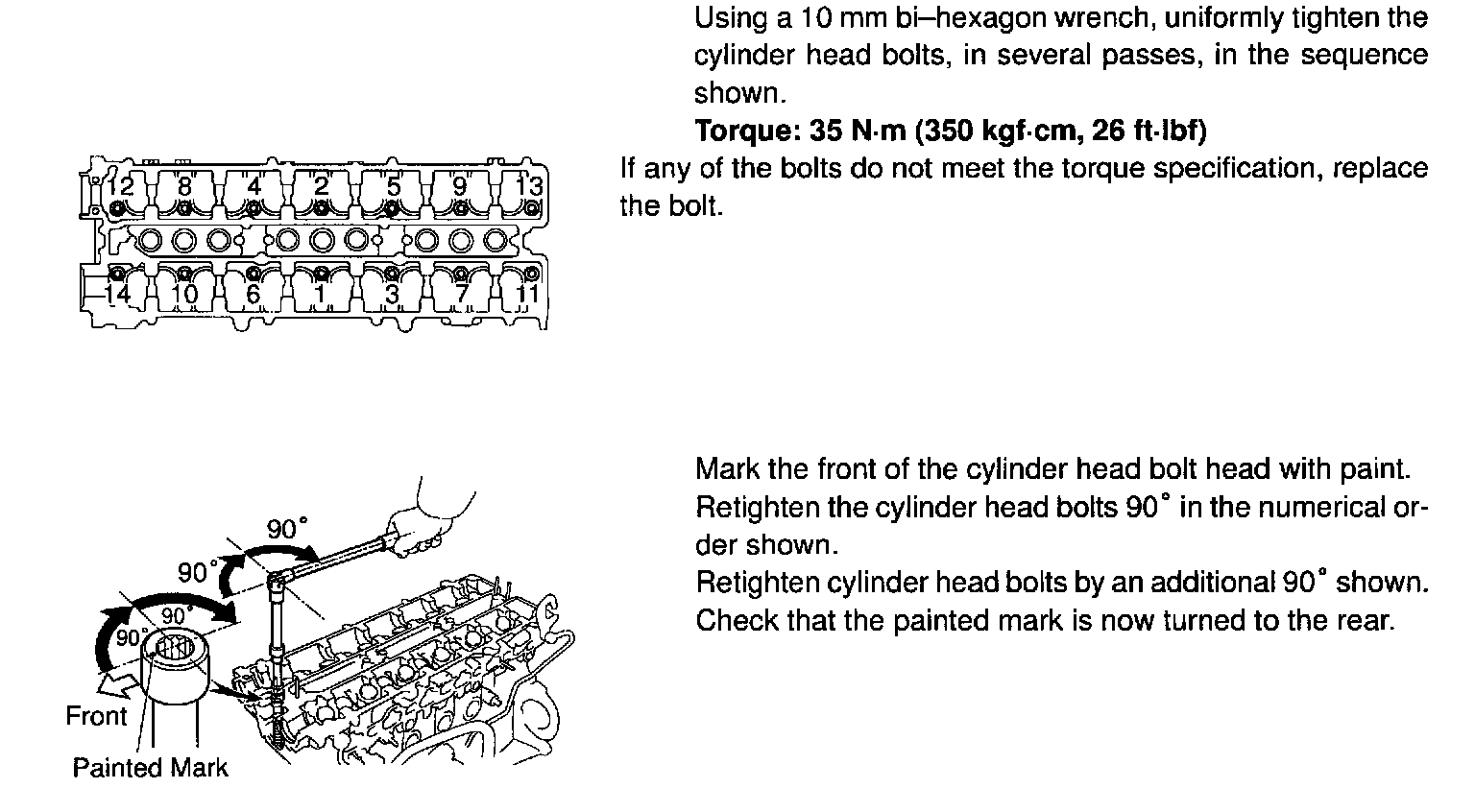

2JZ-GE Cylinder Head Torque & Sequence:




Cylinder Head Torque and Sequence
