Control Module Pinout Values

Terminals Of ECU ( P18 , P19) - View:

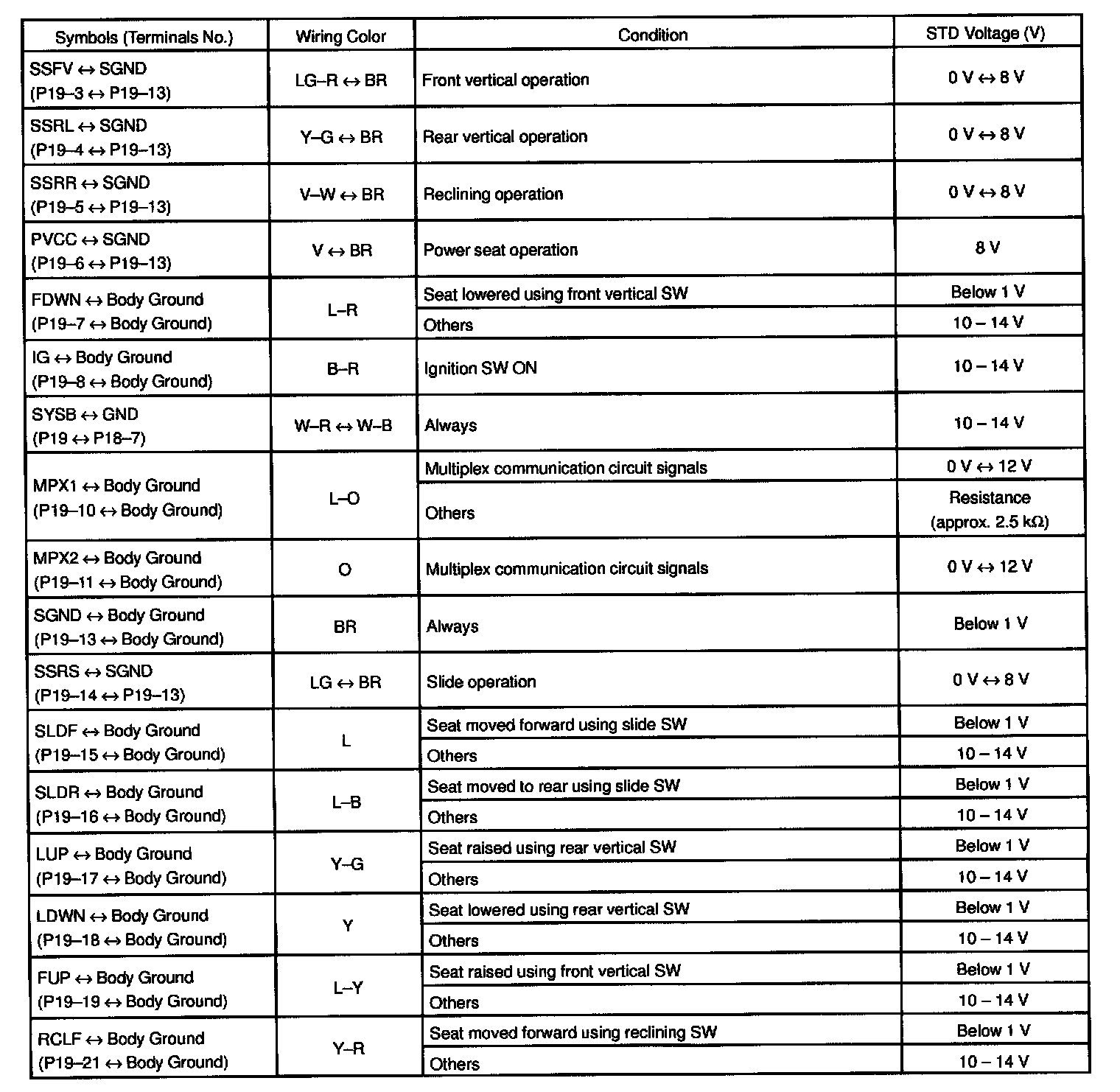

Terminals Of ECU ( P18 , P19 ) - Pinouts ( Part 1 Of 2 ):

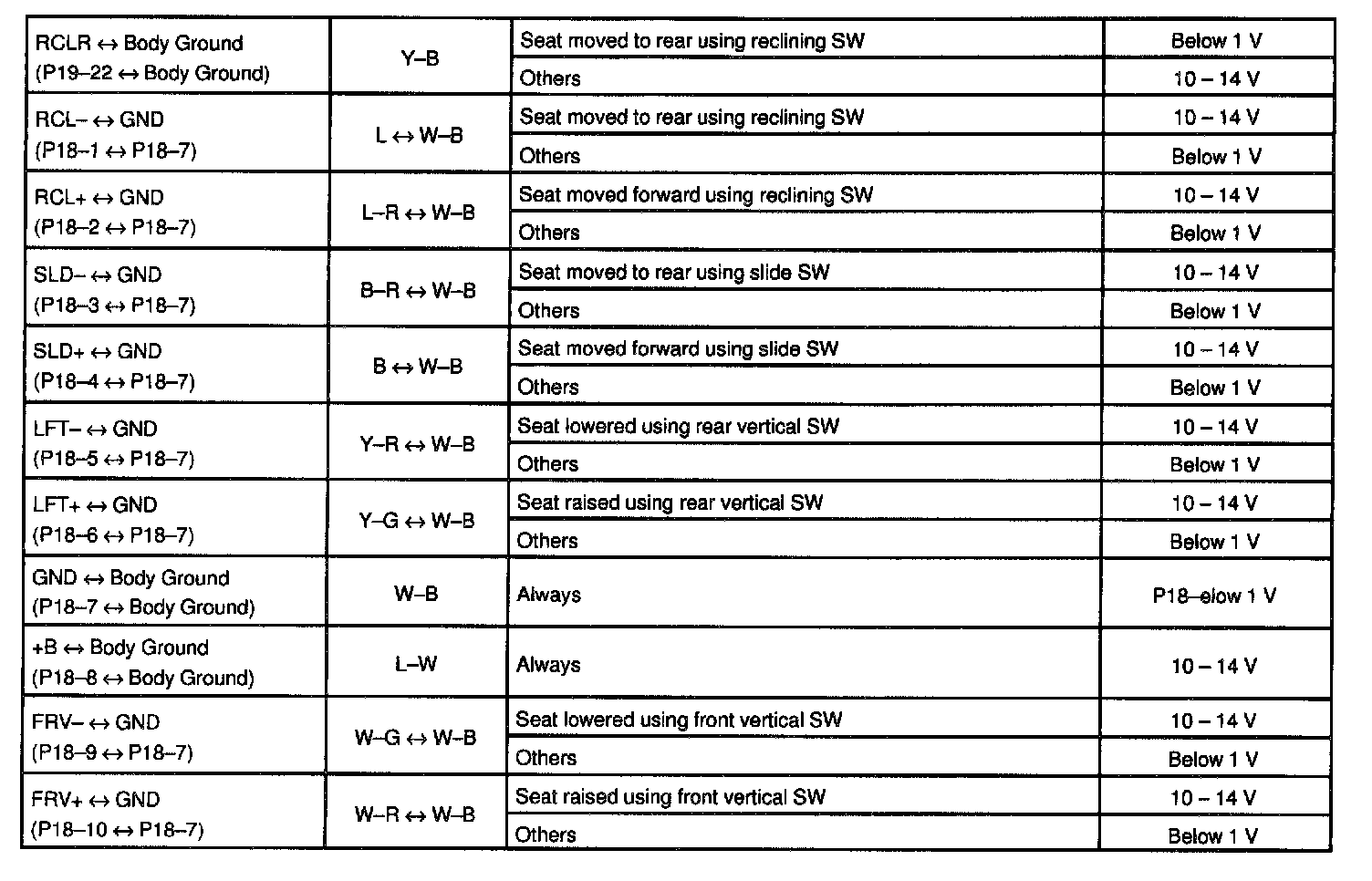

Terminals Of ECU ( P18 , P19 ) - Pinouts ( Part 2 Of 2 ):
