Mirror Select Switch Circuit

CIRCUIT DESCRIPTION
The different voltage signals which are occurred by operating the select switch are sent to the tilt and telescopic ECU.




WIRING DIAGRAM

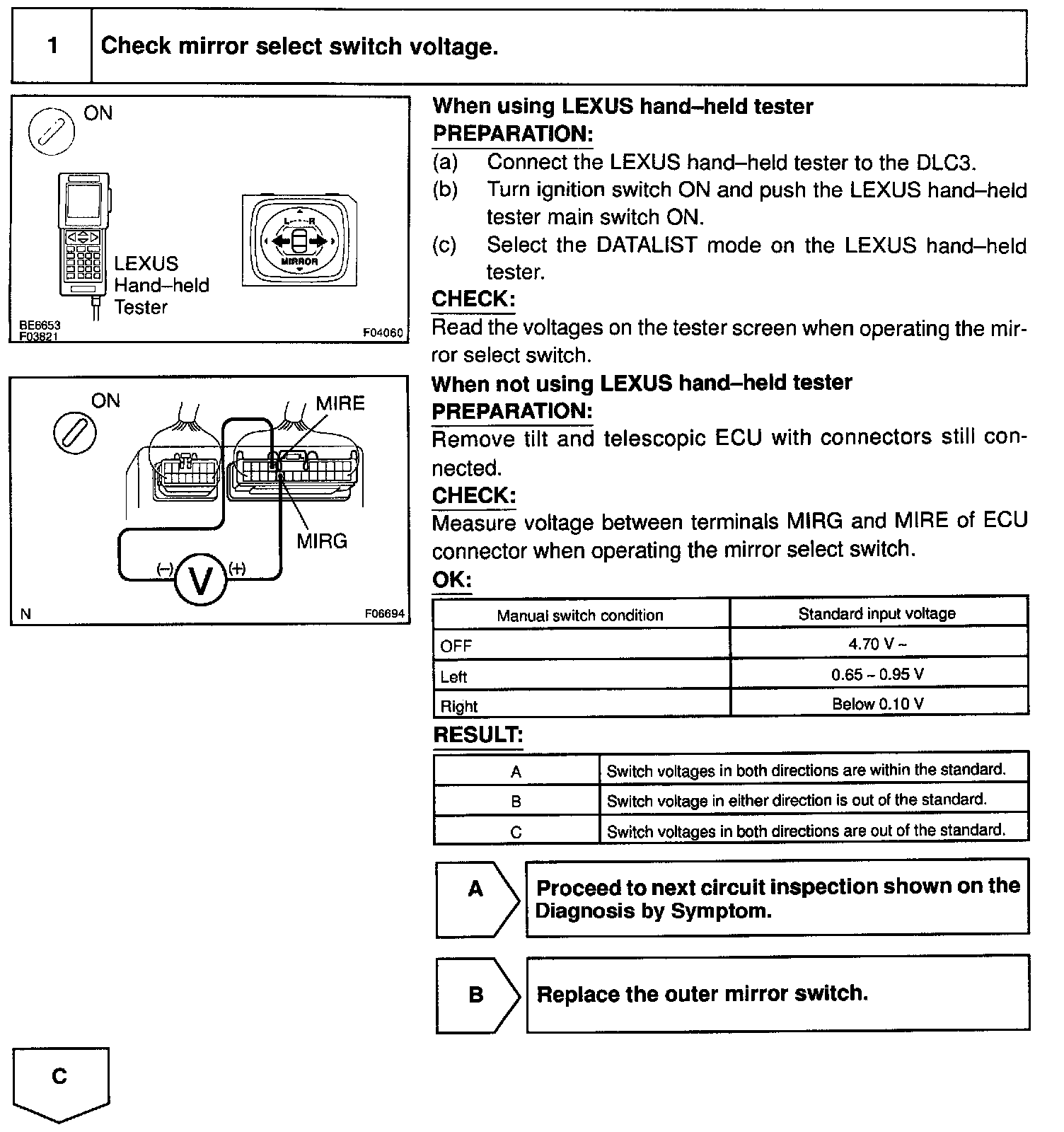

Step 1:

Step 2:

Step 3:

INSPECTION PROCEDURE
