Control Module Pinout Values

ECU Views - (P10, P11):

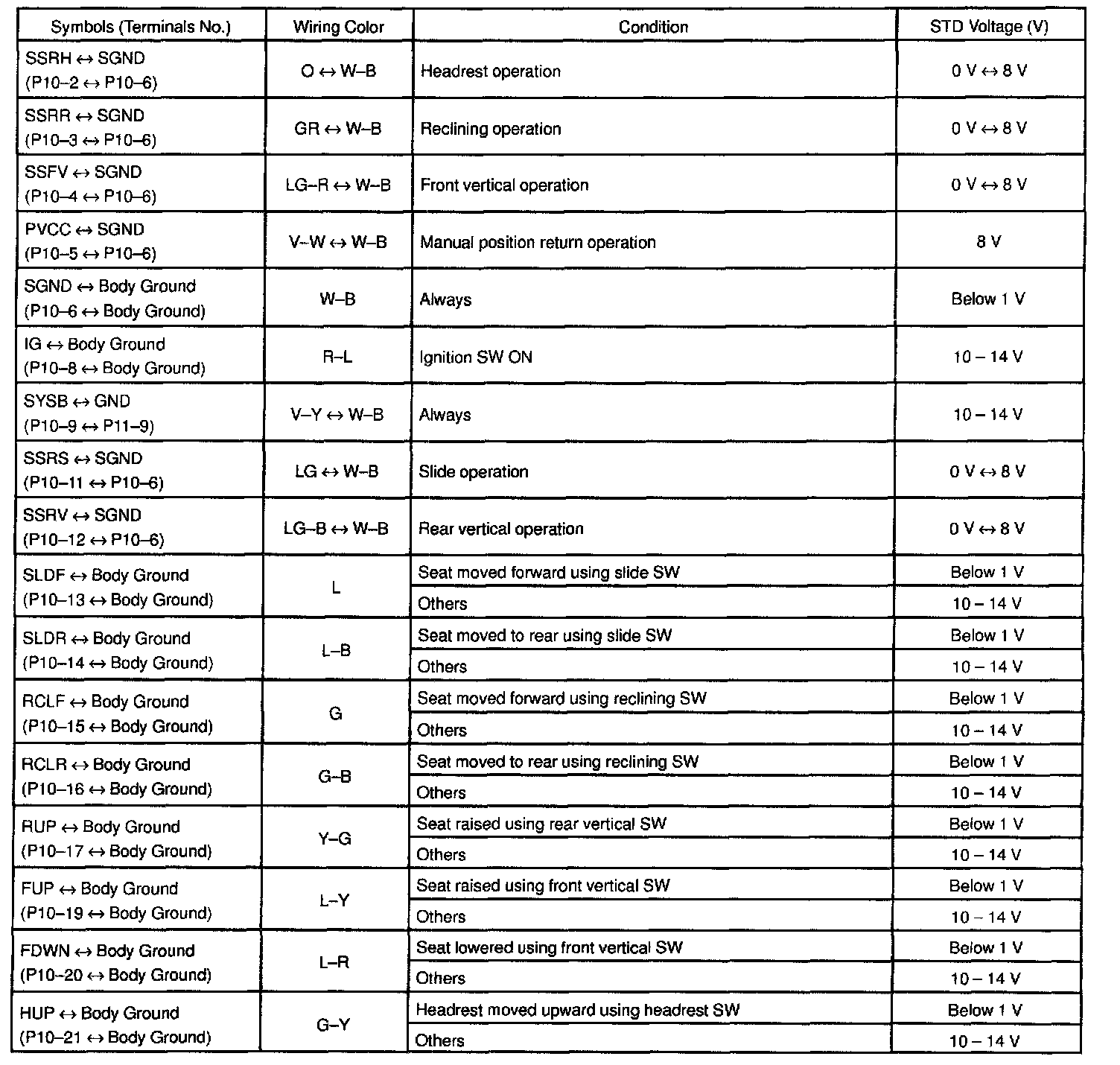

ECU Pinouts - (P10, P11) (Part 1 Of 2):

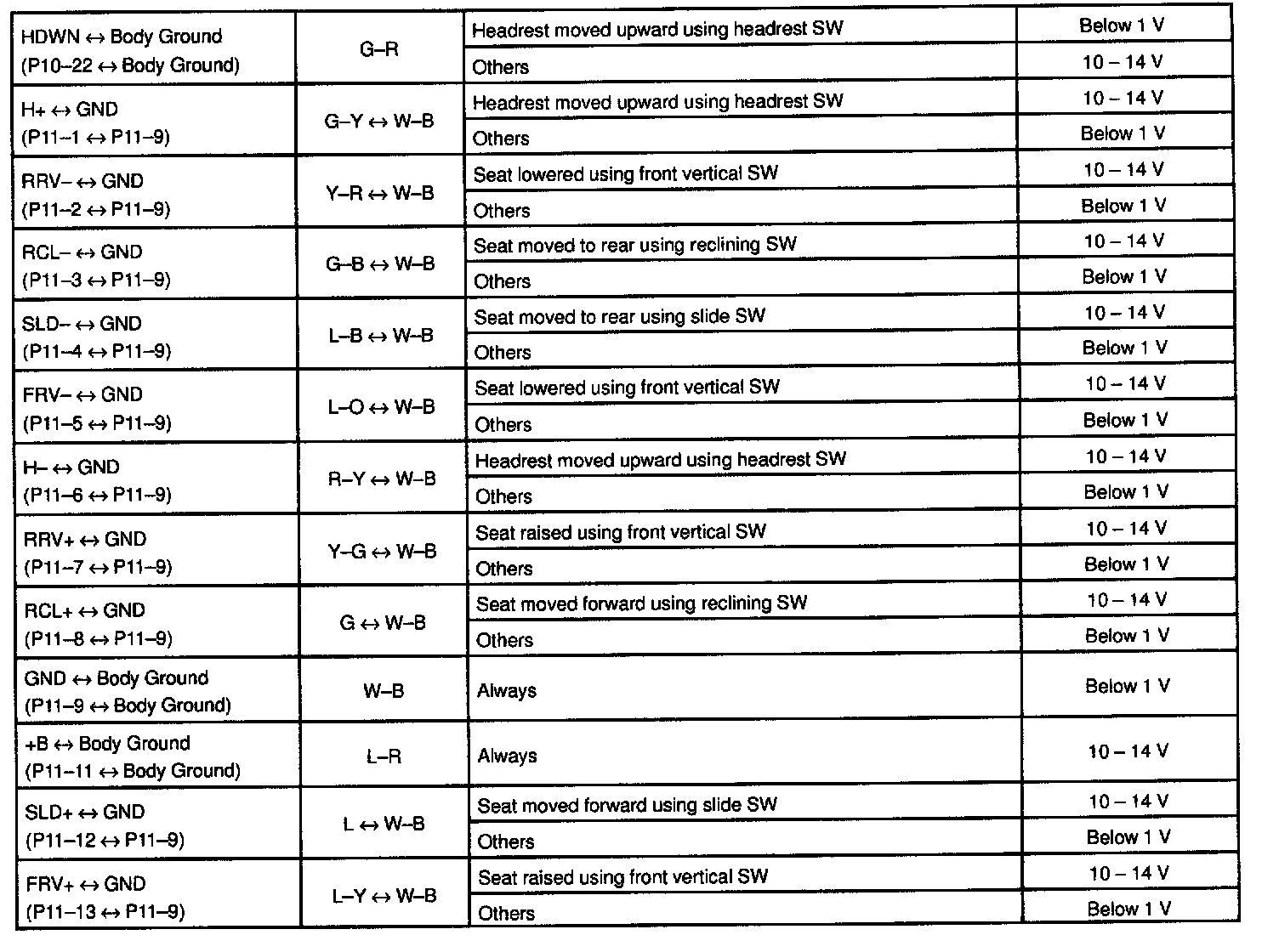

ECU Pinouts - (P10,P11) (Part 2 Of 2):




ECU TERMINAL VALUES
