Engine Control Module

PCM Connectors And Terminals:

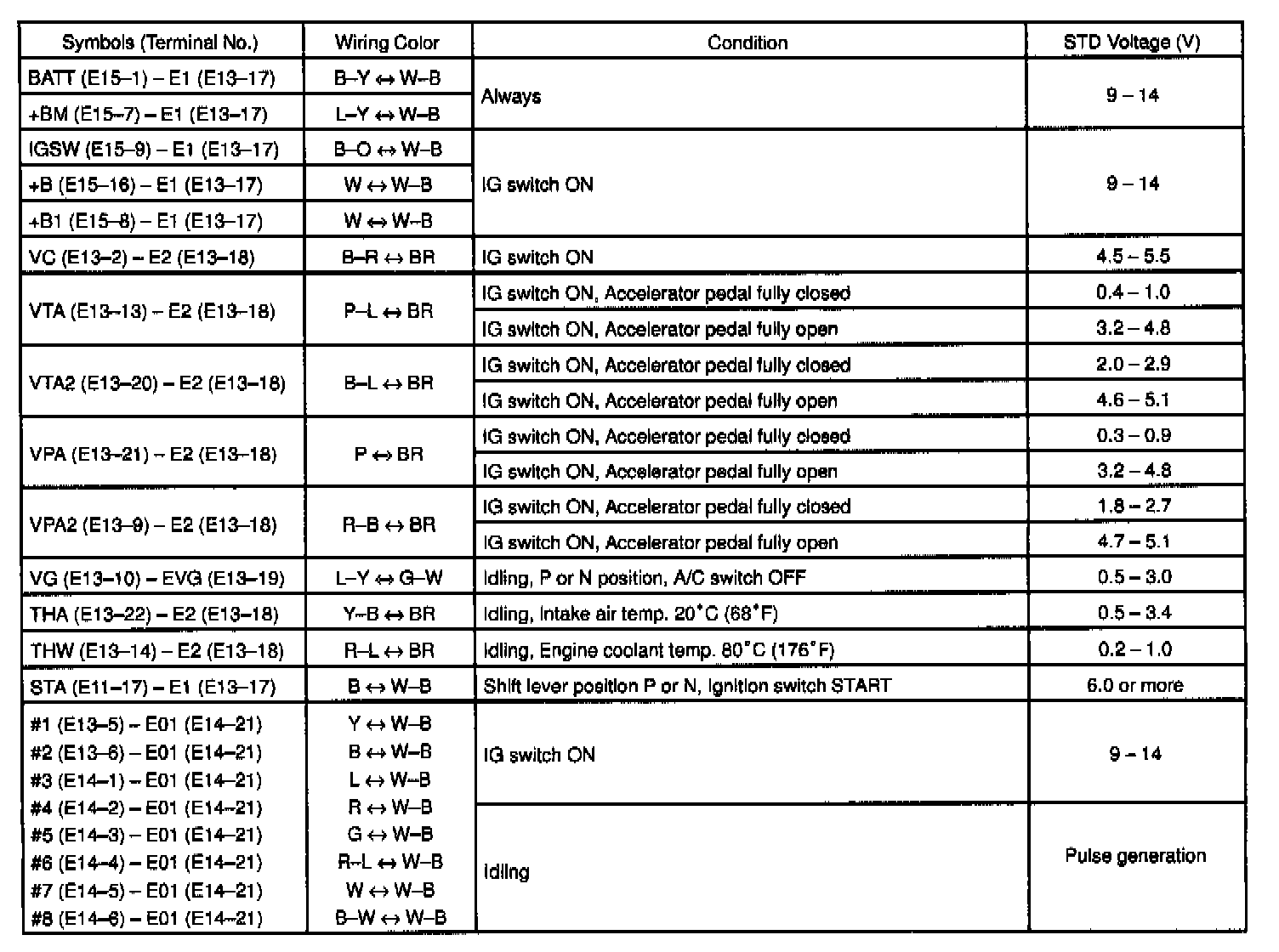

Pinout Values (Part 1 Of 3):

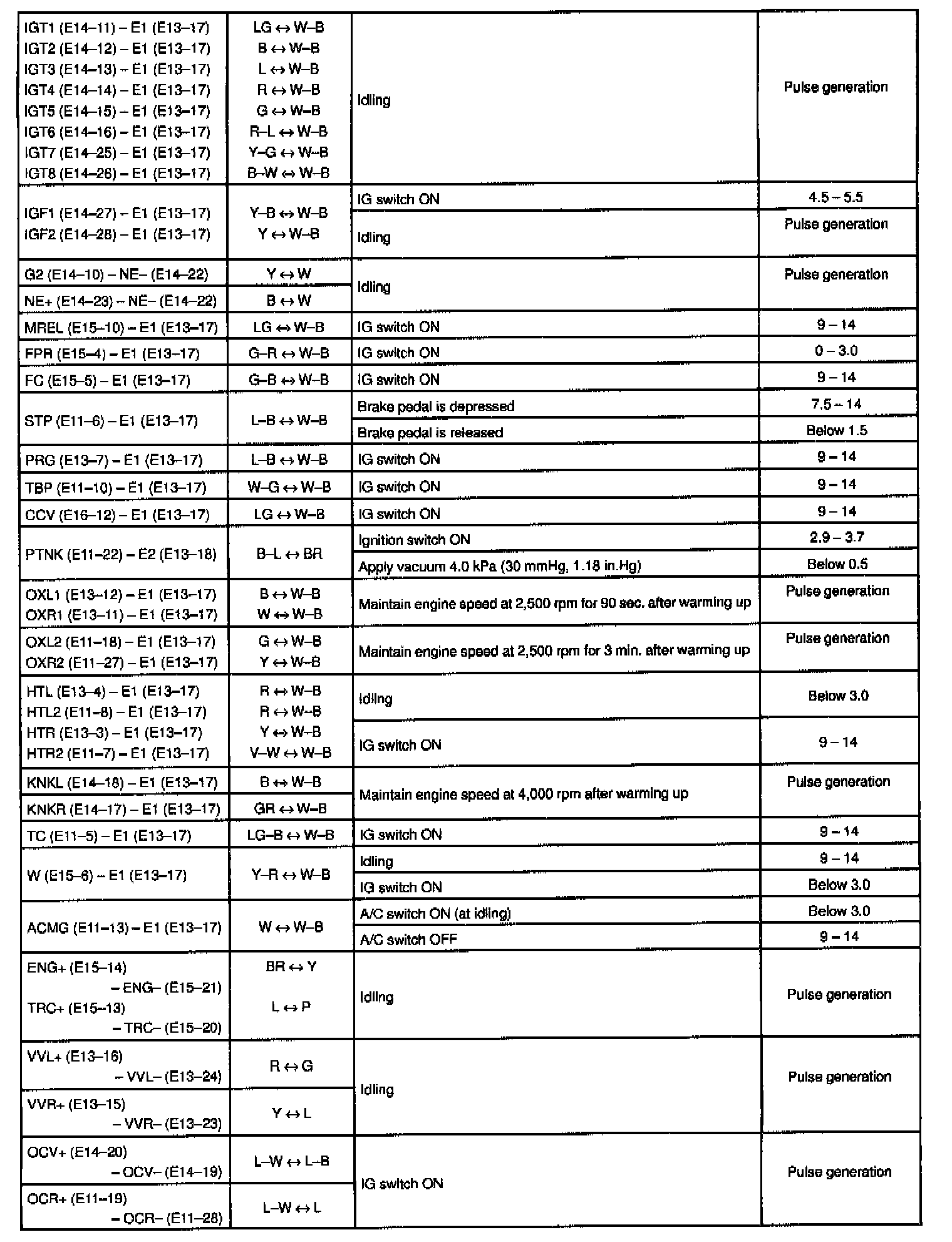

Pinout Values (Part 2 Of 3):




Pinout Values (Part 3 Of 3):
