Home >> Lexus >> 2000 >> LS 400 V8-4.0L (1UZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Automatic Transmission/Transaxle >> System Diagram

July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

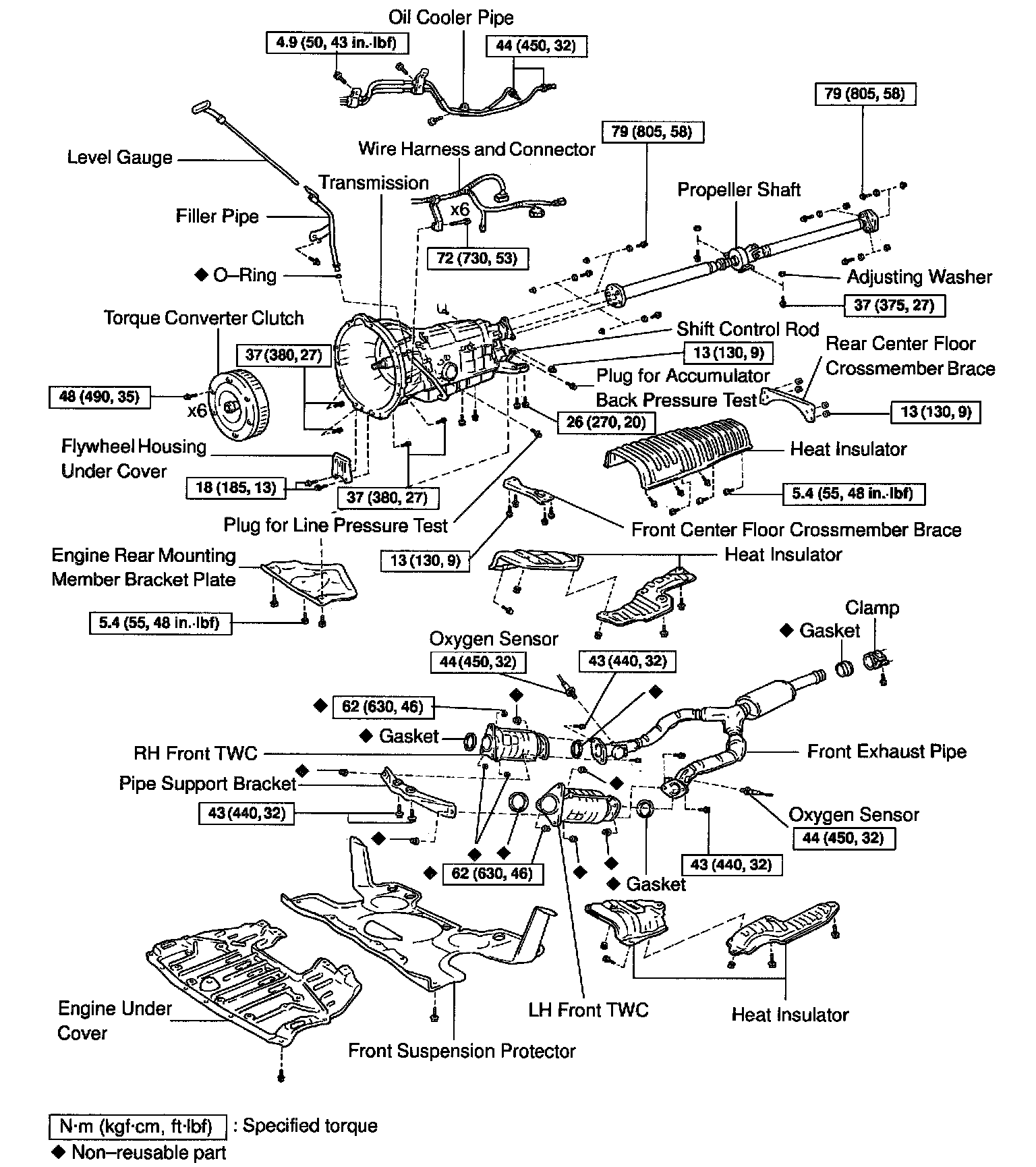

System Diagram
