Cylinder Head Assembly

CYLINDER HEAD REPLACEMENT AND OVERHAUL W/ RELATED COMPONENTS

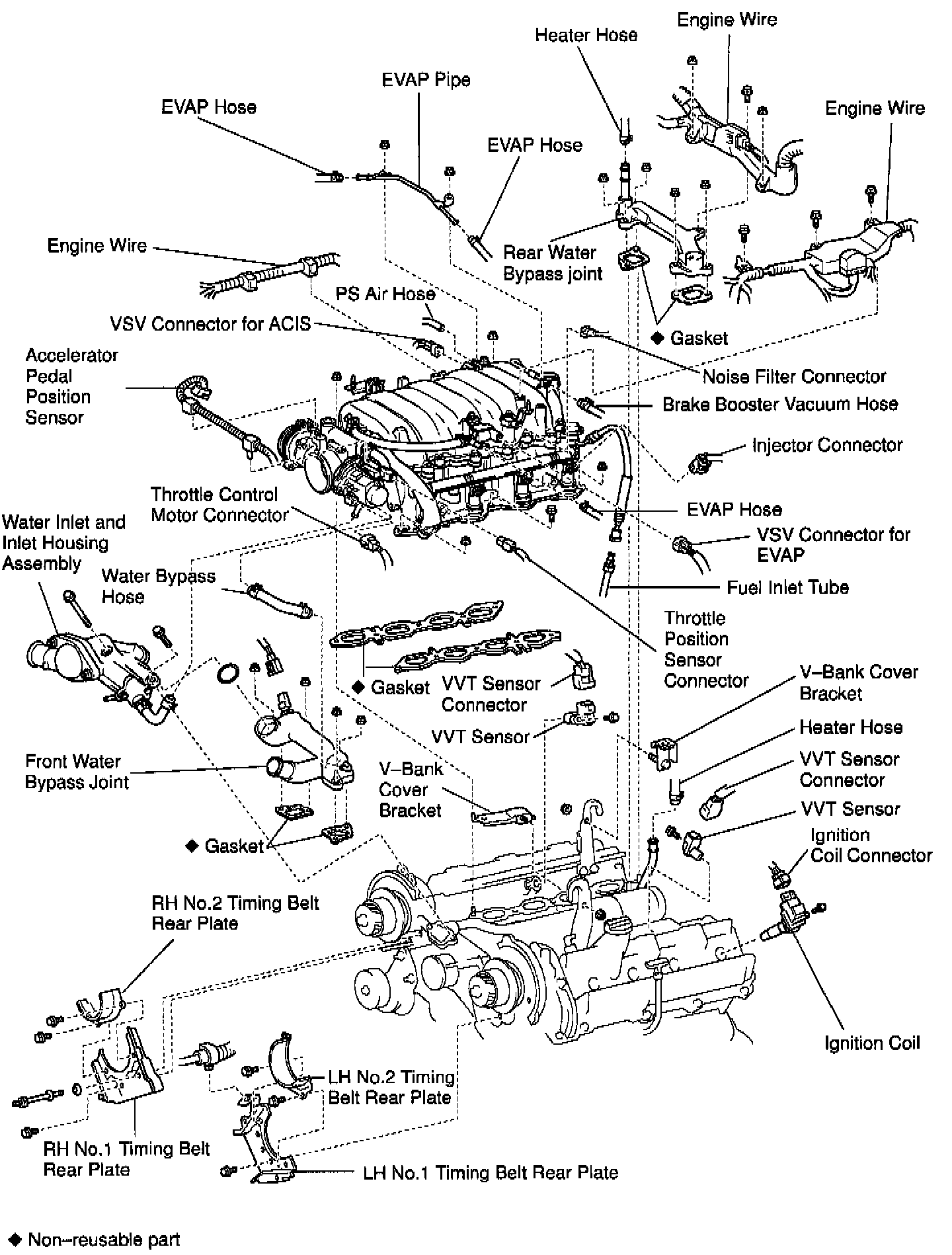

Part 1 of 7

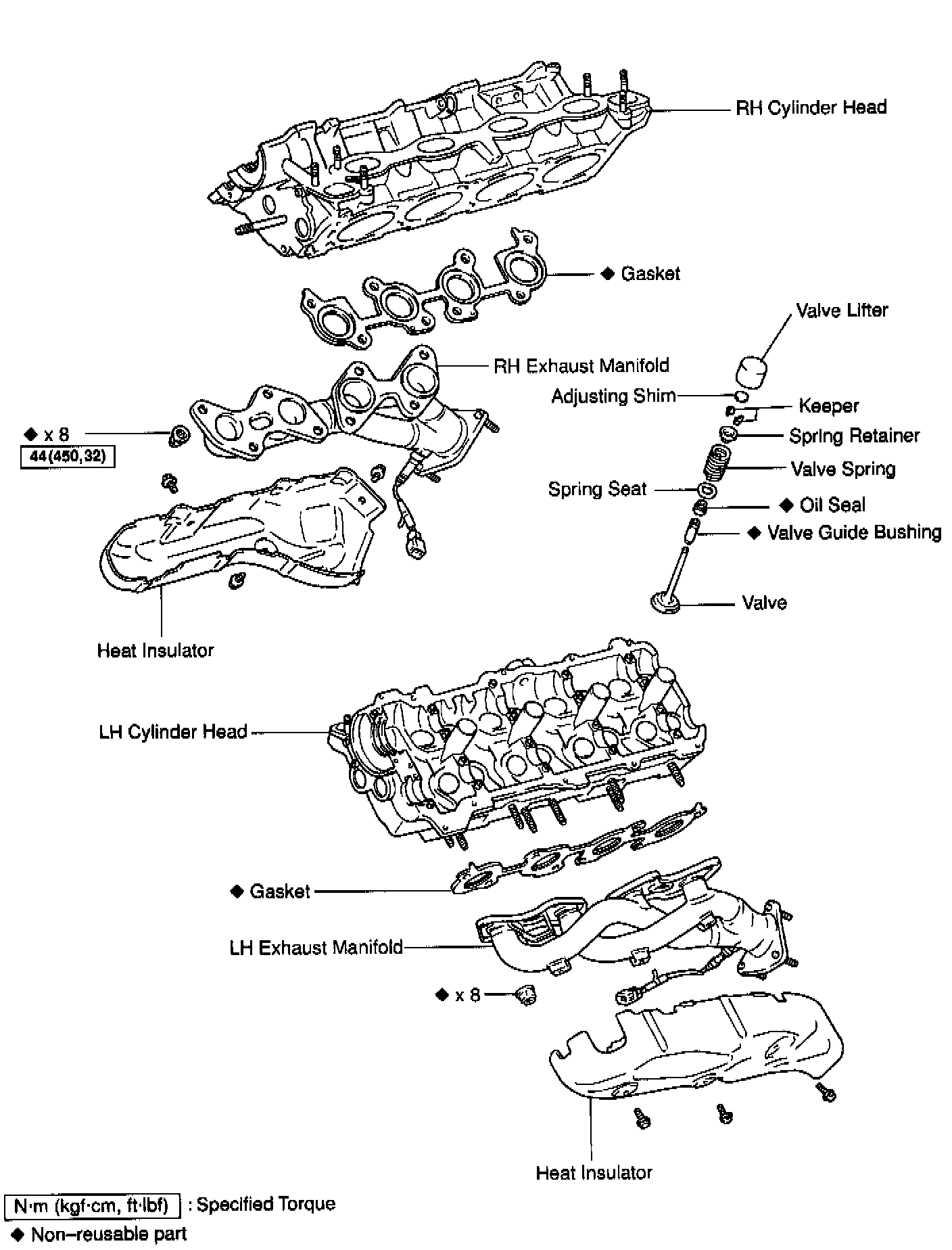

Part 2 of 7

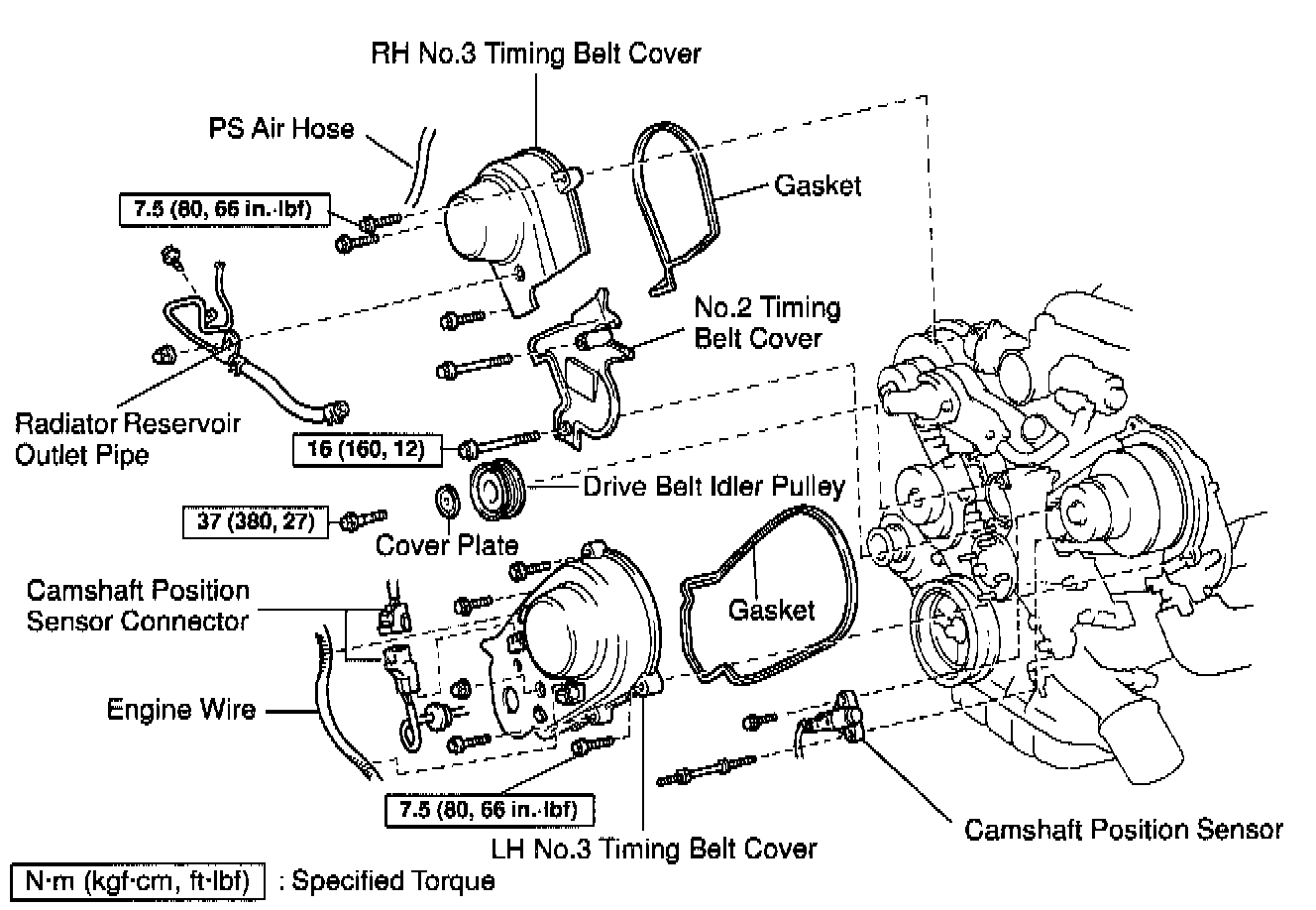

Part 3 of 7

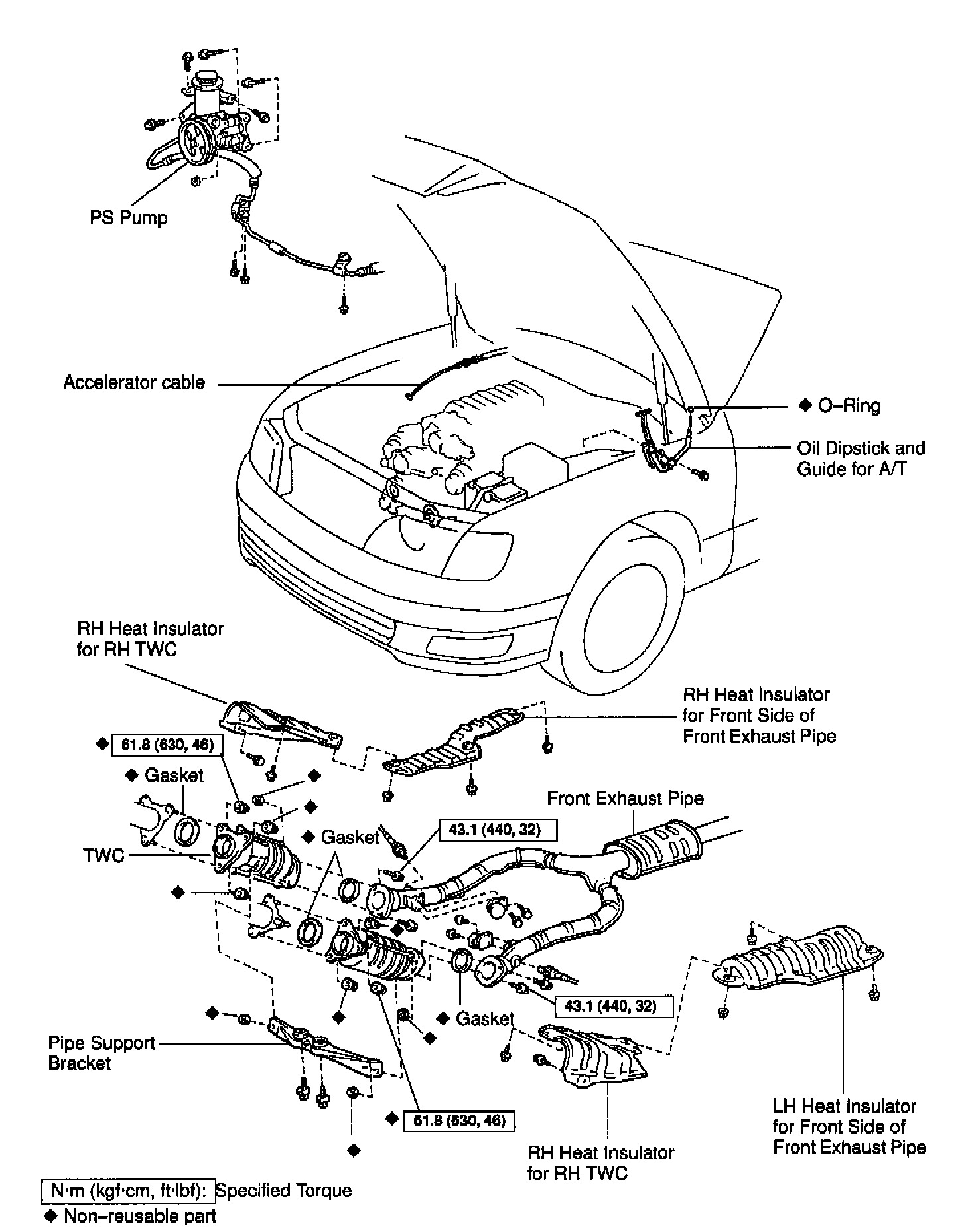

Part 4 of 7

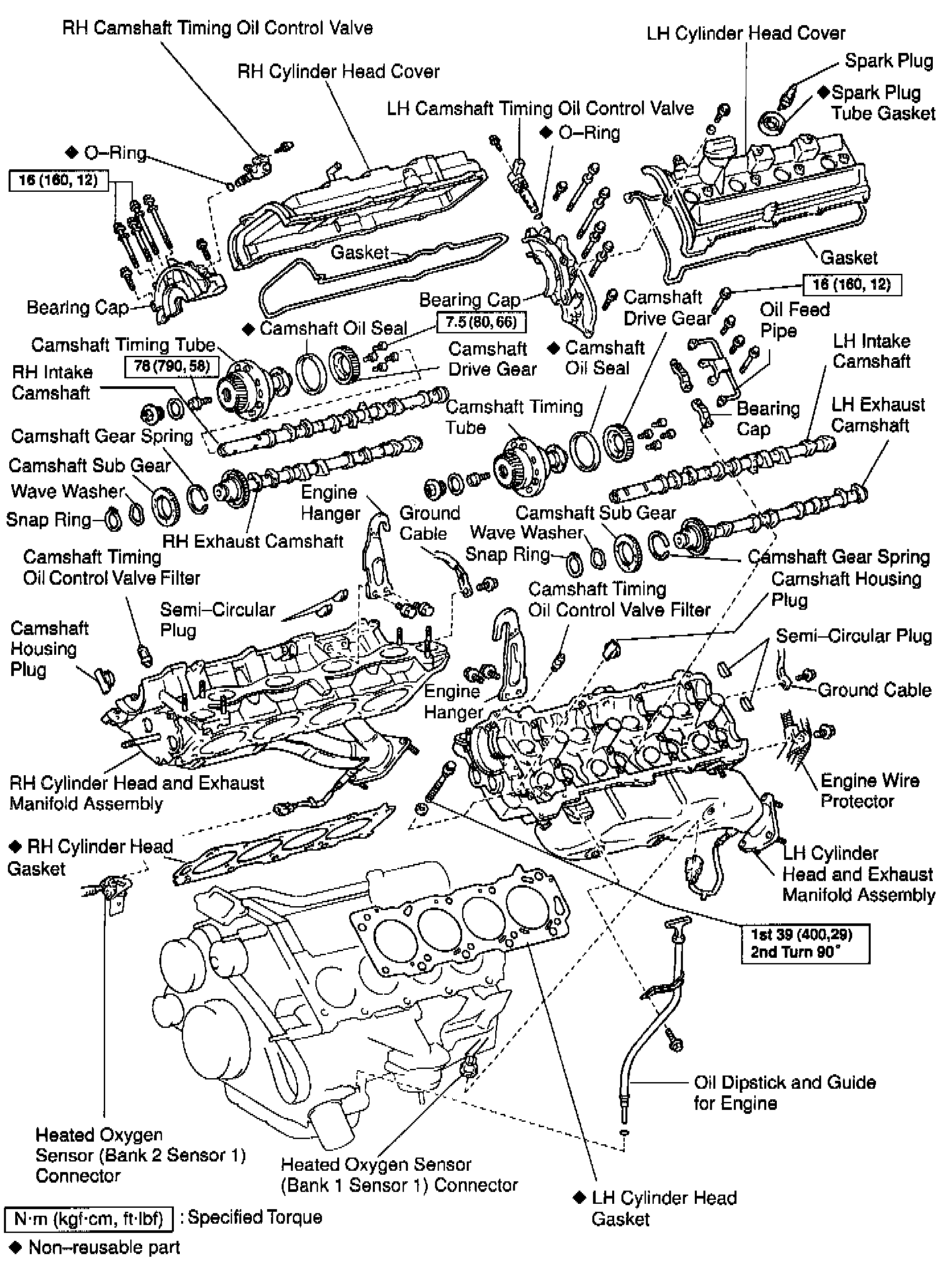

Part 5 of 7

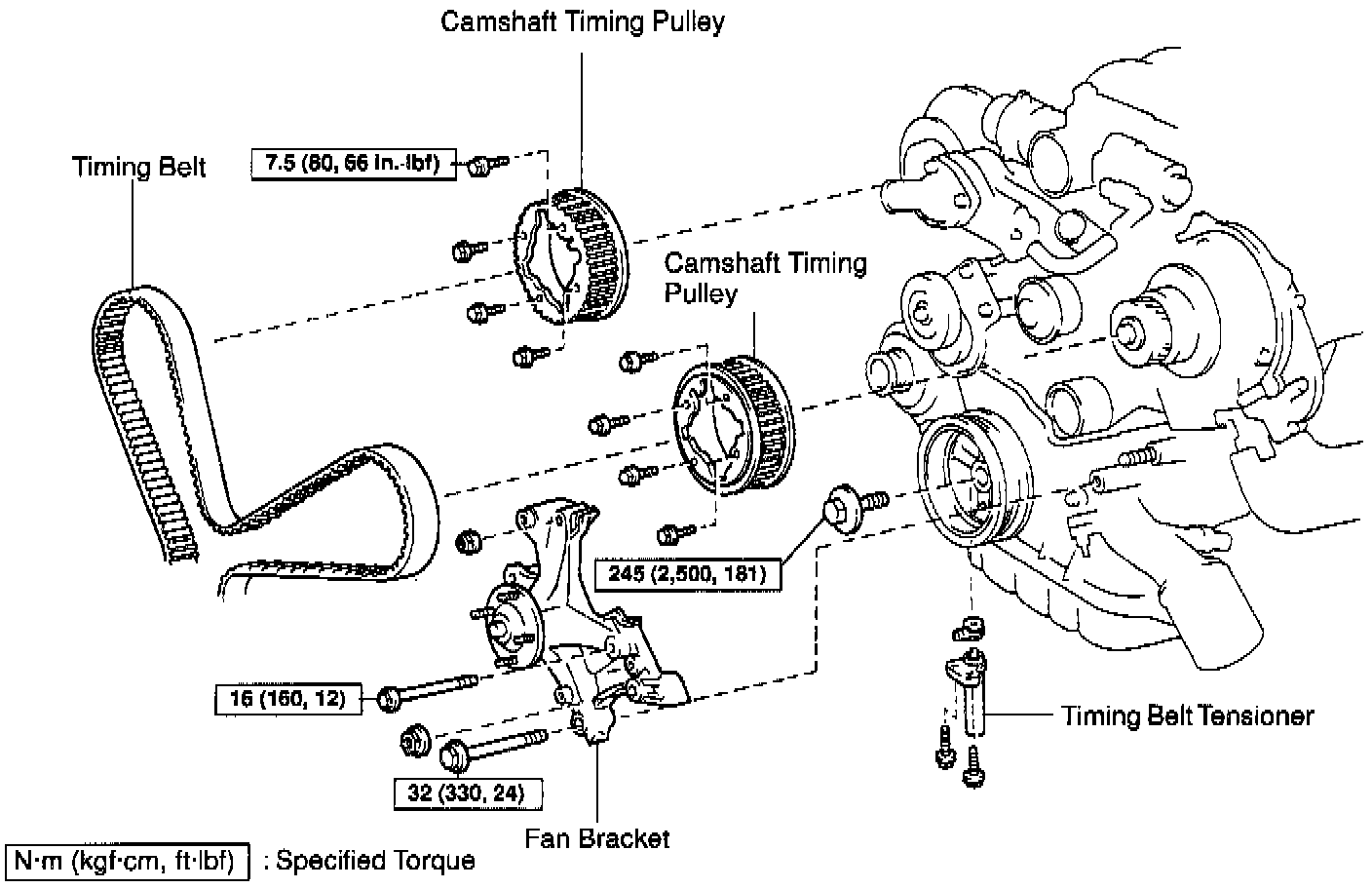

Part 6 of 7

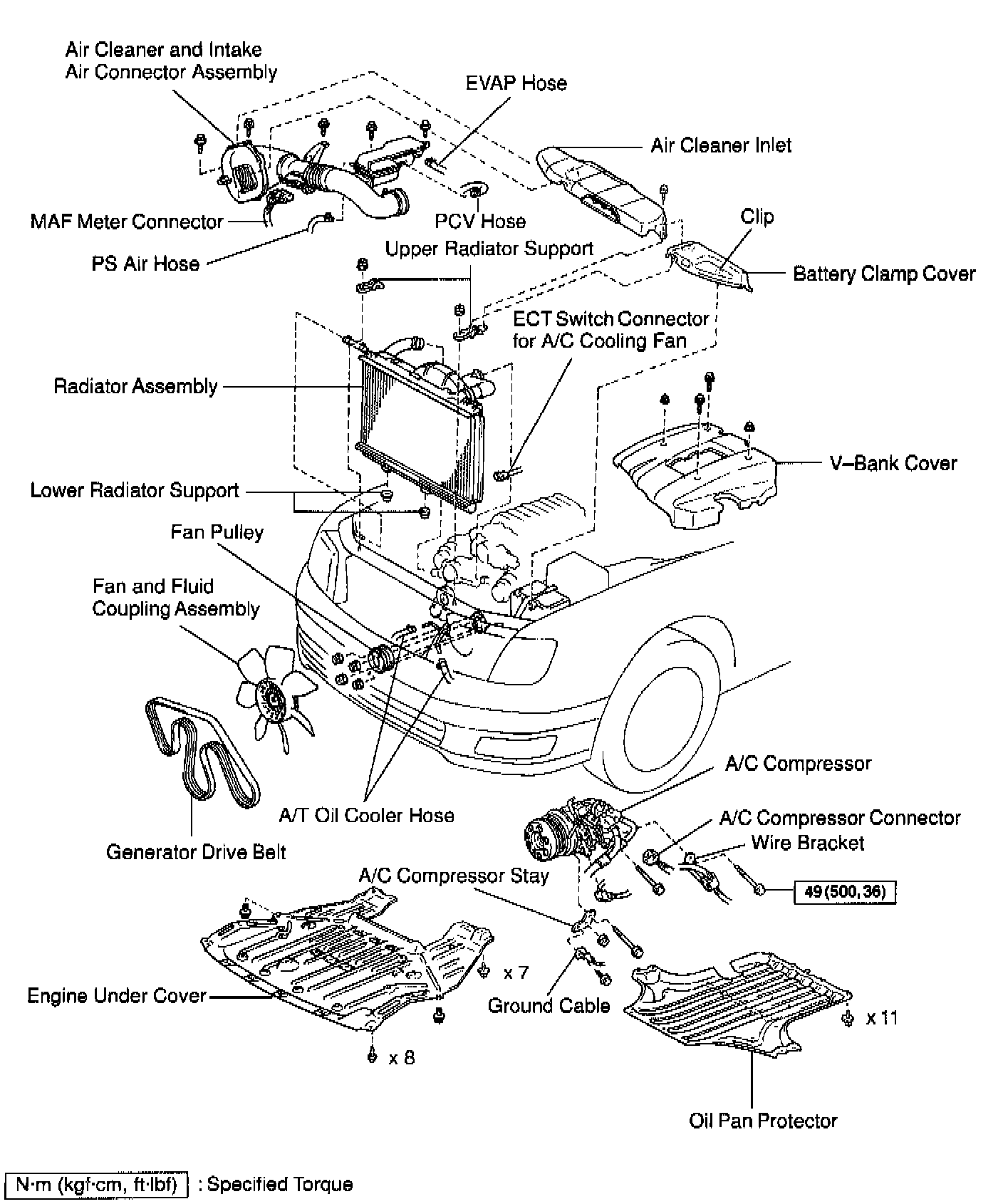

Part 7 of 7
