Variable Valve Timing Actuator: Service and Repair

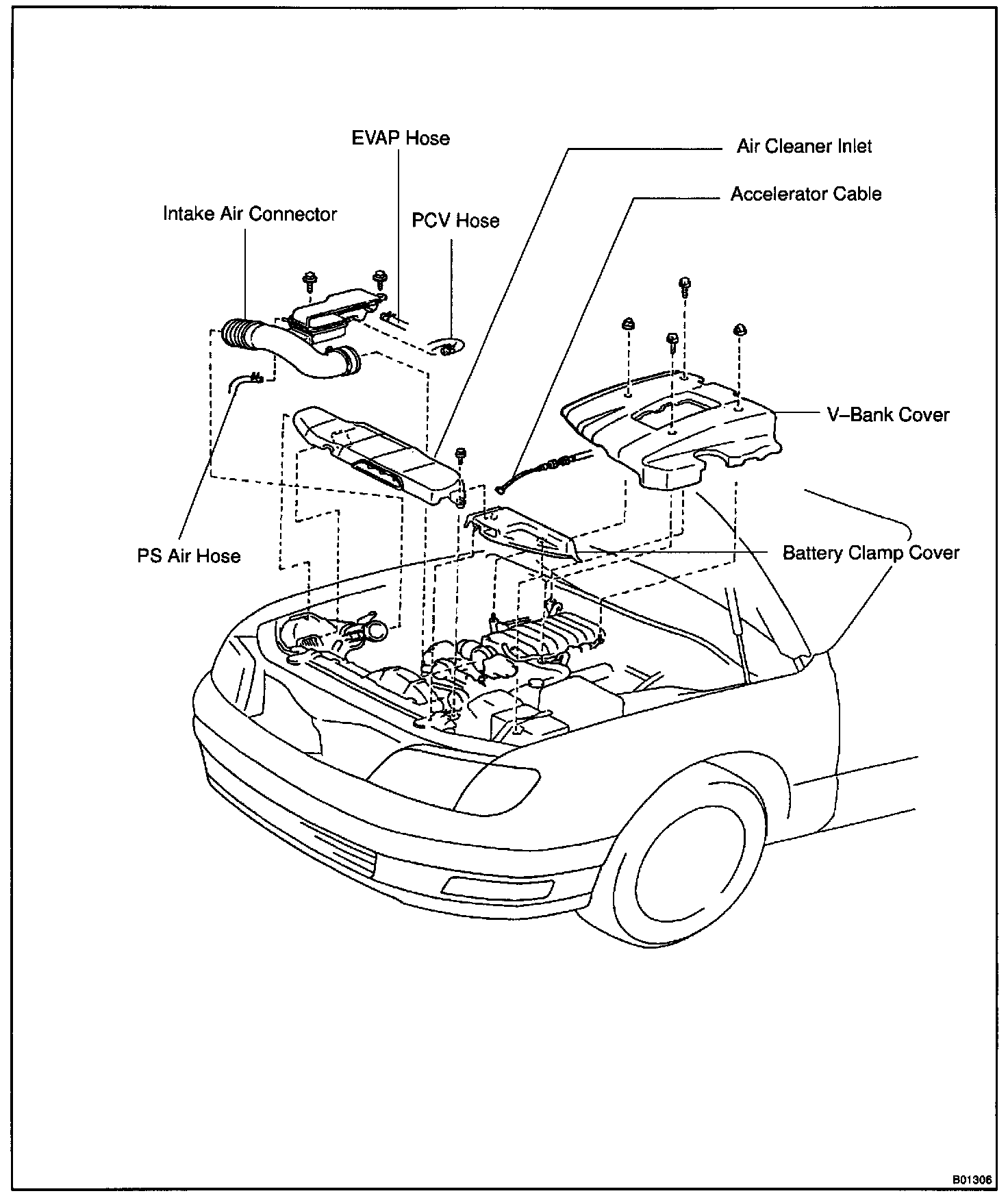

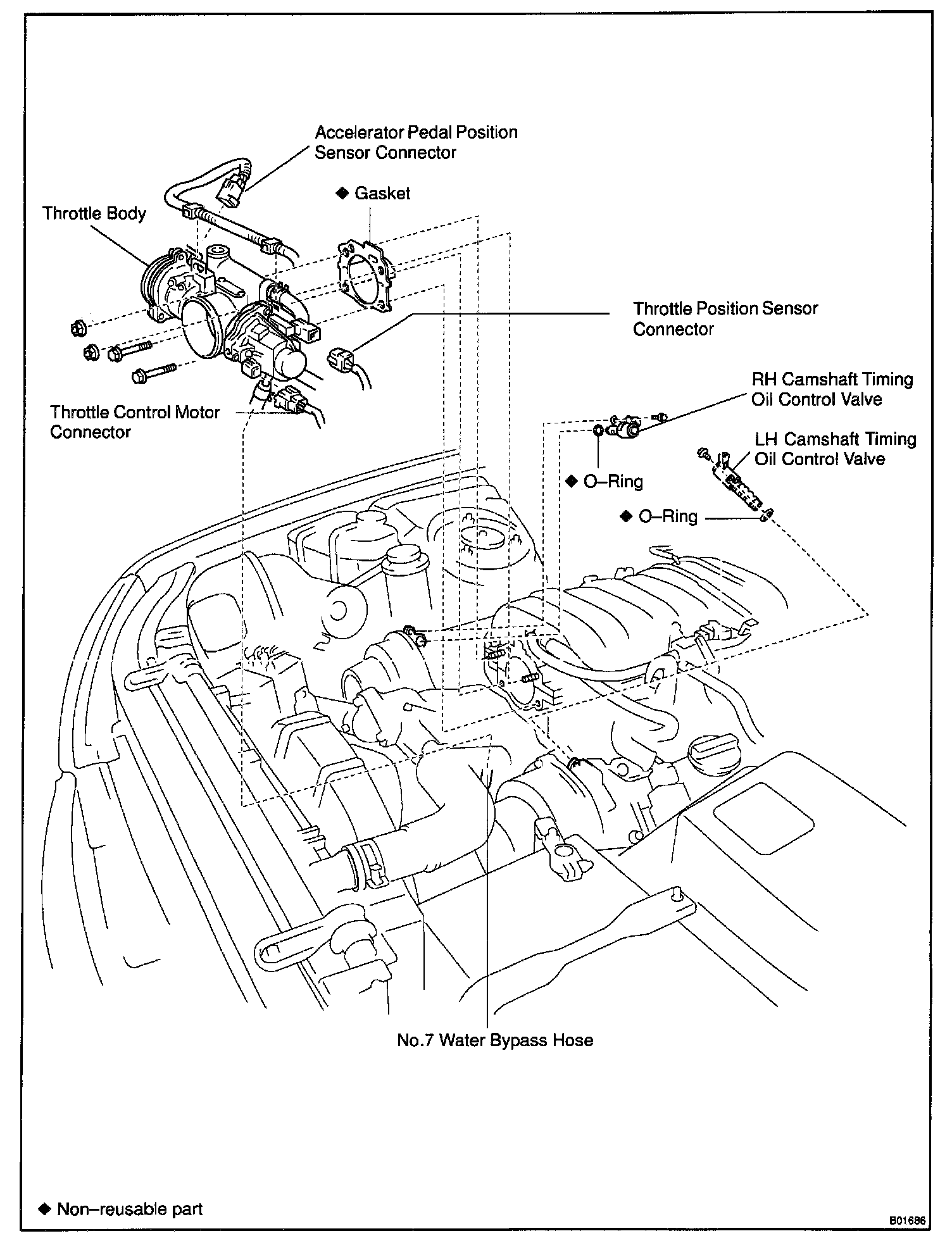

COMPONENTS

REMOVAL

1. REMOVE V-BANK COVER
2. REMOVE BATTERY CLAMP COVER, AIR CLEANER INLET AND INTAKE AIR CONNECTOR
3. DISCONNECT THROTTLE BODY FROM INTAKE MANIFOLD

4. REMOVE CAMSHAFT TIMING OIL CONTROL VALVE
a. Disconnect the 2 camshaft oil control valve connectors.




b. Remove the bolt, camshaft oil control valve and O-ring. Remove the 2 camshaft oil control valves.
Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

c. Remove the O-ring from the each camshaft oil control valve.

HINT: At the time of installation, please refer to the following items.
Use a new O-rings.

INSTALLATION
Installation is in the reverse order of removal.
