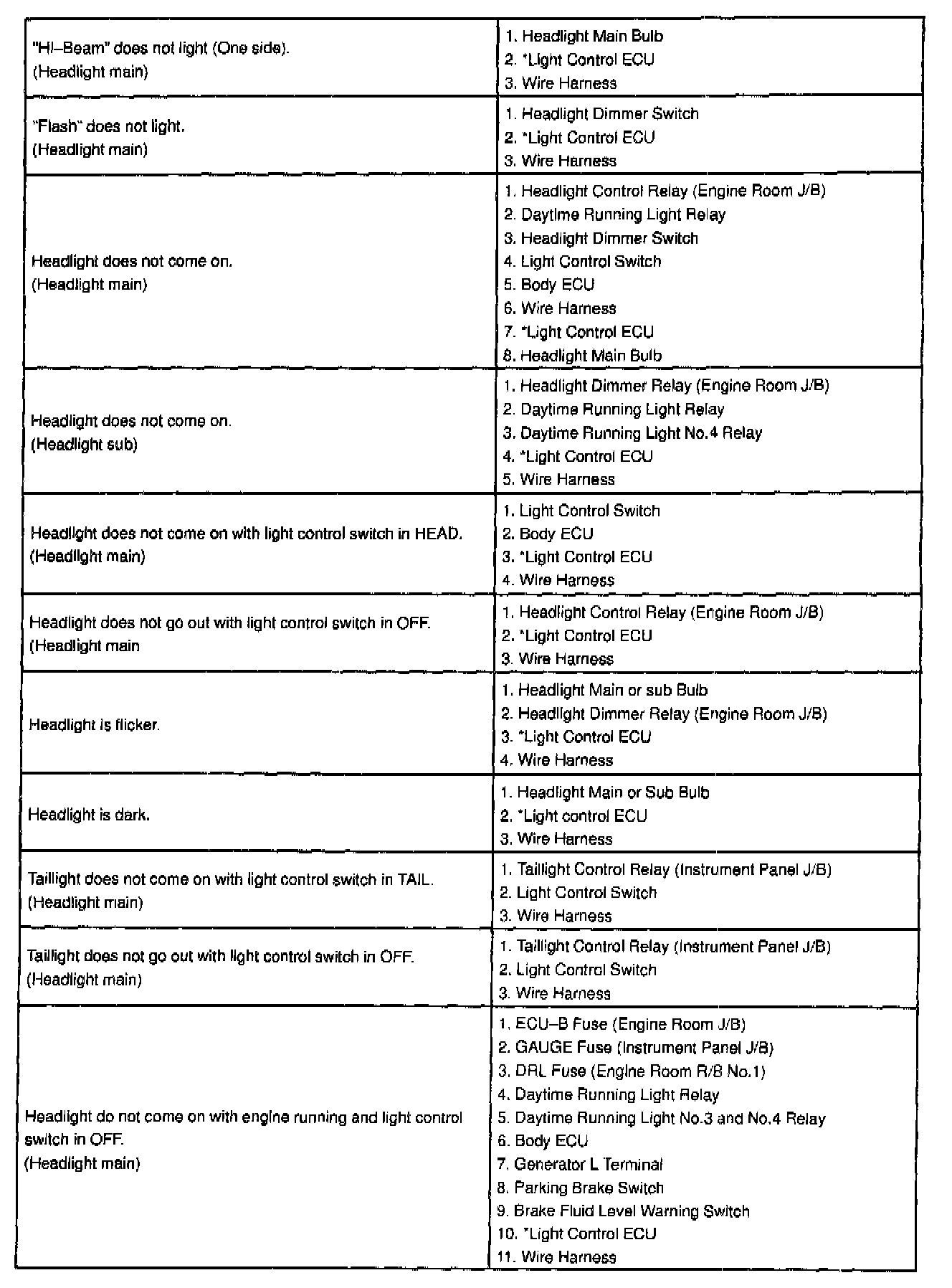

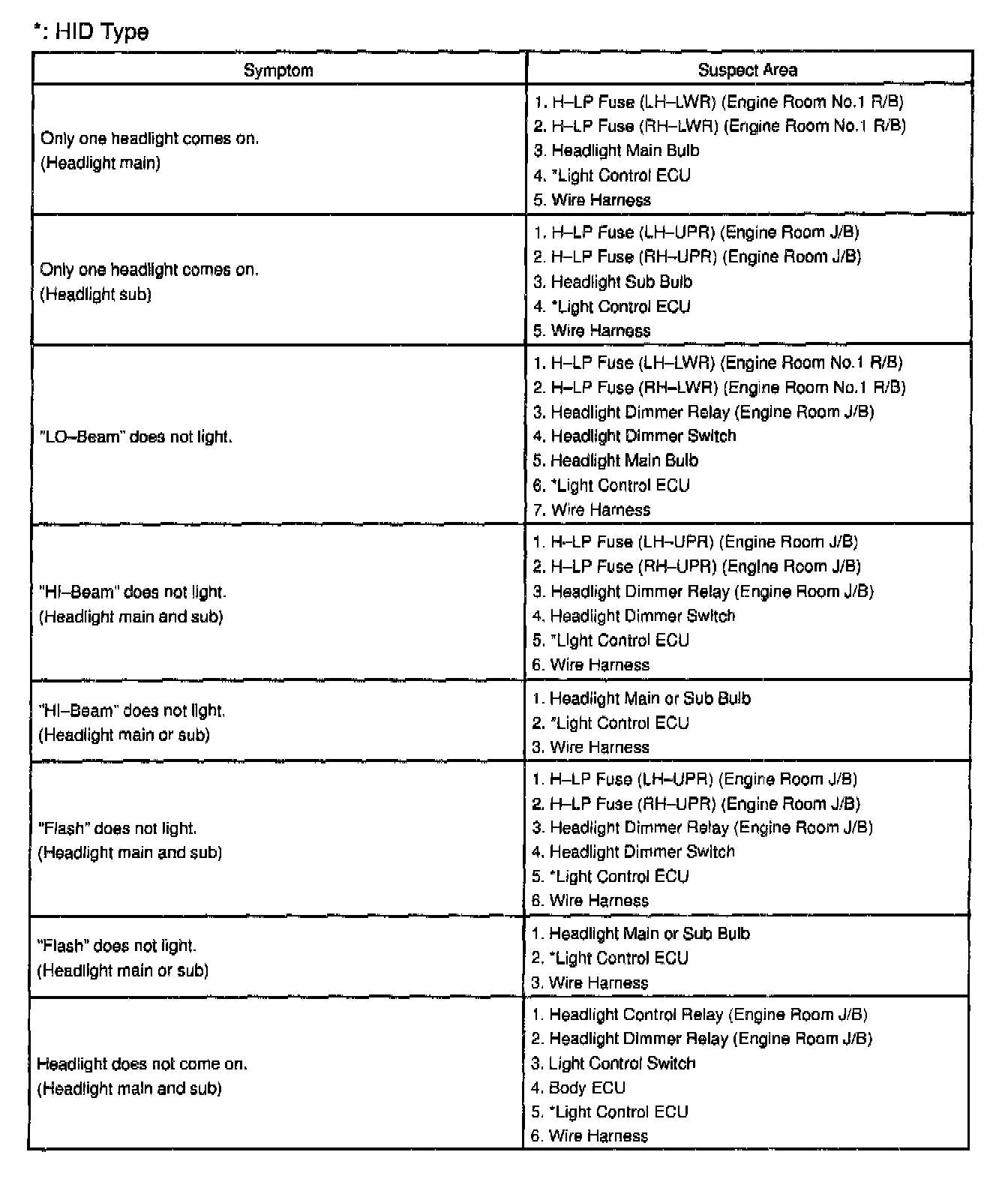

Headlamp Control Module: Testing and Inspection

This system uses the multiplex communication system, so check diagnosis system of the multiplex communication system before you proceed with troubleshooting.

HINT: To inspect the bulb and light control ECU, replace them with the ones working normally and judge whether they work normally or not.
