Engine Room Junction Block

Engine room junction block (J/B) is located on left inner panel, in engine compartment. See Fig 1.

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

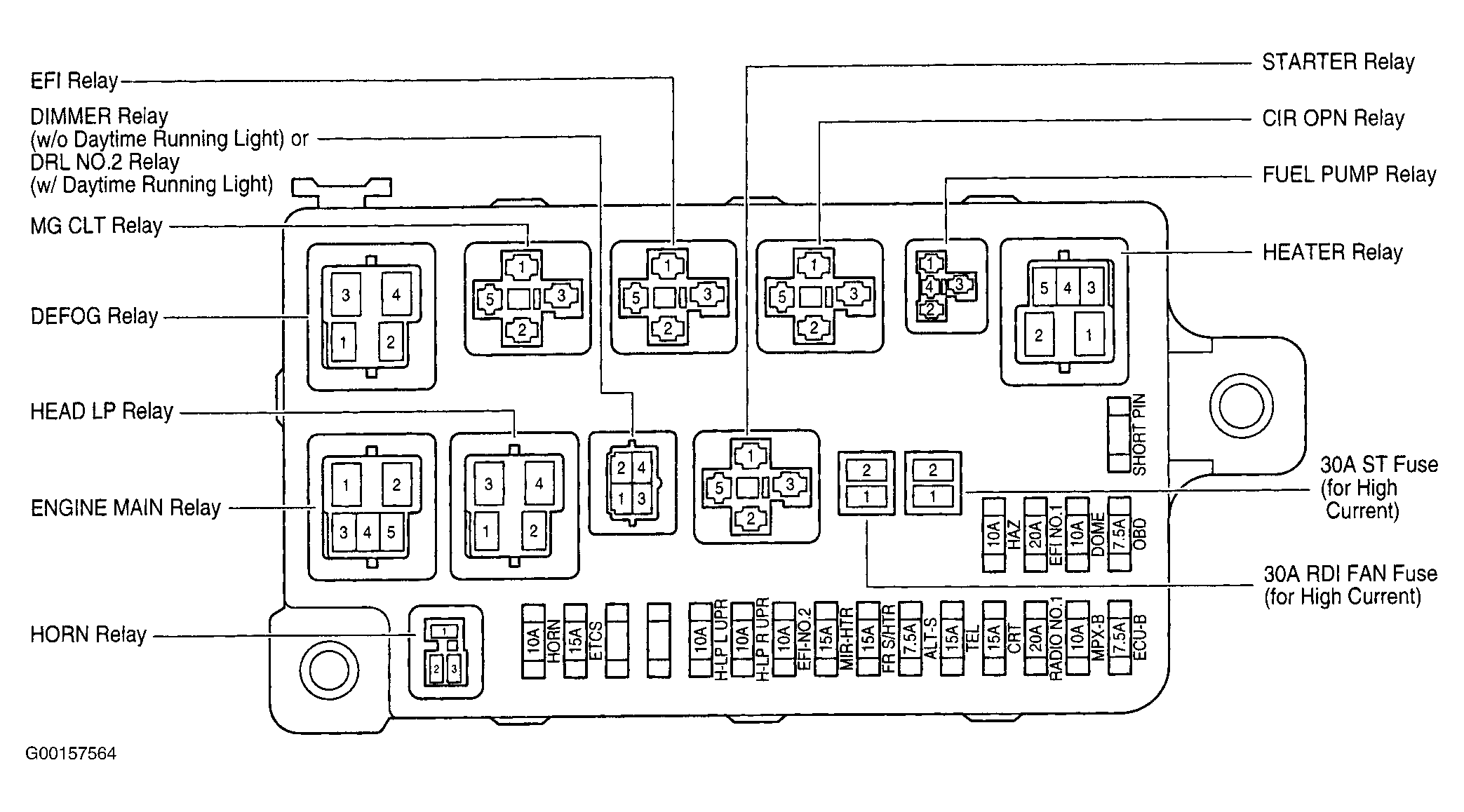

Fig 2: Identifying Engine Room Junction Block Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

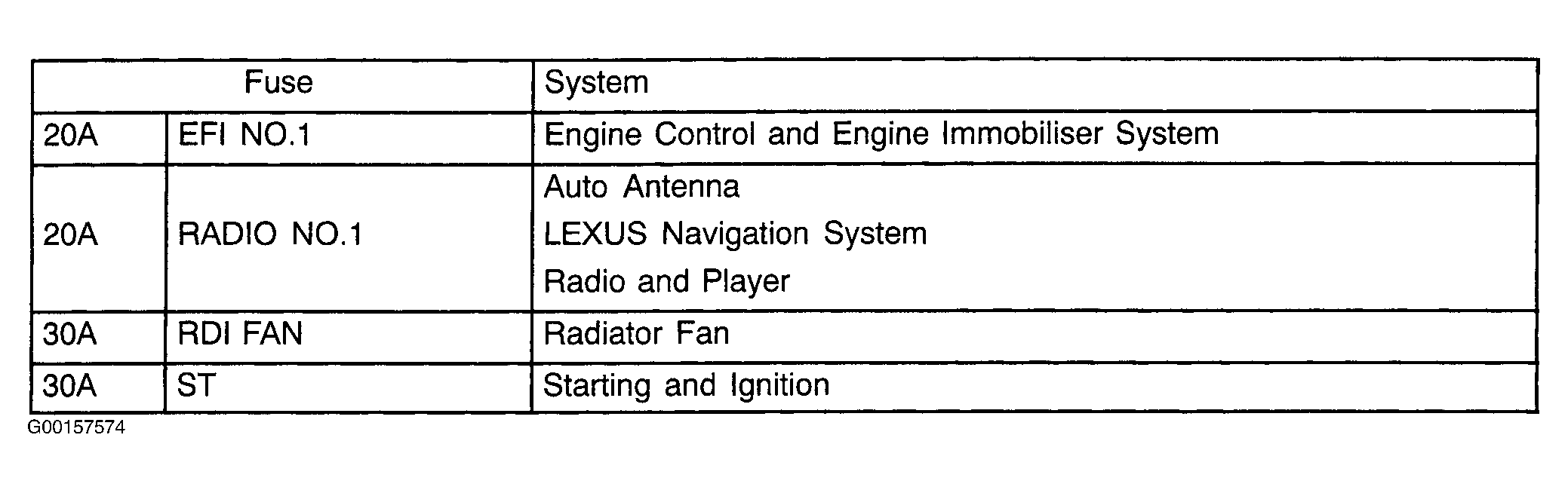

Fig 3: Engine Room Junction Block Legend (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

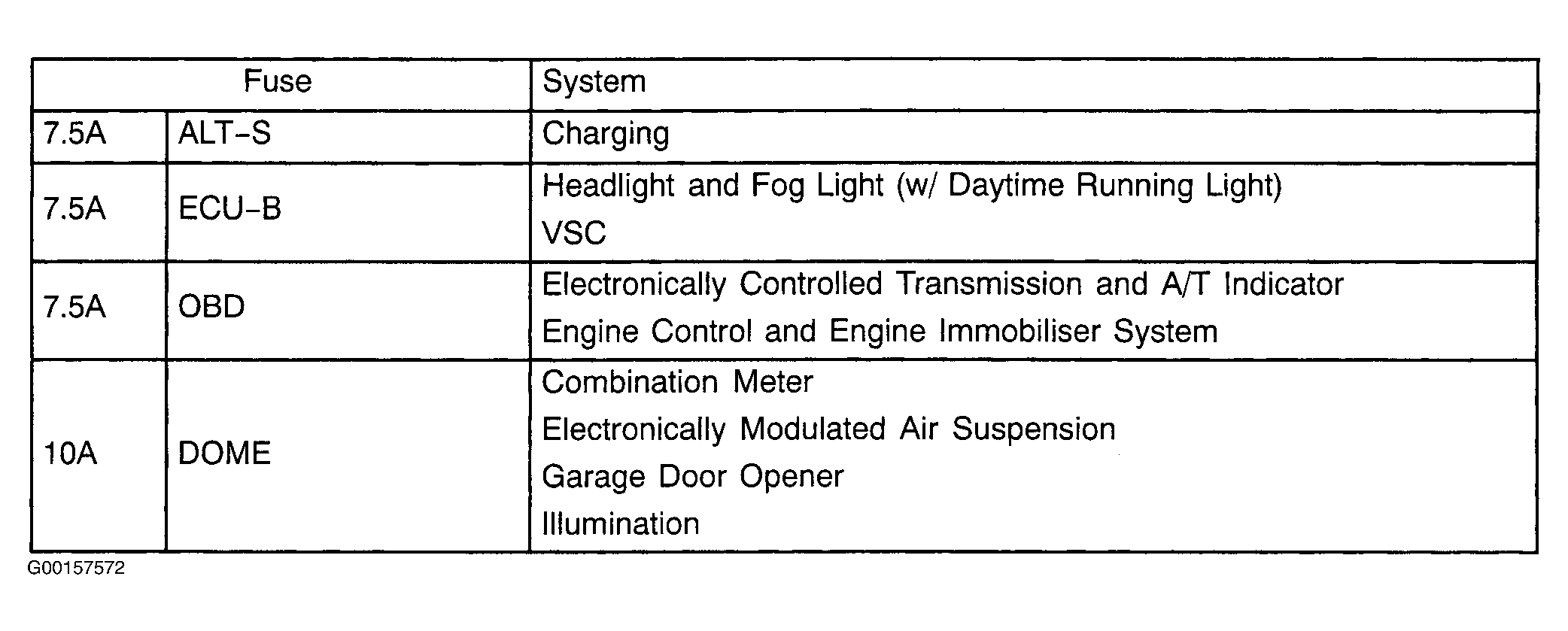

Fig 4: Engine Room Junction Block Legend (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

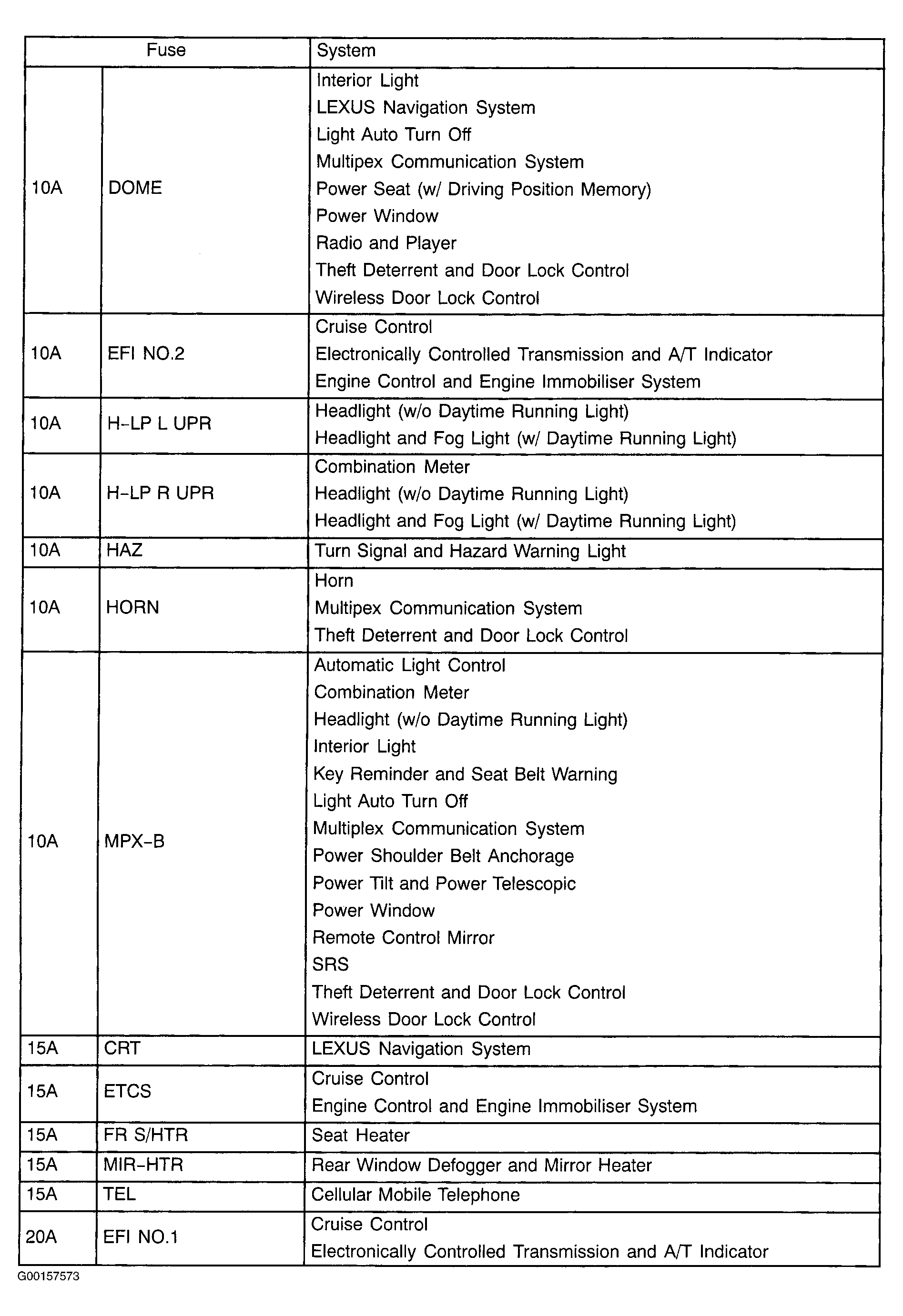

Fig 5: Engine Room Junction Block Legend (3 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
