Engine Room Relay Block

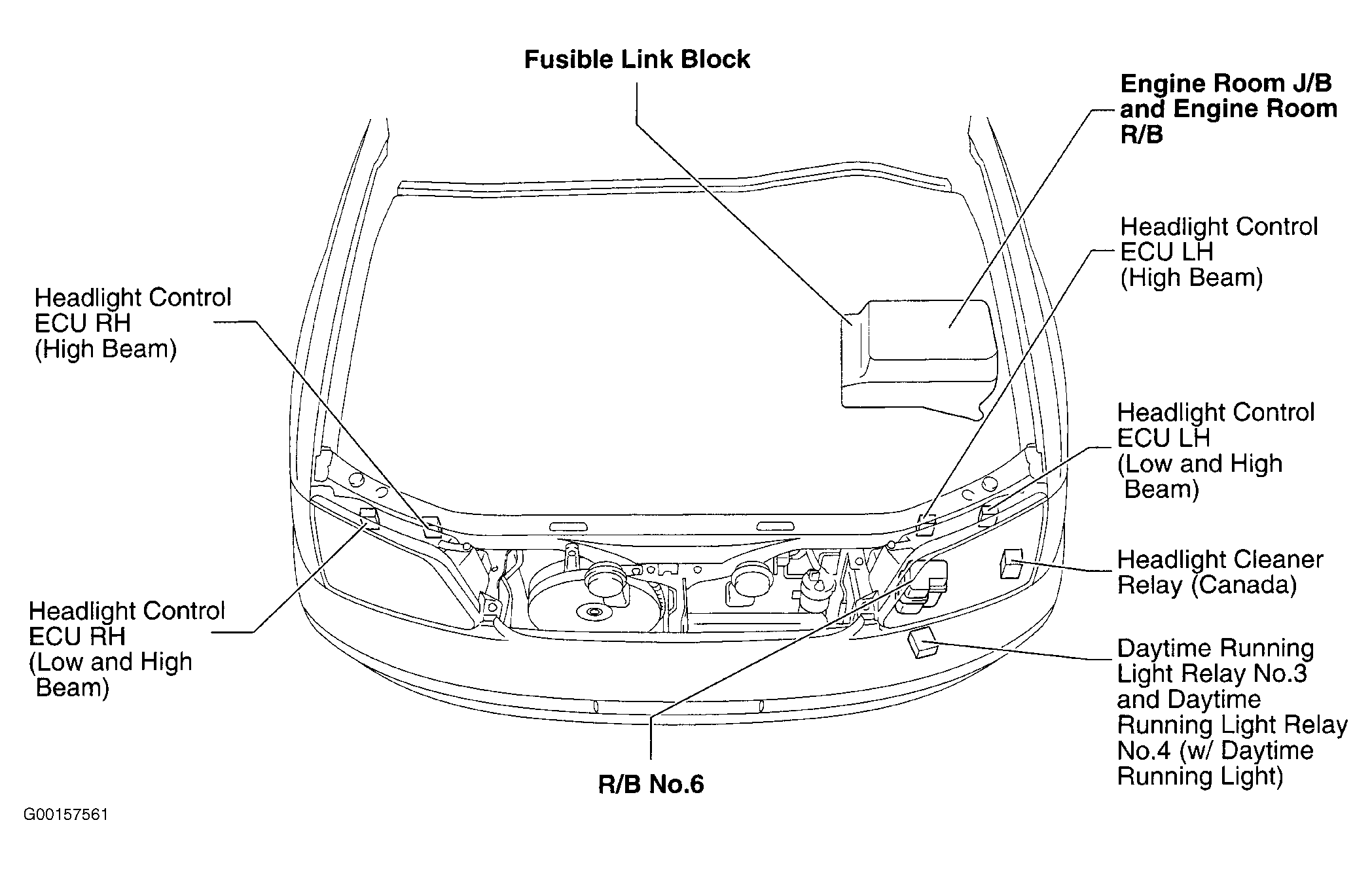

Engine room relay block (R/B) is located on left inner panel, in engine compartment. See Figure.

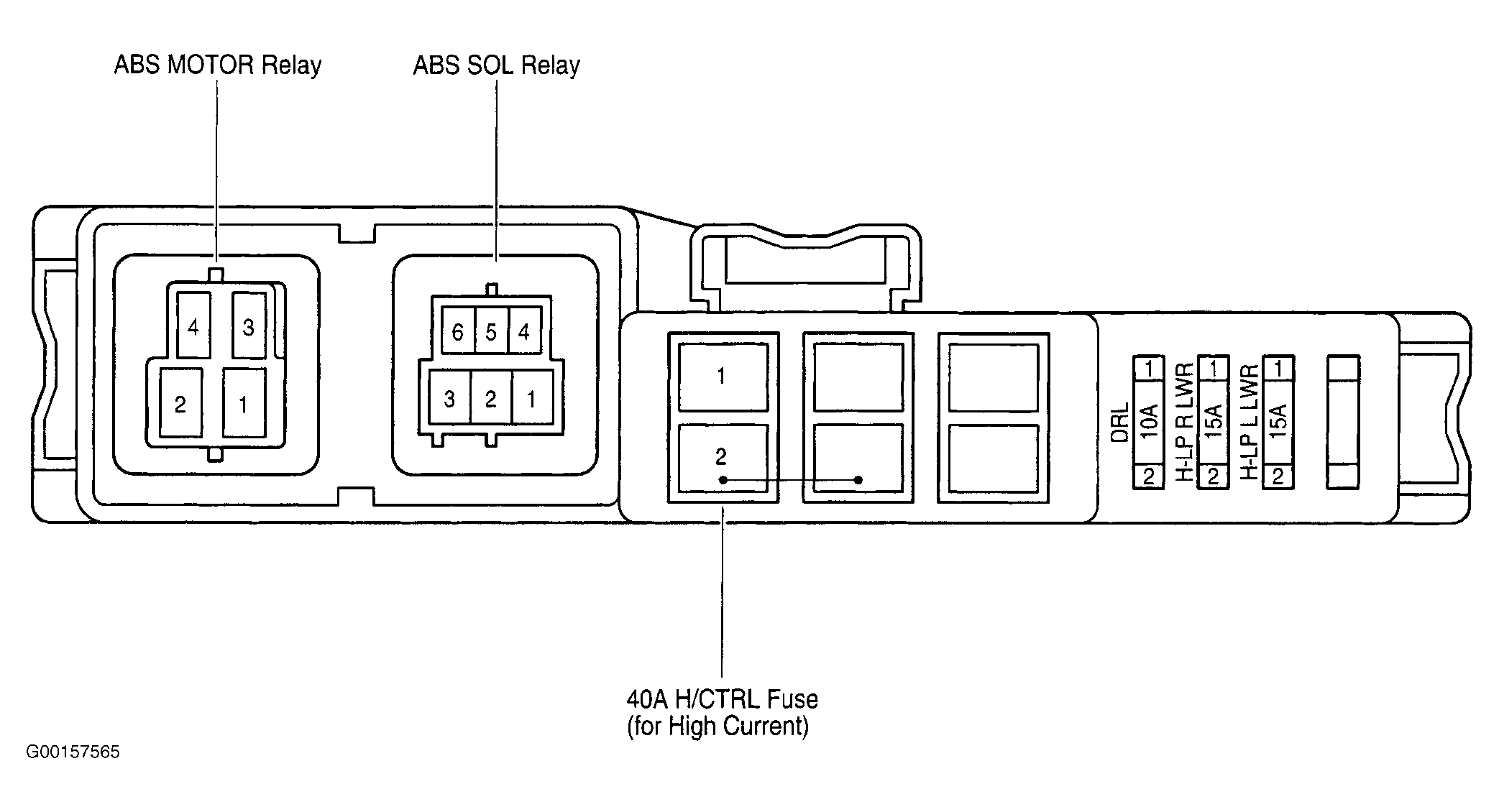

Fig 1: Identifying Engine Room Relay Block Fuses & Relays
G00157565Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

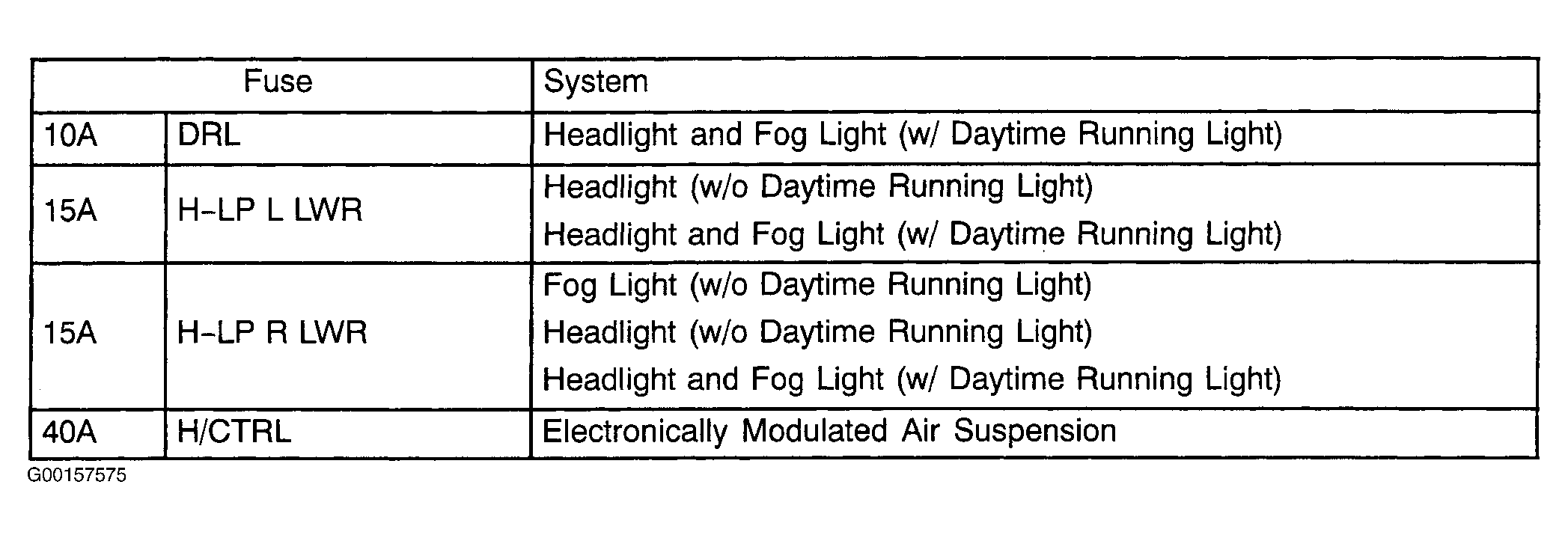

Fig 2: Engine Room Relay Block Legend
G00157575Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
