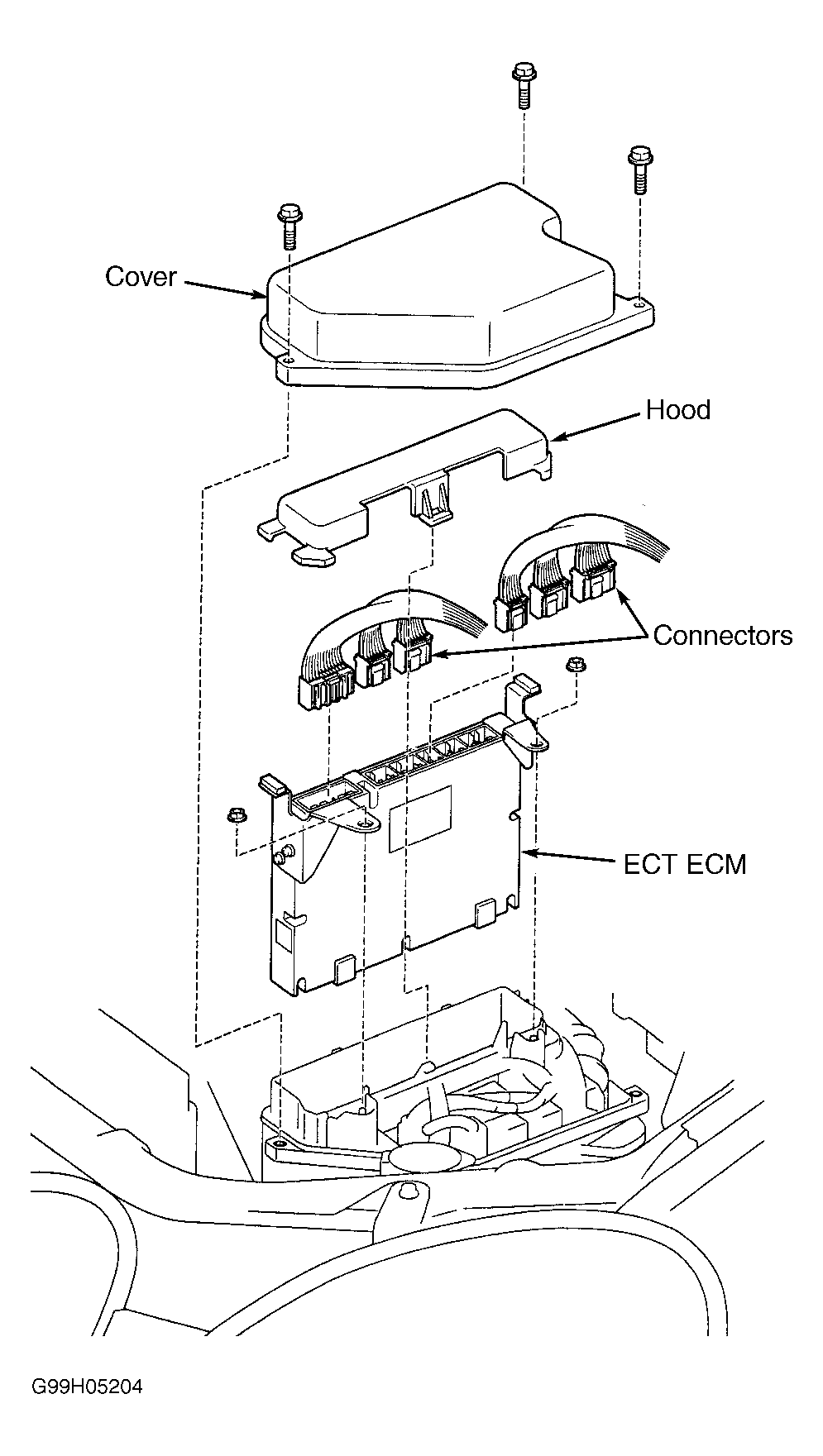

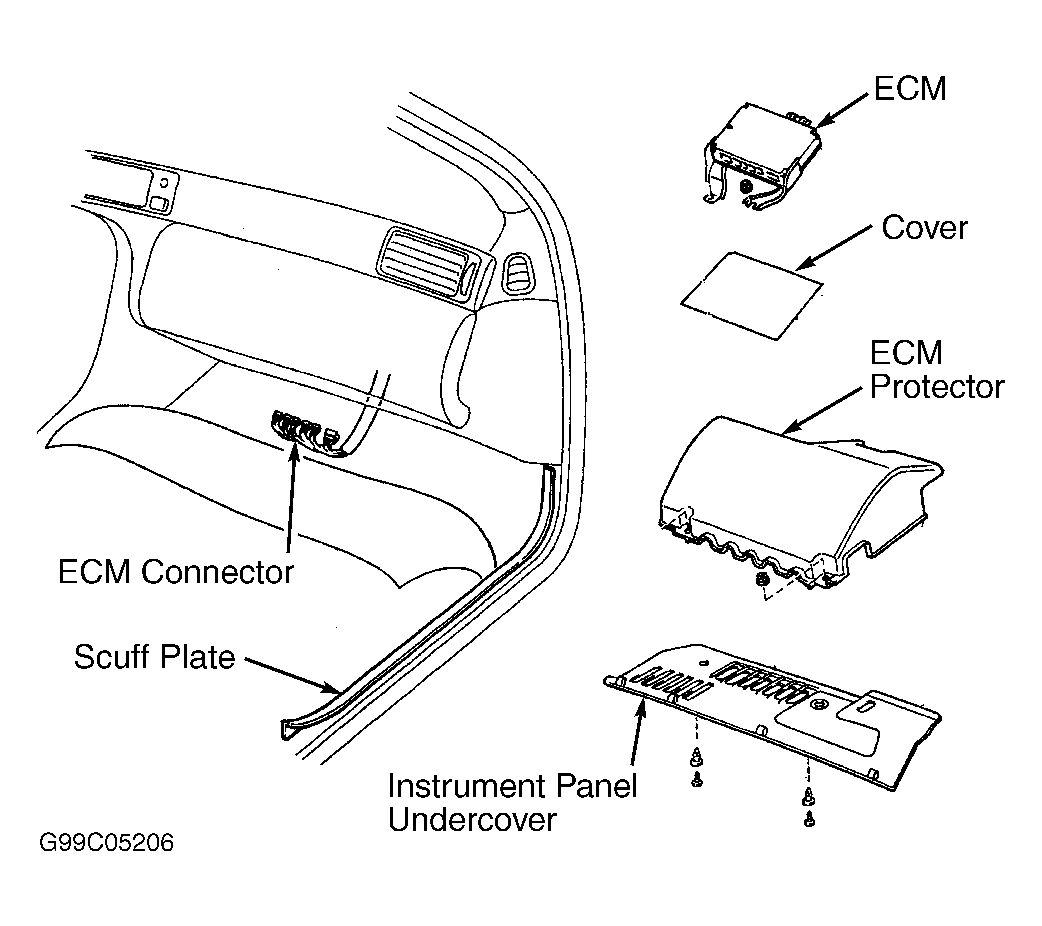

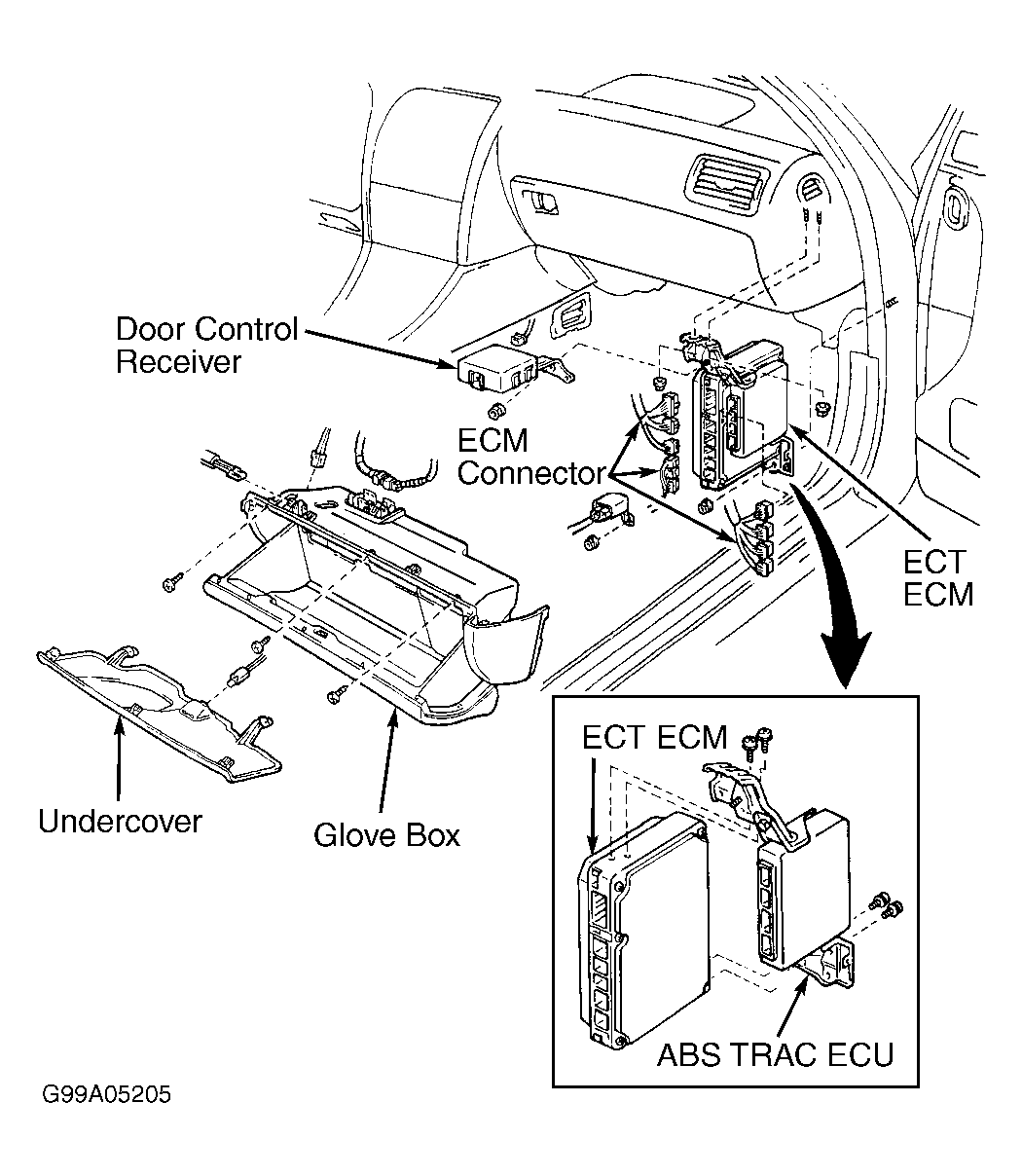

Ensure ignition is off. Disconnect negative battery cable. Remove protective covers and glove compartment (if applicable) to access ECM. See Fig 1, Fig 2 or Fig 3 . Disconnect connectors and remove ECM. To install, reverse removal procedure.
