Camshaft Position Sensor: Service and Repair

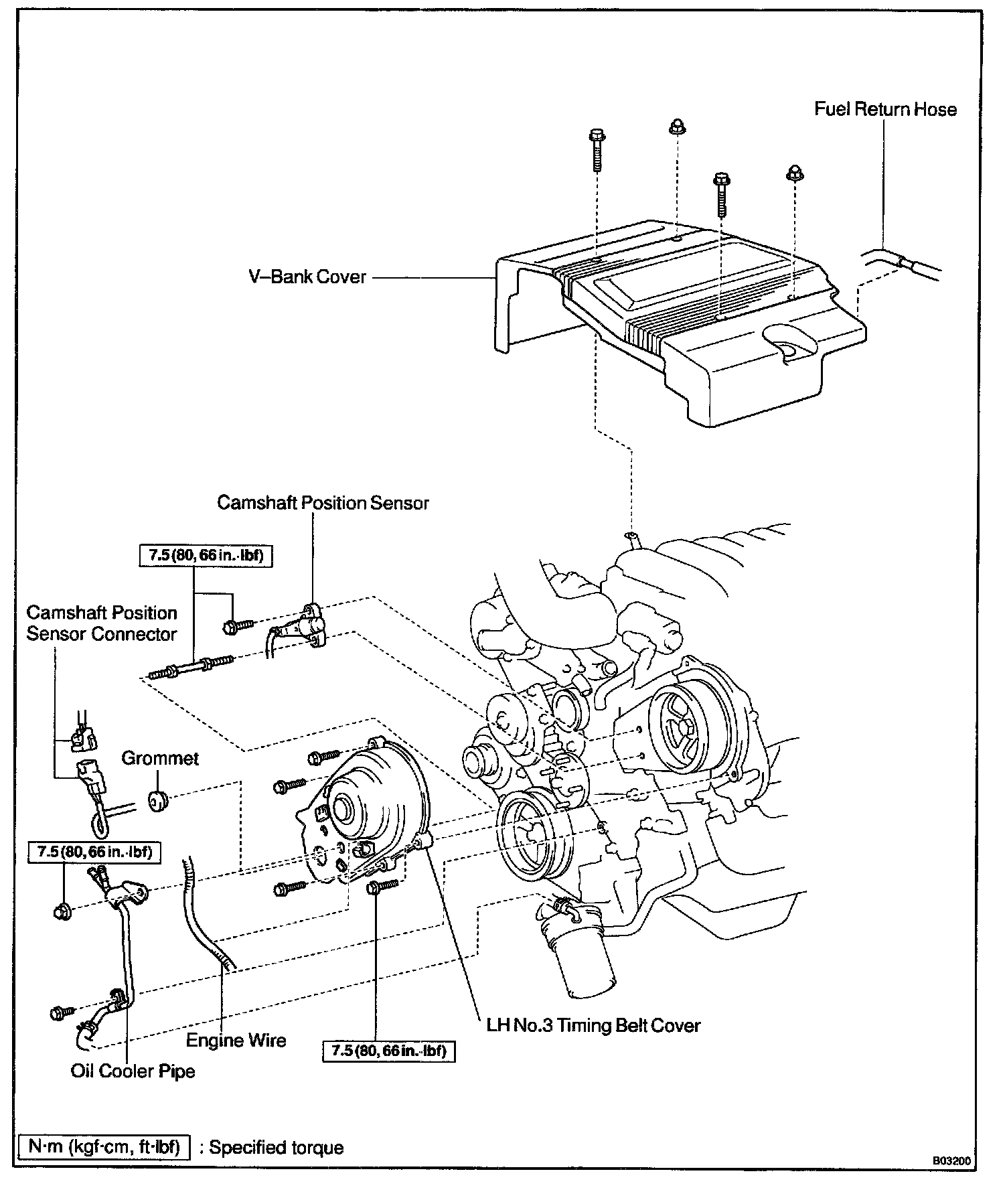

COMPONENTS

REMOVAL

1. REMOVE V-BANK COVER
2. DRAIN ENGINE COOLANT
3. DISCONNECT UPPER RADIATOR HOSE
4. REMOVE LH NO.3 TIMING BELT COVER




5. REMOVE CAMSHAFT POSITION SENSOR
Remove the bolt, stud bolt and camshaft position sensor.

INSTALLATION




1. INSTALL CAMSHAFT POSITION SENSOR
Install the camshaft position sensor with the bolt and stud bolt.

Torque: 7.5 Nm (80 kg.cm, 66 in.lb)

2. INSTALL LH NO.3 TIMING BELT COVER
3. CONNECT RADIATOR HOSE
4. INSTALL V-BANK COVER
5. FILL ENGINE COOLANT
6. CHECK ENGINE COOLANT FOR LEAKS
7. CHECK IGNITION TIMING
