Engine Compartment Fuses

Engine Room Junction Block (J/B) is located on left inner panel, in engine compartment. Fusible Link Block is located on left inner panel, near the Engine Room Junction Block (J/B). See Fig 1.

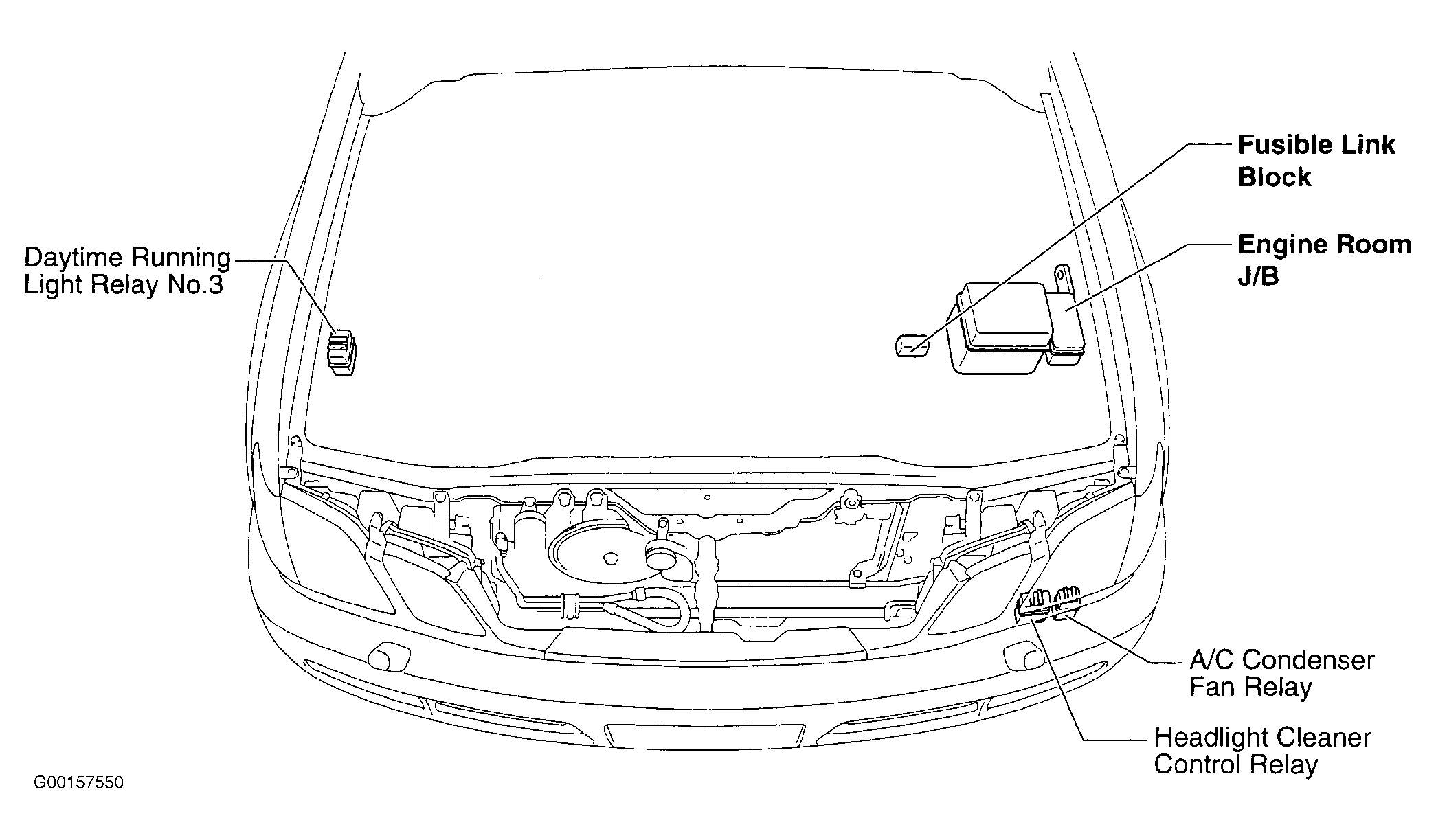

Fig 1: Locating Engine Compartment Electrical Components

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

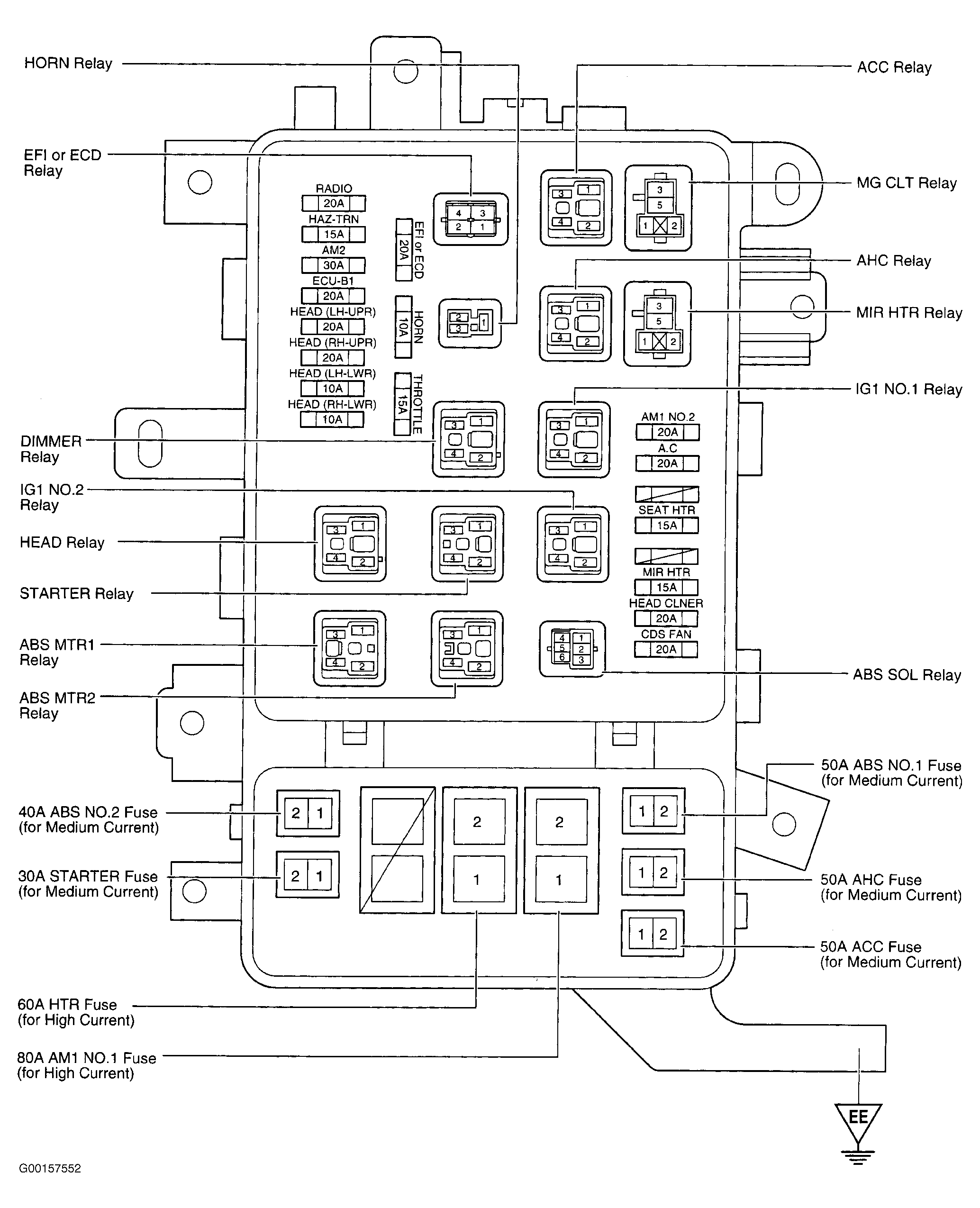

Fig 2: Identifying Engine Compartment Junction Block Fuses & Relays

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

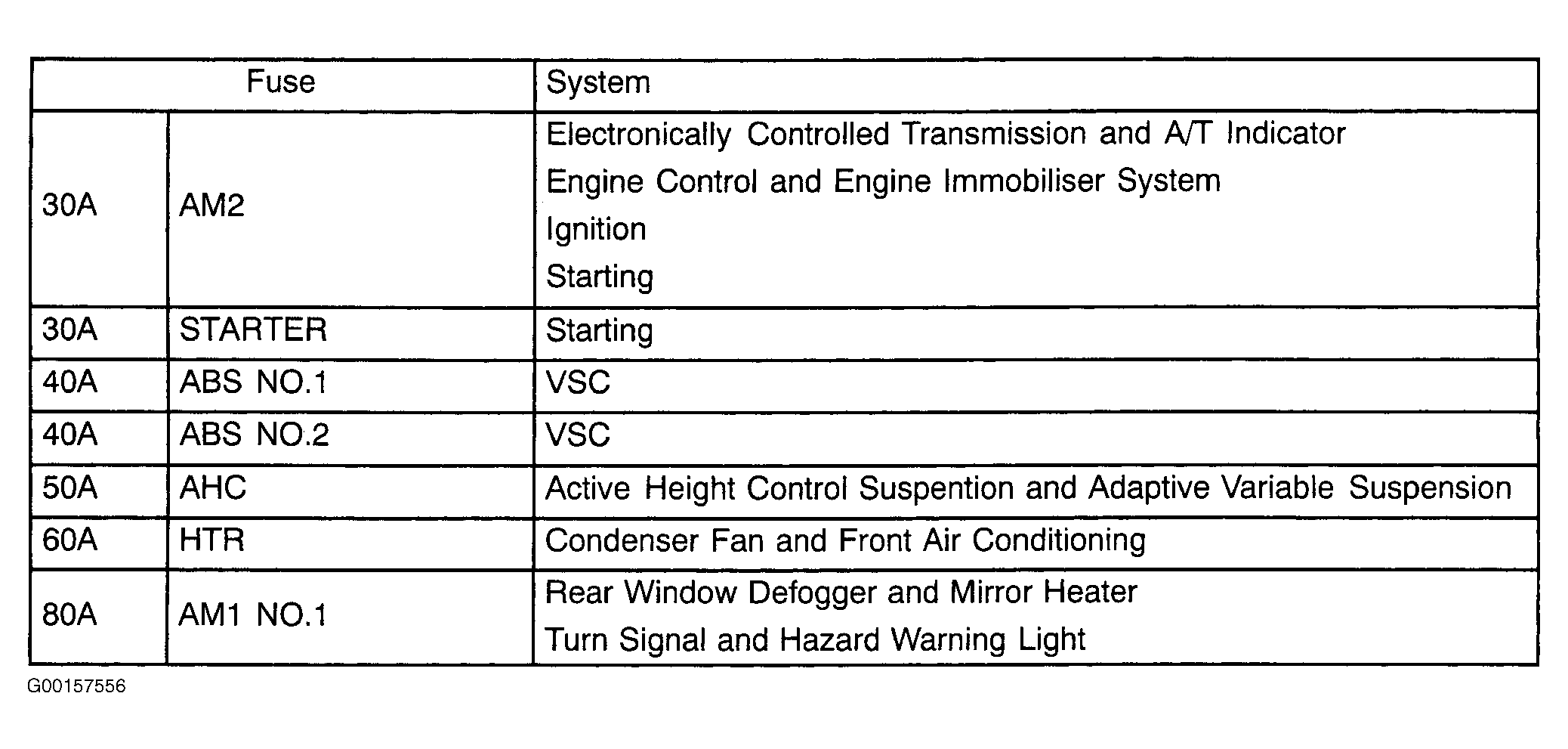

Fig 3: Engine Compartment Junction Block Legend (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

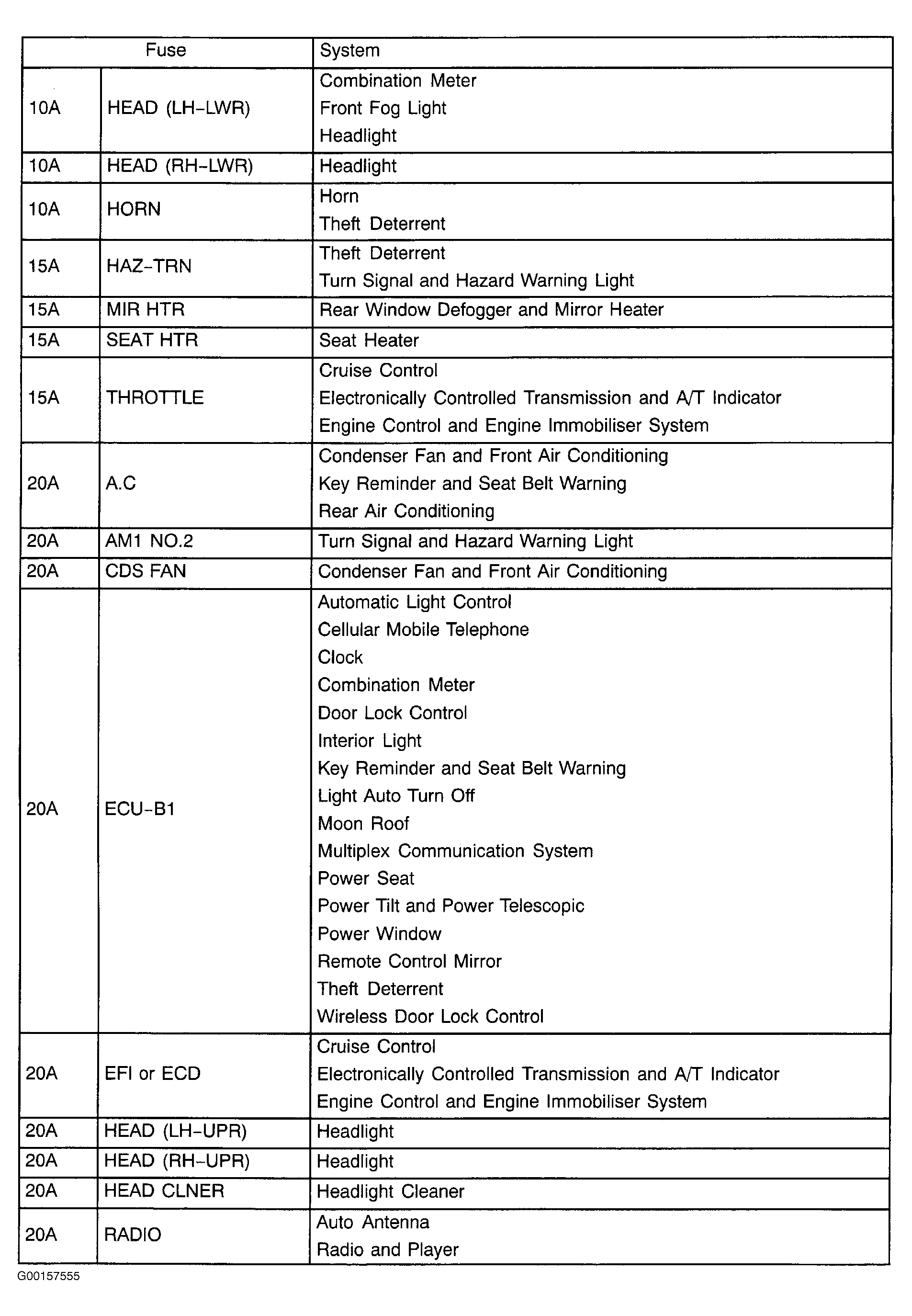

Fig 4: Engine Compartment Junction Block Legend (2 Of 2)

Fig 5: Identifying Fusible Link Block Fuses

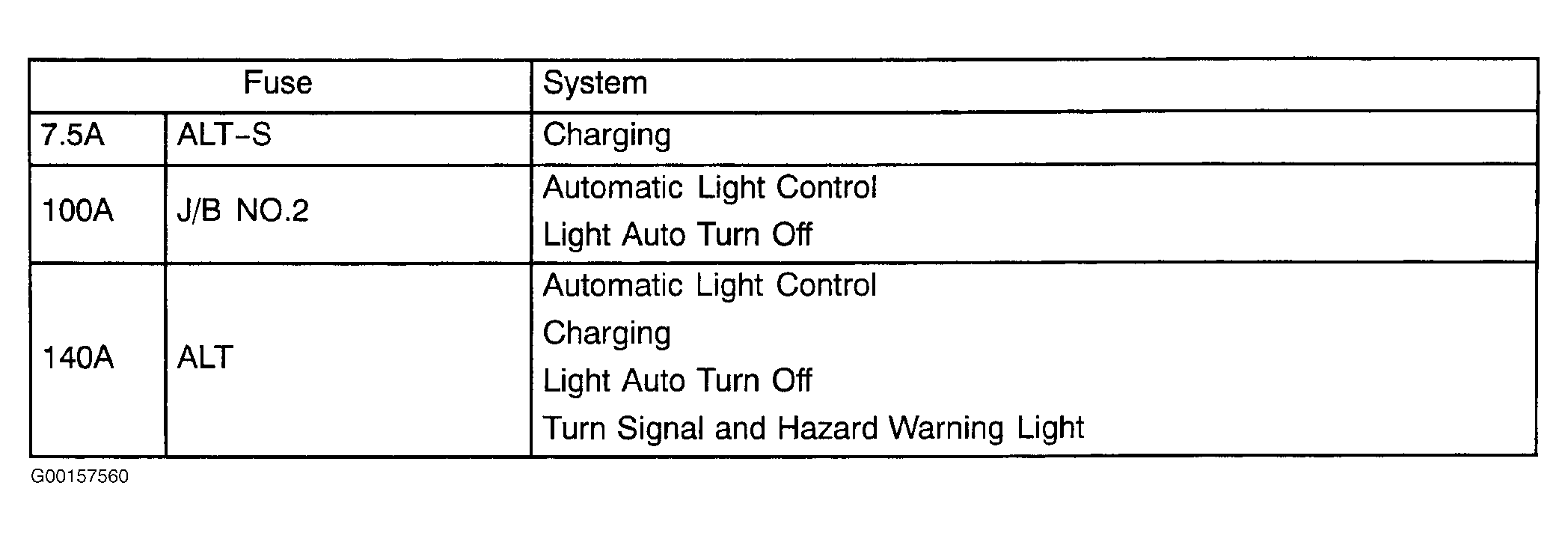

Fig 6: Fusible Link Block Legend
